Home > Products > Sand washing machine > Low Electric Consumption Wheel Mining Sand Washing Machine
Low Electric Consumption Wheel Mining Sand Washing Machine
- Shanghai Qingdao Dalian Shenzhen
- T/T L/C Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 11kw | Capacity(t/h) | 120-200 | |
| Place of Origin | Henan, China | Brand Name | Hongyun | |
| Model Number | XS3600 | Dimension(L*W*H) | 4420*2930*3800mm | |
| Weight | 9900kg | Certification | CE ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Wheel sand washing machine uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the wheel sand washing machine can be according to customers' requirements.
Product Description
Wheel sand washing machine
Specification
1, High-efficient
2, Adjustable sand size
3, Large capacity
4, Low consumption
Sand washing equipment models
Model | XS2600 | XS3000 | XS3600 |
Screw Dimension(mm) | 2600 | 3000 | 3600 |
Rotate Speed(r/min) | 1-2 | 0.8-1.5 | 0.8-1.2 |
Capacityt/h) | 20-50 | 50-100 | 120-200 |
Power(kw) | 5.5 | 7.5 | 11 |
Weight(kg) | 5600 | 8100 | 9900 |
Dimension(L*W*H)(mm) | 3520×2390×2690 | 3820×2640×3200 | 4420×2930×3800 |

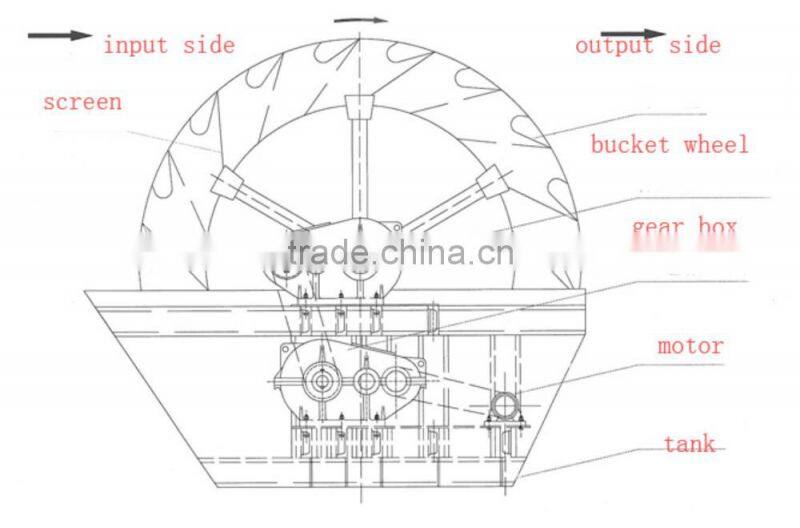

Structure of wheel sand washing machine
Sand washing is composed of gear, decelerator, bracket, setting chamber, impeller, belt pulley, electrical machinery and some important components.
Working principle of wheel sand washing machine
Sand washing not only can separate the contamination from the surface of the sand, but also can destroy the water vapor layer which on the outside of the sand material. Besides, it can clean the silver sand efficiently.
Advantage of wheel sand washing machine
1, Strong ability to work, strong adaptability, strong throughput
2, Adopt wear resistant material, high usability of the components, long service time
3,Simple structure, stable operation, easy to operate, new worker can quickly get started, safe and reliable
4, Sealed bearing, avoiding the main transmission parts contract with material and water, reducing the breakdown of components and the risk of rust
5, After washing, the material can achieve the classification of granularity and product specification
Wheel sand washing machine working plant
