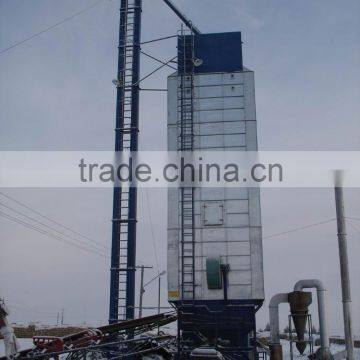

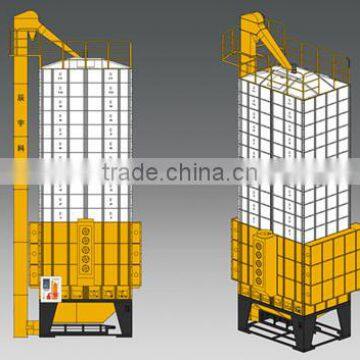

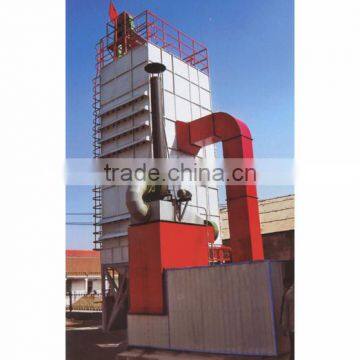

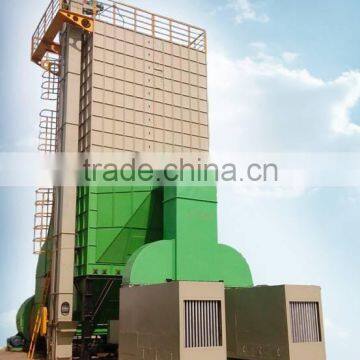

Drying machine | rice grain dryer adoprting low temperature circulating technology
It is mainly used for rice, corn, wheat, sorghum, soybean, rapeseed and other granular food and economic crop though low temperature air to reach desiccation.
Grain dryer is mainly composed of feeding device, bucket conveyor, drying box, precipitator, efficient hot blast stove, draught fan, online thermometer, rapid water meter, electrical control system and other systems. Among them, the hot blast stove can be used separately drying chili, cowpea, honeysuckle, vegetables and other sticks or block materials. In a word: multi-usage.
Grain dryer can guarantee the quality of crops by using circulation drying method. Circulation drying method refers to work circularly among down-flow, counter flow and mixed flow which can effectively control drying chamber’s temperature to make all the crops have enough contact with airflow.
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience. It has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and faces customers with highly dedicated spirit. It is constantly rated “advanced quality management enterprise” and “value-contract and keep-credibility enterprise” for many years.
| Model | HY-1.2-8 | HY-1.6-8 | HY-2-8 | HY-2-10 | |
| Number of element | 4 | 4 | 4 | 5 | |
| Belt width (m) | 1.2 | 1.6 | 2 | ||
| Drying section length (m) | 8 | 8 | 8 | 10 | |
| Spreading thickness (mm) | 10-80 | ||||
| Operation temperature(℃) | 50-120 | ||||
| Steam pressure(Mpa) | 0.2-0.6 | ||||
| Steam consumption(Kg/h) | 120-130 | 150-375 | 180-500 | 225-600 | |
| Heat transfer area(m2) | 272 | 352 | 448 | 560 | |
| Drying time(h) | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.5 | |
| Drying intensity(Kg /h ) | 60-160 | 75-220 | 100-260 | 120-300 | |
| The fan number | 5 | 5 | 5 | 6 | |
| Total power of the device(kw) | 8.5 | 15.5 | 22 | 27 | |
| Dimension | Length(m) | 2 | 2.3 | 2.3 | 2.3 |
| Width(m) | 2 | 2.3 | 2.5 | 2.9 | |
| Height(m) | 7.2 | 9 | 12 | 12 | |
| Gross weight(t) | 5 | 6 | 8 | 12 | |
Q: Are you factory or Trade Company?
We are professional machinery manufacturer with 30 years of experiences.
Compare with the trade company, we can provide you quality machines with cost-effective price, on-site installation, perfect after-sale service, and spare parts of the machine to ensure the continuous production.
Q: Can we visit your factory? How can we get to your factory?
Yes, of course. You are always welcome to visit our factory, we can show you any of our live production site to give you clearer image of our machines.
You can take plane to Zhengzhou Xinzheng International Airport, we can pick you up there.
