Application:
Grain dryer is mainly used for rice, corn, wheat, sorghum, soybean, rapeseed and other granular food and economic crop through low temperature air to dry.
Structure characteristics:

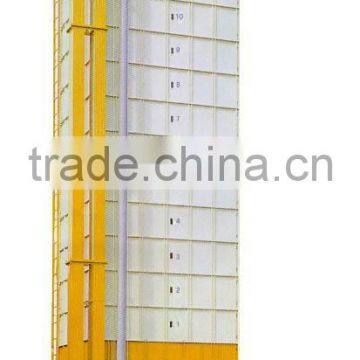

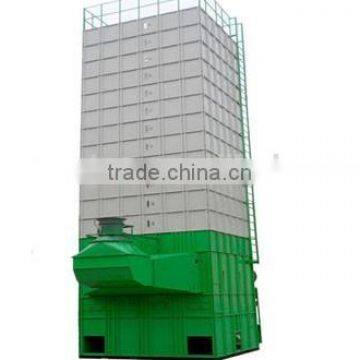

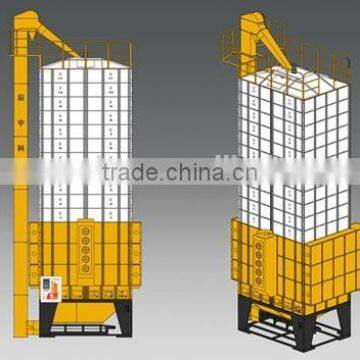

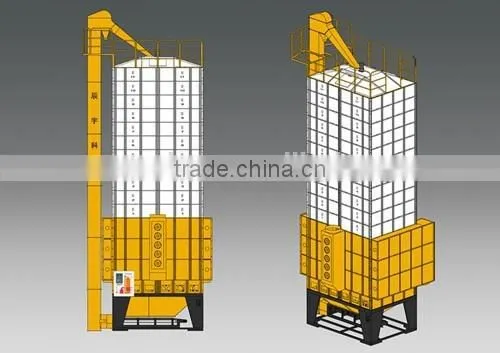

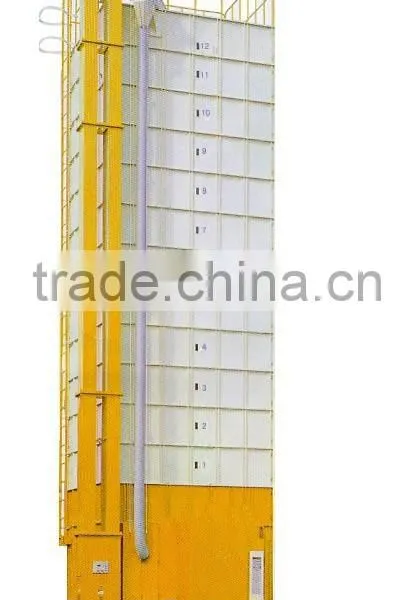

Grain dryer is mainly composed of feeding device, bucket conveyor, drying box, precipitator, efficient hot blast stove, draught fan, online thermometer, rapid water meter, electrical control system and other systems. Among them, the hot blast stove can be used separately drying chili, cowpea, honeysuckle, vegetables and other sticks or block materials. In a word: multi-usage.
Working principle:
Grain dryer adopts rotary heating device, it can output enough hot air in a short time and kill eggs though high temperature. It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon. Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively. Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box.
Performance characteristics:
1, Use circulation drying method
2, No pollution
3, Drying fast
4, Effect good
5, Moisture under 10%
6, Withstand typhoon
Model |
HY-1.2-8 |
HY-1.6-8 |
HY-2-8 |
HY-2-10 |
|
Number of element |
4 |
4 |
4 |
5 |
|
Belt width (m) |
1.2 |
1.6 |
2 |
||
Drying section length (m) |
8 |
8 |
8 |
10 |
|
Spreading thickness (mm) |
10-80 |
||||
Operation temperature(℃) |
50-120 |
||||
Steam pressure(Mpa) |
0.2-0.6 |
||||
Steam consumption(Kg/h) |
120-130 |
150-375 |
180-500 |
225-600 |
|
Heat transfer area(m2) |
272 |
352 |
448 |
560 |
|
Drying time(h) |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.5 |
|
Drying intensity(Kg /h ) |
60-160 |
75-220 |
100-260 |
120-300 |
|
The fan number |
5 |
5 |
5 |
6 |
|
Total power of fan(kw) |
9.9 |
9.9 |
18.2 |
22.2 |
|
Total power of the device(kw) |
11.4 |
11.4 |
19.7 |
23.7 |
|
Dimension |
Length(m) |
10.05 |
10.05 |
10.05 |
12.05 |
Width(m) |
1.5 |
1.91 |
2.33 |
2.33 |
|
Height(m) |
3.15 |
3.15 |
3.65 |
3.65 |
|
Gross weight(Kg) |
4800 |
5400 |
6350 |
7800 |
|
