No pollution of the materials dryer machine
- 50 Set / Sets per Month
- Qingdao Shenzhen
- Credit Card
Product Details
Condition: | New | Type: | Dehumidifier | Place of Origin: | Henan, China |
Brand Name: | HongYun | Model Number: | 1060 | Voltage: | 110V/ 50HZ 220V/ 50HZ 380V/50HZ |
Power(W): | 12-20KW | Dimension(L*W*H): | 8500*1600*2300 mm | Weight: | 12-18t |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
According to custom's need.
Product Description

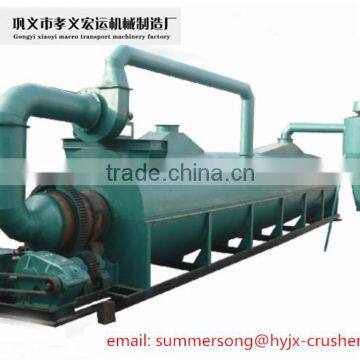

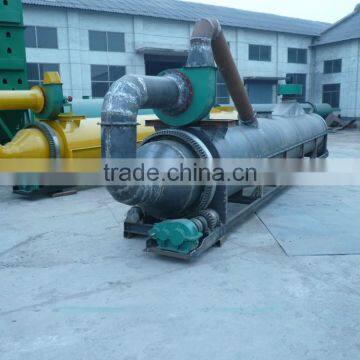

Structure and working principle of the tubular dryer:
The tubular dryer of Hongyun machinery manufacturing factory is mainly composed of heating source, feeding machine, feeder, revolving roll, discharging machine, induced draft fan, the unloader and power distribution cabinet.
The wet material is added in the dryer after dehydration.
The lifting board which in the roller turns over the material to make the material have a homodisperse and have a enough contact with the hot air to accelerate the heat transfer and mass transfer.
In the process of drying, materials are forced by lifting boards which have some gradient and thermal medium, transferring to the end of the dryer and discharging.
The main characteristic of the tubular dryer:
1, High degree of mechanization, high capacity, continuous running
2, Structure is well and simple, material moving stable under the roller resistance and easy to operate
3, Less fault, low maintenance cost, low power consumption.
4, The uniformity of product drying is good.
5, Adopt the special break up device, ensure that the effect of the dryer is well.
6, Special sealing device and good thermal insulation system will reduce the coal consumption.
7, Good sealing property of the whole system with complete dust removal plant, no dust spillover and good operate environment.
8, System is adopted centralized control, self-regulation of hot air temperature, high degree automation, operate handily.
9. Connecting smash device, pelletize device and package device to the dryer to product bean dregs granule feed.

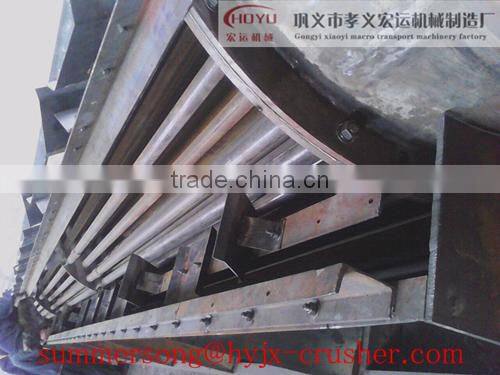

Inside of the dryer:
Specific paramenters:
model | Gradient (%) | speed (r/min) | Maximum inlet temperature
(℃) | power (kw) | production capacity
(t/h) | remarks |
HY-600 | 3-5 | 3-8 | ≤700 | 3 | Different water content, different result | Production and heating method has a certain relationship |
HY-800 | 3-5 | 3-8 | ≤700 | 4 | ||
HY-1000 | 3-5 | 3-8 | ≤700 | 4 | ||
HY-1200 | 3-5 | 3-8 | ≤700 | 5.5 | ||
HY-1500 | 3-5 | 2-6 | ≤850 | 11 | ||
HY-1800 | 3-5 | 2-6 | ≤850 | 15 | ||
HY-2000 | 3-5 | 1.5-6 | ≤850 | 18.5 | ||
HY-2200 | 3-5 | 1.5-6 | ≤850 | 22 | ||
HY-2400 | 3-5 | 1.5-5 | ≤850 | 22 | ||
HY-2600 | 3-5 | 1.5-5 | ≤850 | 30 | ||
HY-2800 | 3-5 | 1.5-5 | ≤850 | 37 | ||
HY-3000 | 3-5 | 1.5-5 | ≤850 | 45 | ||
HY-3200 | 3-5 | 1.5-5 | ≤850 | 55 | ||
HY-3400 | 3-5 | 1.5-5 | ≤850 | 75 | ||
HY-3600 | 3-5 | 1.5-5 | ≤850 | 90 |
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years.
We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
