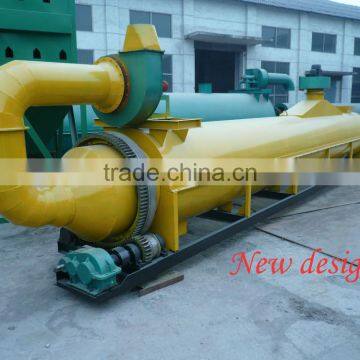

30t/h, high-effcient river sand dryer
- 40 Set / Sets per Month
- Shanghai Qingdao Tianjin Dalian Shenzhen
- T/T L/C
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Hongyun | Model Number: | 1590 | Power(W): | 3kw-90kw |
Dimension(L*W*H): | 11500*2100*2950 | Weight: | 16t-18t | Certification: | CE ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Sand dryer uses standard export containers, nude packing for main machine, plywood box for spare parts or the package of the sand dryer can be according to customers' requirements.
Product Description
Application of Sand dryer
Sand dryer is widely used in building materials, metallurgy,mineral processing,chemical industry,cement, casting and other industries. It can drying high wet and high gravity materials, such as kinds of sand, dry-mixed mortar, cement slag, clay, coal gangue, mixture, fly ash, gypsum, iron powder, limestone, coal, ore, Lan carbon and so on.
Structure characteristics of Sand dryer
According to customers’ demand, Gongyi city Xiaoyi Hongyun machinery factory can design different gas generator and combustor with elevator, belt conveyor, quantitative feeder, cyclone dust collector, draught fan and other related devices.
Performance characteristics of Sand dryer
The sand dryer’s investment of Gongyi Hongyun factory is just 20% of imported products. It is made of high quality material which is 3-4 times wear-resisting than ordinary material. It can dry the material with 15% moisture and the ultimate moisture can under 0.5%-1% so that it is the preferred drying equipment for enterprise. This device can improve above 40% thermal efficiency than traditional devices. In the process, there is no air leakage with rigorous sealing. It also has good heat preservation system, the temperature of outer barrel is under 60℃, exhaust gas temperature is under 120℃, out-feeding temperature falls below 60℃.The discharging can be packed directly to reduce the comprehensive energy consumption greatly.
Technical parameters of Sand dryer
Model | Gradient (%) | Rotate speed (r/min) | Maximum inlet temperature (℃) | Power (kw) | Production capacity (t/h) | Notes |
HY-600 | 3-5 | 3-8 | ≤700 | 3 | Based on the moisture content | The production relates to the heating methods |
HY-800 | 3-5 | 3-8 | ≤700 | 4 | ||
HY-1000 | 3-5 | 3-8 | ≤700 | 4 | ||
HY-1200 | 3-5 | 3-8 | ≤700 | 5.5 | ||
HY-1500 | 3-5 | 2-6 | ≤850 | 11 | ||
HY-1800 | 3-5 | 2-6 | ≤850 | 15 | ||
HY-2000 | 3-5 | 1.5-6 | ≤850 | 18.5 | ||
HY-2200 | 3-5 | 1.5-6 | ≤850 | 22 | ||
HY-2400 | 3-5 | 1.5-5 | ≤850 | 22 | ||
HY-2600 | 3-5 | 1.5-5 | ≤850 | 30 | ||
HY-2800 | 3-5 | 1.5-5 | ≤850 | 37 | ||
HY-3000 | 3-5 | 1.5-5 | ≤850 | 45 | ||
HY-3200 | 3-5 | 1.5-5 | ≤850 | 55 | ||
HY-3400 | 3-5 | 1.5-5 | ≤850 | 75 | ||
HY-3600 | 3-5 | 1.5-5 | ≤850 | 90 |
Company Profile
Gongyi Xiaoyi Hongyun machinery factory has 20 years of production experience and performance in the mineral processing equipment and baking-free brick equipment industry, which changes from state-owned enterprise to private enterprise. We have been being committed to product the coal gangue crusher, shale crusher, fine crusher and slag crusher, and improve constantly their performance and efficiency. Recently, combined with foreign advanced technology, we developed three-warehouse compound crusher and three-warehouse fine crusher, which both make high efficiency and energy saving as the theme.
Gongyi Xiaoyi Hongyun machinery factory has a modern enterprise management system, first-class equipment, perfect detection means, high-quality scientific research persons, high-quality tracking service, and face customers with highly dedicated spirit. It is constantly rated "advanced quality management enterprise" and "value-contract and keep-credibility enterprise" for many years.
We has been keeping the attitude that only customers are satisfied, can we are satisfied to keep pace with the times. We have many skilled technical persons and experienced after-sales service team, so we can offer customers a full of crushing screening from monomer to solutions. And we can provide customers with professional technology support, reliable supply of spare parts and high quality of after-sales service.
