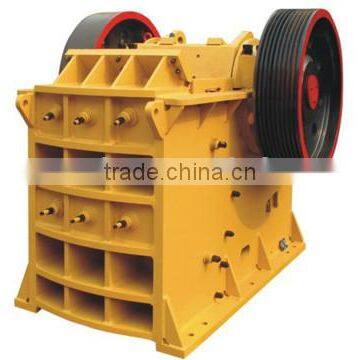

Mining, Building materials, Chemical industry, Metallurgy Application and Jaw Crusher Type small jaw crusher
Note: Plate hammer: It can crush 30,000-40,000 m3 cobbles all its service life.
Lining plate: It can crush 100,000 m3 cobbles all its service life.
Working principle:
It adopts the crushing principle of extruding, striking, split folding to crush the material during using.
Advantages:
1, Crushing more thoroughly effect and high efficiency
2, Adjustable discharge port,the range of size is 1000*1200
3, Low energy consumption and low dust emissions
4, Running smoothly, safe and reliable
5, High wear resistance and long service life
Technical parameters:
Model |
Feed opening (mm) |
Max feeding (mm) |
Adjusting rangeof discharging port (mm) |
capacity(t/h) |
power(kw) |
Weight (t) |
Dimension(mm) |
PE-250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
3 |
1430*1310*1340 |
PE-400×600 |
400×600 |
350 |
40-100 |
10-60 |
30 |
7 |
1700*1732*1653 |
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
55 |
12 |
2035*1921*2000 |
PE-600×900 |
600×900 |
480 |
65-160 |
90-180 |
75 |
17 |
2290*2206*2370 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
110-320 |
110 |
29 |
2655*2302*3110 |
PE-900×1200 |
900×1200 |
750 |
95-160 |
220-450 |
132 |
58 |
3800*3166*3045 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
160 |
100.9 |
6380*5310*3710 |
PEX-150×750 |
150×750 |
125 |
18-48 |
5-16 |
15 |
3.8 |
1200*1500*1200 |
PEX-250×750 |
250×750 |
210 |
25-60 |
15-30 |
30 |
5 |
1667*1545*1020 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
15-30 |
37 |
7 |
1550*1964*1380 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
45 |
8.5 |
2192*1900*1950 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
30-90 |
75 |
11.5 |
1750*2320*1724 |
