DHJ spot welder
Baoan District City, Xixiang, Shenzhen
Pan manager phone: 15919465529
Two, February 12th, one or two
Profile:

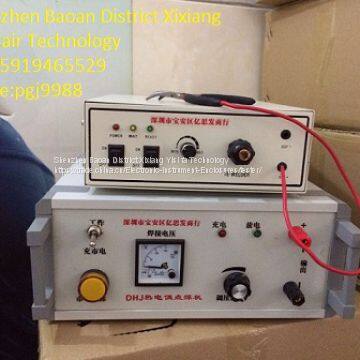

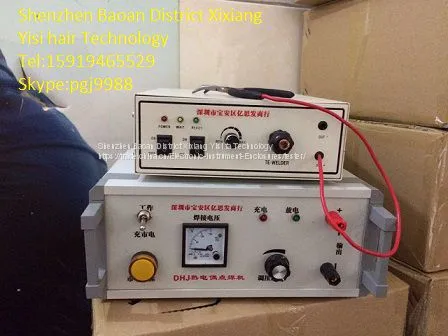

DHJ thermocouple spot welding machine is a kind of energy storage spot welding machine, built-in DC battery, it is specially used for thermocouple welding, small size, light weight, easy to carry

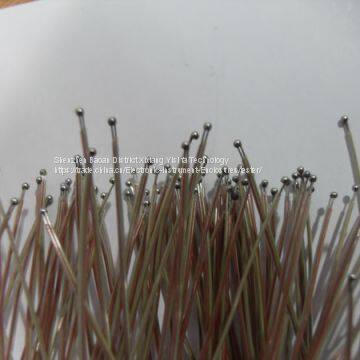

Welding industrial grade B.C.E.J.K.R.S.T type thermocouple thermocouple for DHJ welding machine, is also suitable for the extensive use of open type thermocouple interface user, use: commercial manufacturing, household appliances, construction, electronics, aviation, aerospace, temperature field, metallurgy field, colleges and universities, the commodity inspection laboratory, pipeline, welding site in ship power station installation. The heat treatment operation process of boiler manufacturing and other industries in the welding thermocouple as auxiliary tool. It can also be used in other filamentous electronic components welding products, stable performance, simple operation easy, easy to carry, can effectively improve the accuracy and efficiency of measurement
The DHJ is charged by the internal DC battery to the capacitor, and the welding voltage is selected by the adjusting knob
First, DHJ thermocouple spot welding specifications:
Length: 280mm
Width: 260mm
Height: 110mm
Weight: 4Kg
Welding thermocouple diameter: 0.5mm-2mm
Charging voltage: AV220V
Battery: 3500MAH 10
Two, the operation steps:
1, the welding machine needs to be charged before use
Step 1: charging: will the power switch to the position of.2 electric charge ": the power line is inserted into the machine rear power socket. 3: access 220V AC power," power indicator lights, "start charging. After charging will unplug the power line.
Charging time: about 8 hours
2, the welding machine power switch to the "work" position, according to the need to weld the diameter of the thermocouple to adjust the welding voltage
3, at this time the charging indicator red light in a few seconds after the light out, (select the high discharge indicator light to change the time is slightly longer) charge indicator lights indicate charging in place

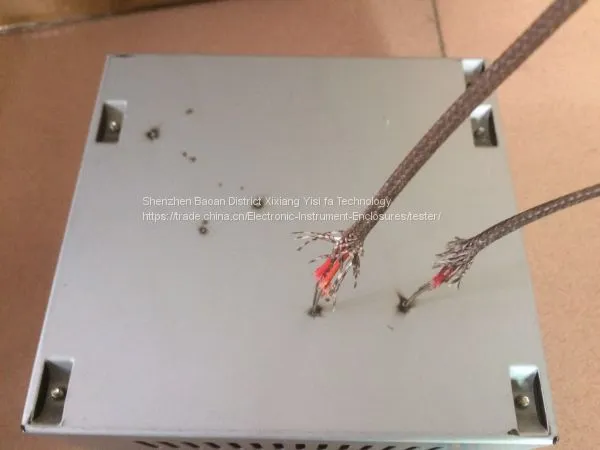

4, it is necessary to weld the workpiece position of the thermocouple to clean and remove the oil, and then put the negative magnetic electrode
5, according to the color of welding wire are respectively inserted into the output positive terminals, with positive clamp incision in the wire cut new welding end, with the head end of the thermocouple wire clamp holder on the welding parts of light pressure.
6, the discharge light immediately lit up for about 3 seconds, automatic discharge welder, the thermocouple is welded on the workpiece. (if it is not too bright or light discharge spark negative magnetic electrode contact Ming novel bad, please re placed. According to the principle of high pressure drop resistance wire holder in the end it should have grabbed the contact resistance, and the workpiece is certain to be welded in a little rusty or burned dark place, let energy as much as possible. In my local discharge wire end)
Note: after completion of welding if not loosen the holder, namely discharge indicator light, then the welder is not charging, until the green light is recharged immediately.
7, the welding machine can be charged once welding 200 points. When the power switch is turned on, after a long time, the indicator lamp should be recharged
8, matters needing attention:
The welder is not used, the power switch should be turned to "charge electricity". Otherwise the battery is easy to leak.
The power switch in the charging state must also be pulled to the position of charging electricity!
