Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > 880T Aluminium Short Stroke Press
US$ 3,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for Short stroke press
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
650T Extrusion Press MachineUS$ 30,000 - 300,000MOQ: 1 Set -
GA-1000 Aluminium Extrusion Press/extruderUS$ 30,000 - 300,000MOQ: 1 Set
-
GA-2000T Aluminum Extrusion Press MachineUS$ 30,000 - 300,000MOQ: 1 Set
-
1250T Aluminum Profile Extrusion PressUS$ 10,000 - 300,000MOQ: 1 Set
-
Giantally 1650T Aluminium Extrusion PressUS$ 30,000 - 300,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
GiantAlly
Model Number
GA-800T
Voltage
Customed-made
Power(W)
318
Weight
48000
Dimension(L*W*H)
10x3.5x3.2
Certification
ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Aluminium Short stroke pressThe series equipment suitable for extruding metals, such as aluminum, copper, magnesium,lead,etc.
Aluminium Short stroke press
The series equipment suitable for extruding metals, such as aluminum, copper, magnesium,lead,etc.
| Name | Short stroke press | ||
| Extruding pressure | KN | 8800 | |
| Pressure of operation system | Mpa | 21 | |
| Return force | KN | 570 | |
| Perforation stroke | mm | 500 | |
| Extruding stroke | mm | 1150 | |
| Dia of principal plunger piston | mm | Φ720 | |
| Extruding speed | mm/s | 0.3-17 | |
| lngot vessel dimensions | mm | Φ95-Φ115 x 550 | |
| Piercing force | KN | 1200 | |
| Fasten strength | KN | 520 | |
| Pattern strength | KN | 600 | |
| Shearing force | KN | 260 | |
| Motor power | KW | 55 x 3 | |
| Heating power | KW | 24 | |
| Outer dimensions (L x W x H) | M | 10x3.5x3.2 | |
| Height of discharging hole | mm | `1020 | |
| Weight | KG | 48000 | |

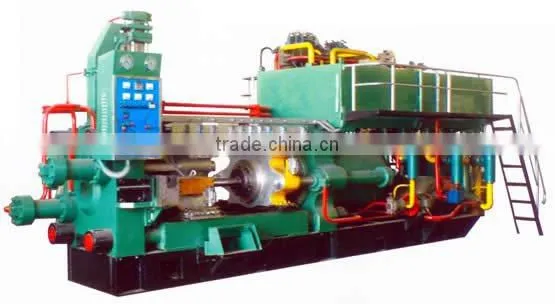

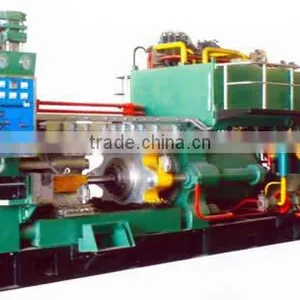

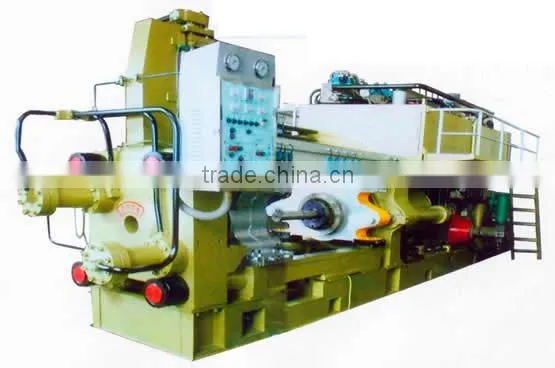

The picture of Short stroke press
