Specifications
Aluminum Profile Extrusion press 1250T is one of the most mature types in our company.Aluminum Profile Extrusion press 1250T is one of the most mature types in our company.
Name |
Aluminum Profile Extrusion press 1250T |
Hydraulic pressure |
21MPa |
force |
Main arm:1163T |
Faster cylinder:106T | |
Cylinder back force |
59T |
Container retaining force |
74T |
Shear force |
40T |
Extrusion speed |
1.2~15mm/s |
Container size |
Inside diameter:Φ158mm length:650mm |
Billet size |
diameter:Φ150mm length:250~600mm |
Motor power |
≈180KW |
Container power |
2KW×15=30KW |
Operation mode |
Manual and single automation |
Equipment (L×W×H) |
11×2.5×3.4m |
equipment weight |
55T |
1. the machine has a four-column horizontal structure consisting of top-mounted oil tank,well-laid hydraulic piping and integrating electrical system.installation and maintenance are convenient.
2. mobile bean can be located at four positions and centre-adjusted.mould moving mechanism can travel between two stations,safely and fast.
3.according to user's requirement special processes can be designed, such as double-motion seamless tubes extruding process,seamless tube short-range extruding process with floating hollow jets, reversible extruding process,constant temperature and speedregulating extruding process,etc.
4.hydraulic products from Gemany REXROTH,Japan YUKEN orus VICKERS are optionally used according to user requirement.
5.electronic component adopts the control system PLC of MITSUBISHI,Japan.touch screen and speed sensor can set and regulate the speed.

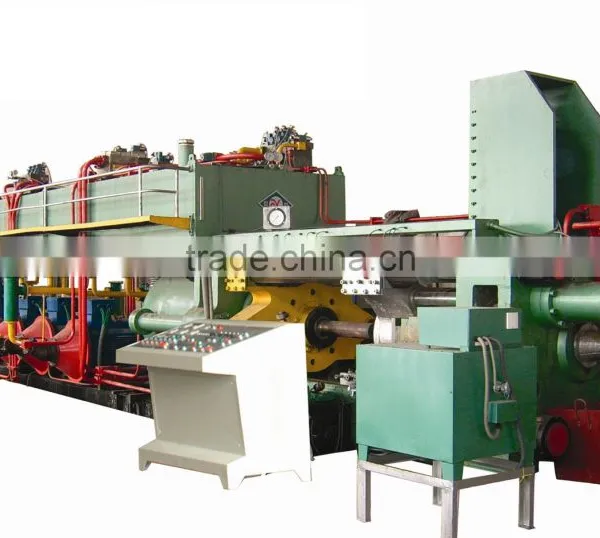

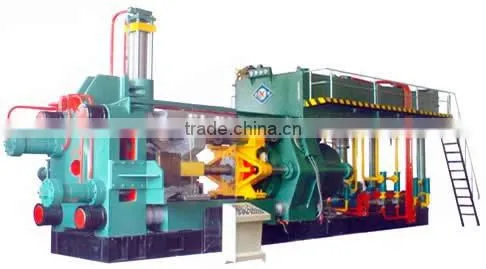

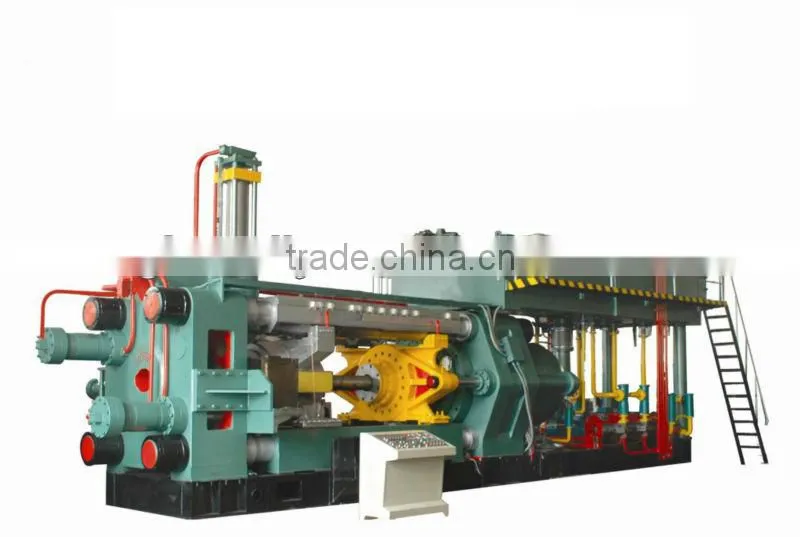

Pictures of Aluminum Profile Extrusion press
