Poplar wood shaving machine with price of 26,000$/set FOB Qingdao

Specifications

1.poplar wood shaving machine
le manufacturer
3.sale promotion
4.low price

Poplar wood shaving machine





Introduction

Shaving machine, also called wood crusher machine, wood shaving machine, wood chips machine. According to our domestic need and adopt Turkey process technology, we do some improvement on this machine.



Video link: /programs/view/tyUaaf3tfNs/



Feature

1.Advance technology,base on Turkey process technology,do some improvement on its design,insteady of welding connection,we ues accurate punching and embed method which aviod loosing with the machine when its running



2..High quality separe part,for the blade,you have HSS and KS55 choice,for the bearing,it is FAG which can be use a long time and quite durable.



3..Hydraulic Transmission,stable performance and low noise



4.Widely use,our machine can produce small volume and light wood shavings which can be used in paper mill,transportion filler and animal bedding etc.



Advantage:

1. Preventative System for Wood Jamming
2. Adjust the size of shavings by yourself
3. Easy replace the blades
4. Conveyor feeding shavings out
5. Safety Protection
6. Powerful working system



4.Application

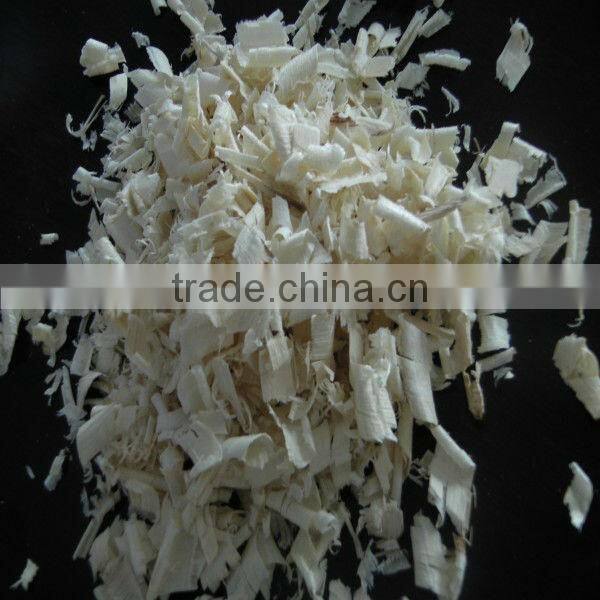

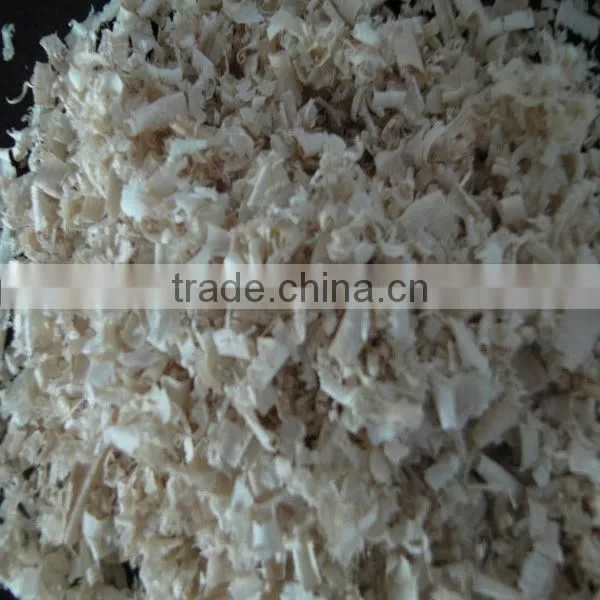

Shaving machine (wood shaving machine) can made wood, branch, crotch, leftover materials etc into shavings. As for the small size of the shavings, they are widely used in many fields. Shaving board in cabinet making factory, wood pulp in paper mill, protective filler for the fragile cargo in transportation, animal bedding in hennery. Etc.



5.Technical Parameters

Input material length(cm)	140
Input material width(cm)	45
Cutting head(set)	4
Blade(set)	6
RPM(r/min)	4500
Diameter of input(mm)	140
Power(kw)	42.87kw
Shaving depth(mm)	1-5
Hopper route(mm)	2200
Feeding speed (hydraulic)(m/min)	6-15
Dimensions(W×L×H)(cm)	115×515×180
weight(kg)	2850



YT-145		DOC(depth of cut)
		1mm	2mm	3mm	4mm	5mm
Speed	0.10 m/sec	427kg	654kg	880kg	1107kg	1.334kg
	0.15 m/sec	540kg	880kg	1.221kg	1.561kg	1.901kg
	0.20 m/sec	654kg	1107kg	1.561kg	2.014kg	2.468kg
	0.25 m/sec	767kg	1.334kg	1.901kg	2.468kg	3.035kg
