Rotary automatic stretch film wrapping machine for packing line , wrapping and supply top film fully automatic

Specifications

1. Stretch Wrapping machine
2. Easy Operate
3. High quality & competitive price
4. Factory
5. ISO 9001 and CE certificate







Welcome to your site, It's so luck to meet you









Advantage:

1.this automatic pallet wrapping machine have great advantage,whole the machine controled by PLC and photoeletric sensor,

so the pallet wrapping machine can work  precisely

2.cut &grab film fully automatic after wrapping the pallet

3.Photoeletric sensor measuring pallet ,delivery pallet automatic

4.Independent electric control box ,more safety.

5.Touch screen ,show lot imformation on it ,such us :wraped pallets ,machine situation.

6.frenquency conveter control ,more steady,and good qulity

7.save film very much ,our pallet wrapping machine ,film carriage system can pre-stretch film 300%.





 Automatic pallet wrapping machine specification:





Model			SM-1600s
Max packing hight			2000mm
Max packing area			2000mmx1300mm
Max packing weight			2000kg
Turntable diameter			2000mm
Turntable speed			0-14/min
Wrapping speed			30-40 loads per hour
Power supply			380V/50Hz
control type			PLC (Brand:MITUSUBISH or SIMENS)
screen			Touch screen
frequency converter			SIMENS
Measuring pallet			photoelectric sensor (Brand: AUTONICS)
automatic type			Fully automatic
inpout power conveyor			2000mm
output power conveyor			2000mm
conveyor roller material			SS304
Table hight			550mm
roller diameter			76mm
colour of guard			yellow
Guard rail. size			10000x1000mm(LxH)
Turntable motor power			0.75KW (Brand: CPG)
Film frame motor power			0.4KW
consumables			LLDPE(thickness:20-30mic)
stretch film percent			250%
Film width			500mm
Film elevation speed			0-3m/min
safety device			Emergency brake button
electric control box			Independent electric control box
measuring hight			photoelectric sensor
Turntable startup mode			Frequency conversion slow start
machine size			6000x2650x2900mm
machine weight			1200KG



Model	Top film dispensor
Mechanical Dimensions	L2500 * W2400* H2650mm
Top sheet Item Dimensions	L1300 * W1300 * H2400mm (including pallet)
working  speed	120pcs/H
matching conveyor table	H500mm
Power supply	three-phase 380V 50HZ 1.2KW
Control mode	PLC + photoelectric sensor
measuring hight	photoeletric sensor
film width	1200mm
covering film type	sucker press film go ahead
cutting film	automatic cutting system
PLC	SIEMENS
contactors, thermal overload protection	Schneider brand
intermediate relays, limit switches	Japan Omron brand
Machine Color:	white
motor	TaiWan CPG
frequency converter	SIMENS
table hight	550mm







 Details :







 1.Manucaturing

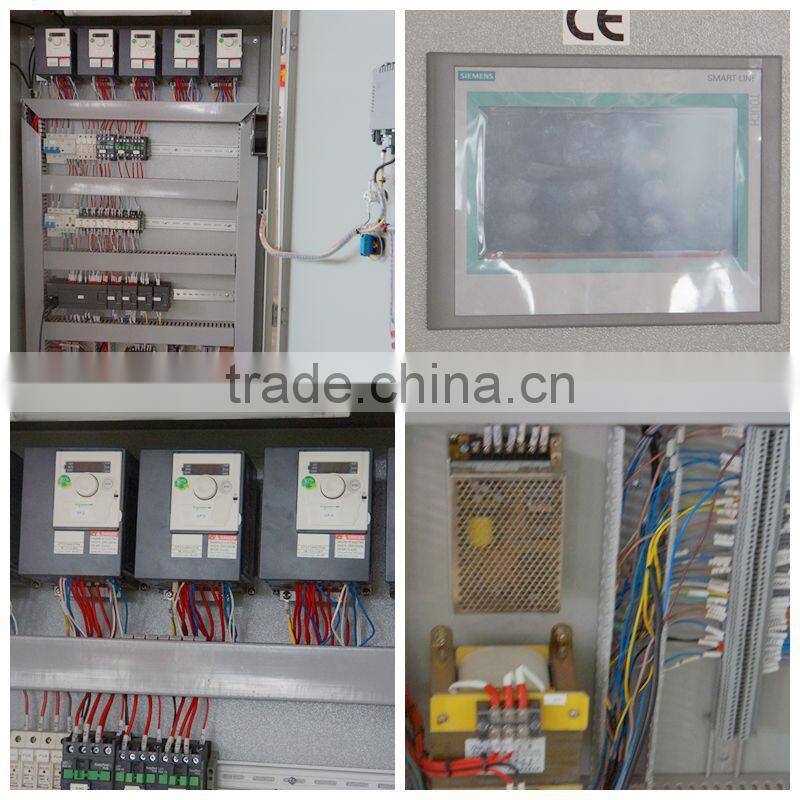

  2.  SIEMEN spare parts,touch screen ,no need work to operate this pallet wrapping machine ,the touch

       screen show lot of imformation,compute wrapped pallet ,and show the machine situation

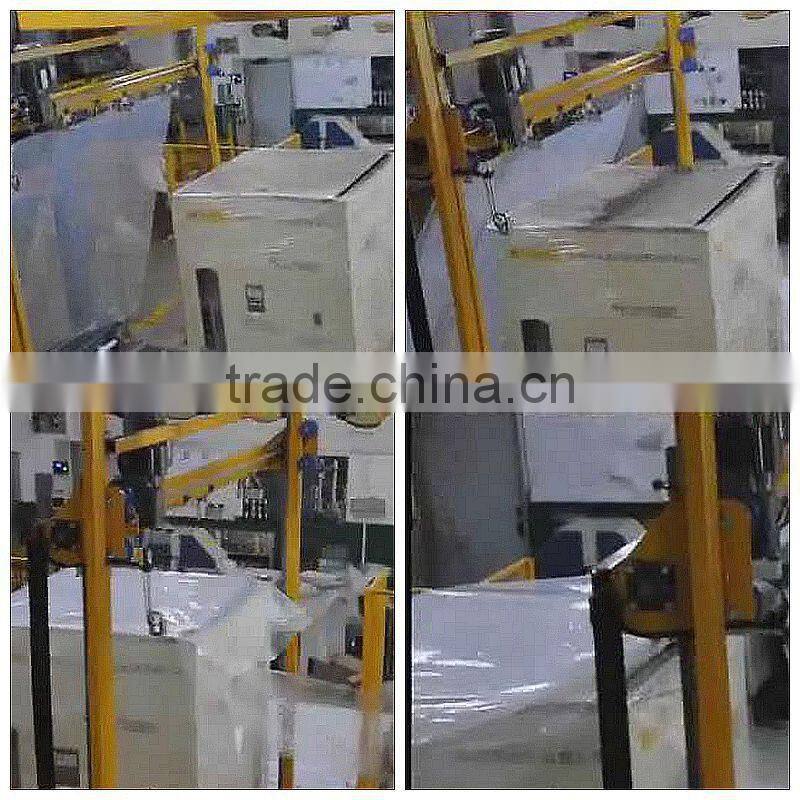

3.  top film covering

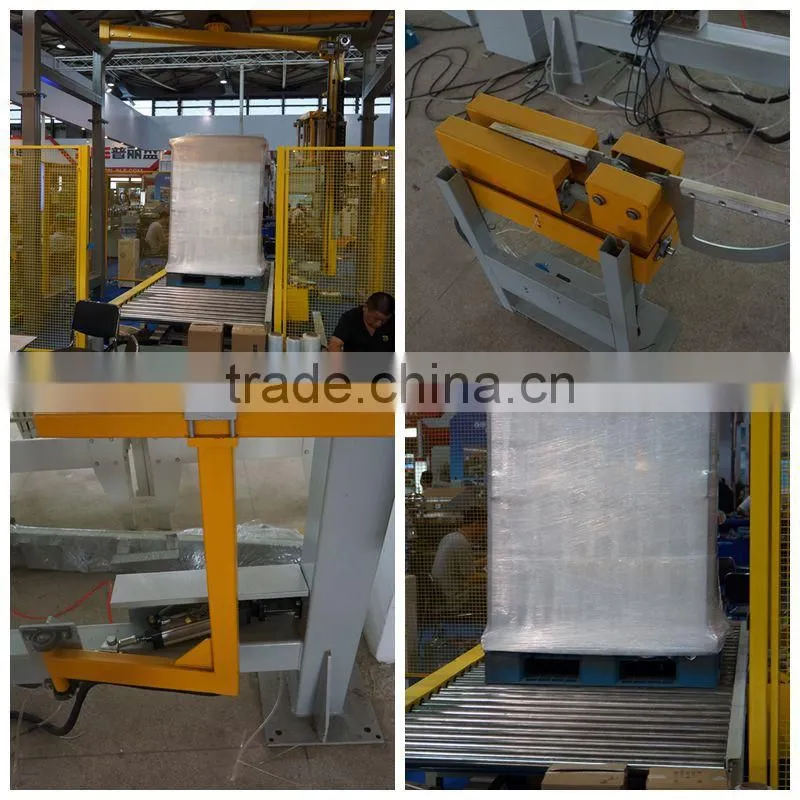

4. cut &grab film fully automatic

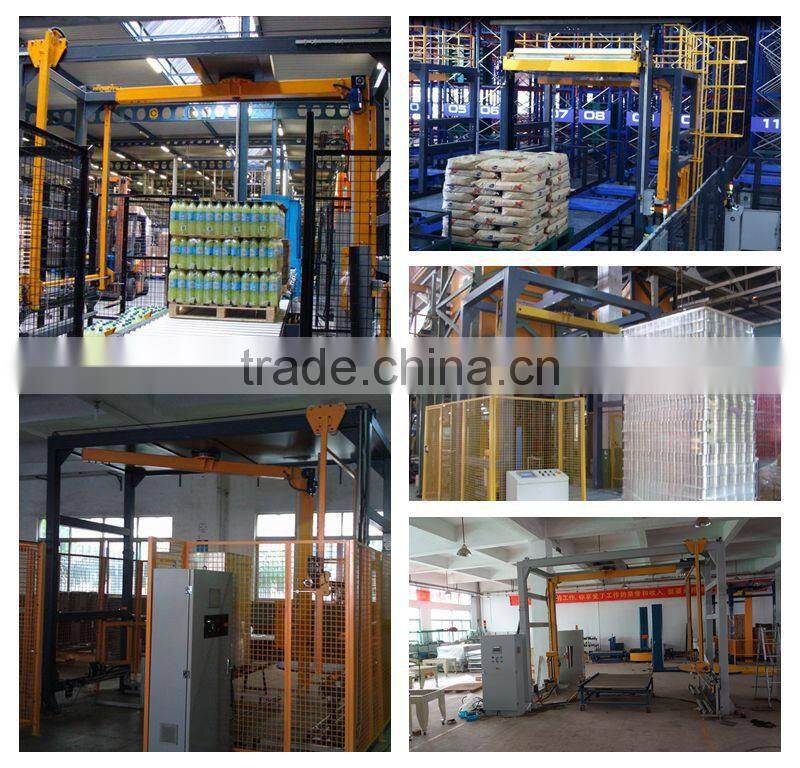

5.Customer visited our company:

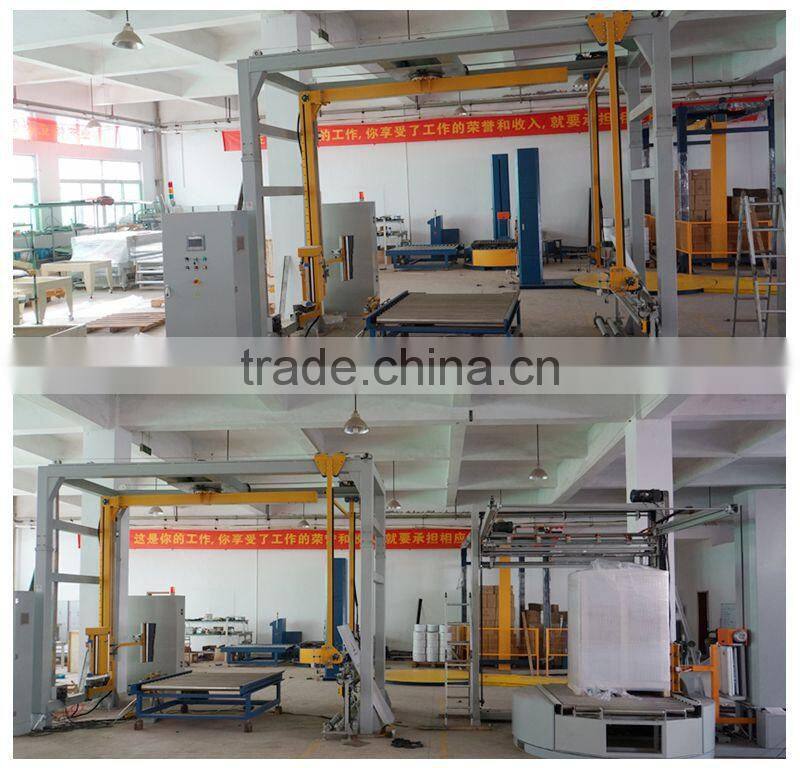

6.our company:









 Looking forward to your reply
