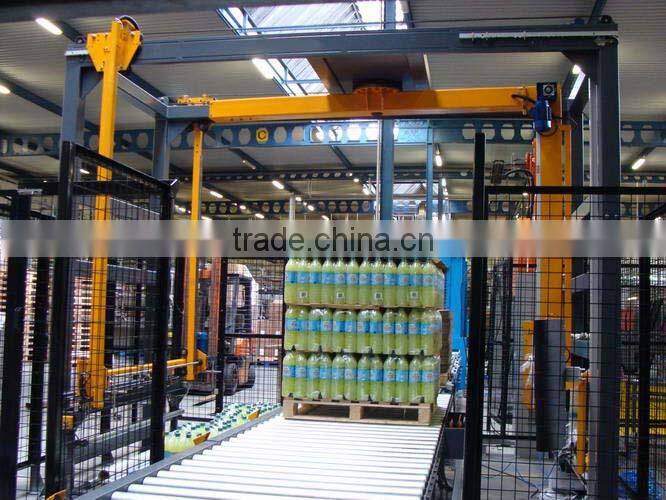

stretch film wrapping machine

Specifications

1. Stretch Wrapping machine
2. Easy Operate
3. High quality & competitive price
4. Factory
5. ISO 9001 and CE certificate





About our machine :

1.This wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet

2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage.

3.The machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc

Technical Parameters

Model			rotary fully automatic pallet wrapping machine			Model			Top sheet dispensor
Max packing hight			2000mm			Mechanical Dimensions			L2500 * W2400* H2650mm
Max packing size			1.2x1.2x2m			Top sheet Item Dimensions			L1300 * W1300 * H2400mm (including pallet)
Max packing weight			2500kg			working  speed			60pcs/H
conveyor width			1500 mm			matching conveyor table			H500mm
Wrapping speed			30-40 loads per hour			Power supply			three-phase 380V 50HZ 1.2KW
Power supply			380V/50Hz			Control mode			PLC + photoelectric sensor
control type			PLC SIMENS			measuring hight			photoeletric sensor
screen			Touch screen SIEMENS			film width			1200mm-1800mm
frequency converter			SIMENS			covering film type			sucker press film go ahead
Measuring pallet			photoelectric sensor (Brand: AUTONICS)			cutting film			automatic cutting system
Motor			CPG			PLC			SIEMENS
Time relay			OMRON			contactors, thermal overload protection			Schneider brand
Air break switch			CHINET			intermediate relays, limit switches			Japan Omron brand
A/C contactor			Schneider			Proximity switch			Schneider brand
Cyliner			5KG/m3 AIRTAC			Machine Color:			white
automatic type			Fully automatic			motor			CPG
infeed power conveyor			2000mm			frequency converter			SIMENS
output  power conveyor			2000mm			table hight			550mm
conveyor roller material			stainless steel
Table hight			550mm
roller diameter			76mm
colour of guard			grey
put film& cut film			full automatic  with guard rail
conveyor motor power			1.5 KW
Film frame motor power			0.4 KW
consumables			LLDPE(thickness:20-30mic)
stretch film percent			300%
Film width			500mm
Film elevation speed			0-3m/min
safety device			Emergency brake button
electric control box			Independent electric control box
measuring hight			photoelectric sensor
Turntable startup mode			Frequency conversion slow start
machine size			6000x2650x2900mm
machine weight			1500KG



Features:

1. High efficiency and low electricity-consumption, convenient in operation.

2. The wrapping type and times can be designed on customers’ requirements.

3. photoelectric sensor test pallet height automatic

4. Auto reset of turn table

5. Pre-stretch ratio: 25~250% (adjustable).

6. SM-2517R with top press.

7. Programmable control and frequency converter is available.

8.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment. Variable lift speed/ film tension control. Film up/down controls.

9.the machine soft start and soft stop.

10.Suitable for heavy pallet
