US$ 9,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical, Other
Packaging Type:
Cartons
Contact Supplier Request Quote Chat Now
Suzhou Jiajun Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food, Medical, Other
Packaging Type Cartons
Packaging Material Metal
Automatic Grade Automatic
Driven Type Mechanical
Voltage 220V/380V/50HZ
Power 3KW
Place of Origin Jiangsu, China
Brand Name Jiajun
Model Number SM-1600
Dimension(L*W*H) 5x8x3m
Weight 800KG
Certification ISO9001 CE TUV
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.automatic pallet wrapping machine
2.intelligent machine pallet wrapping machine
3.5 years warranty pllet wrapping machine

Welcome to your site, It's so luck to meet you

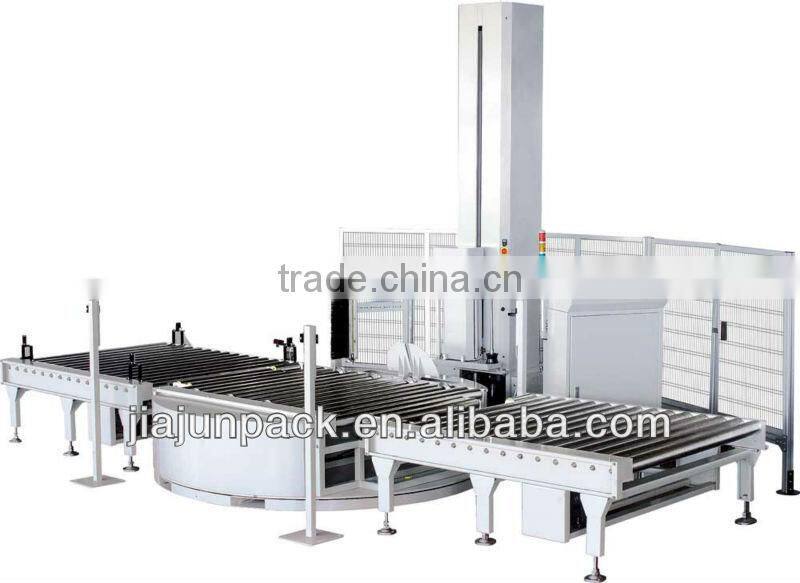

Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service





Advantage:

1.this automatic pallet wrapping machine have great advantage,whole the machine controled by PLC and photoeletric sensor,

so the pallet wrapping machine can work  precisely

2.cut &grab film fully automatic after wrapping the pallet

3.Photoeletric sensor measuring pallet ,delivery pallet automatic

4.Independent electric control box ,more safety.

5.Touch screen ,show lot imformation on it ,such us :wraped pallets ,machine situation.

6.frenquency conveter control ,more steady,and good qulity

7.save film very much ,our pallet wrapping machine ,film carriage system can pre-stretch film 300%.









Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service





 Automatic pallet wrapping machine specification:





Model SM-1600
Max packing hight 2000mm
Max packing area 2000mmx1300mm
Max packing weight 2000kg
Turntable diameter 2000mm
Turntable speed 0-14/min
Wrapping speed 30-40 loads per hour
Power supply 380V/50Hz
control type PLC (Brand:MITUSUBISH or SIMENS)
screen Touch screen
frequency converter SIMENS
Measuring pallet photoelectric sensor (Brand: AUTONICS)
automatic type Fully automatic
inpout power conveyor 2000mm
output power conveyor 2000mm
conveyor roller material SS304
Table hight 550mm
roller diameter 76mm
colour of guard yellow
Guard rail. size 10000x1000mm(LxH)
Turntable motor power 0.75KW (Brand: CPG)
Film frame motor power 0.4KW
consumables LLDPE(thickness:20-30mic)
stretch film percent 250%
Film width 500mm
Film elevation speed 0-3m/min
safety device Emergency brake button
electric control box Independent electric control box
measuring hight photoelectric sensor
Turntable startup mode Frequency conversion slow start
machine size 6000x2650x2900mm
machine weight 1200KG



 Details :

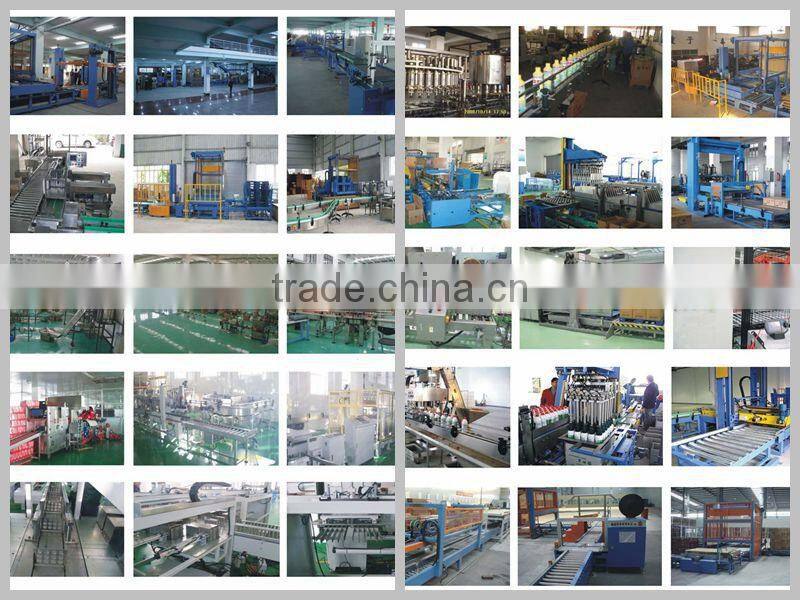

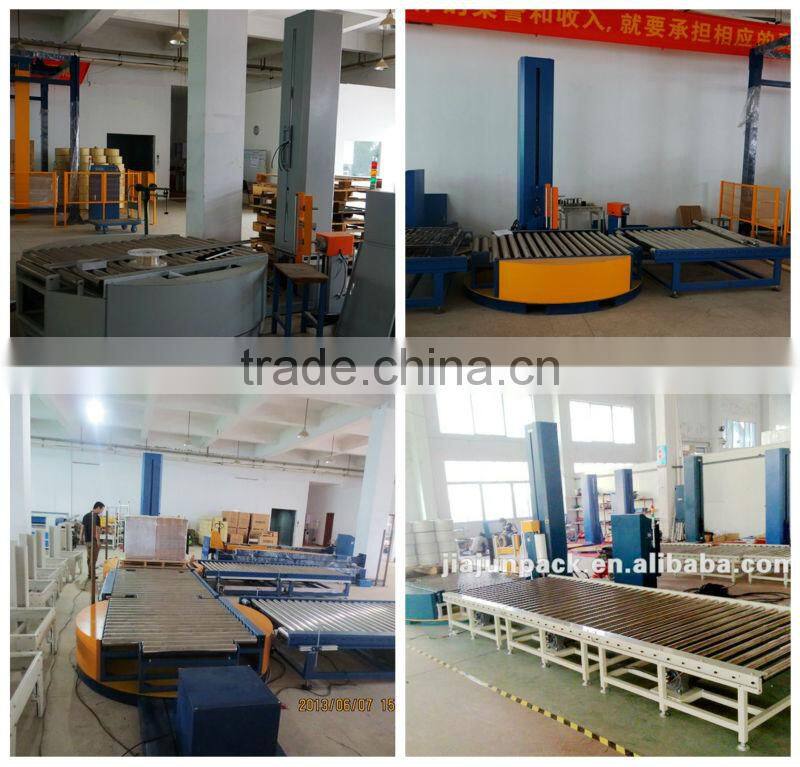

 1.Manucaturing



Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service

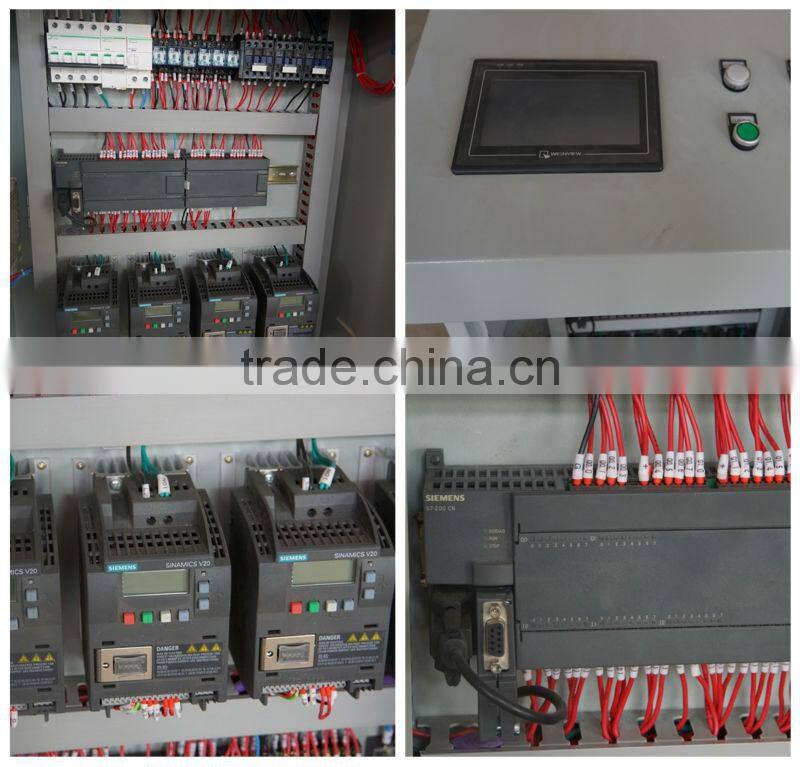

  2.  SIEMEN spare parts,touch screen ,no need work to operate this pallet wrapping machine ,the touch

       screen show lot of imformation,compute wrapped pallet ,and show the machine situation



Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service

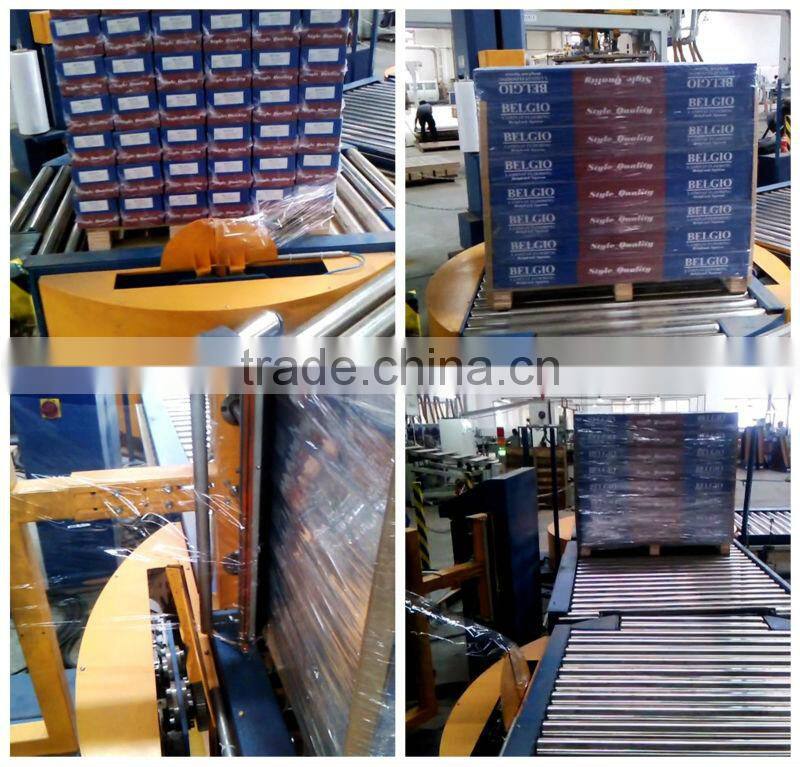

3. cut &grab film fully automatic



Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service

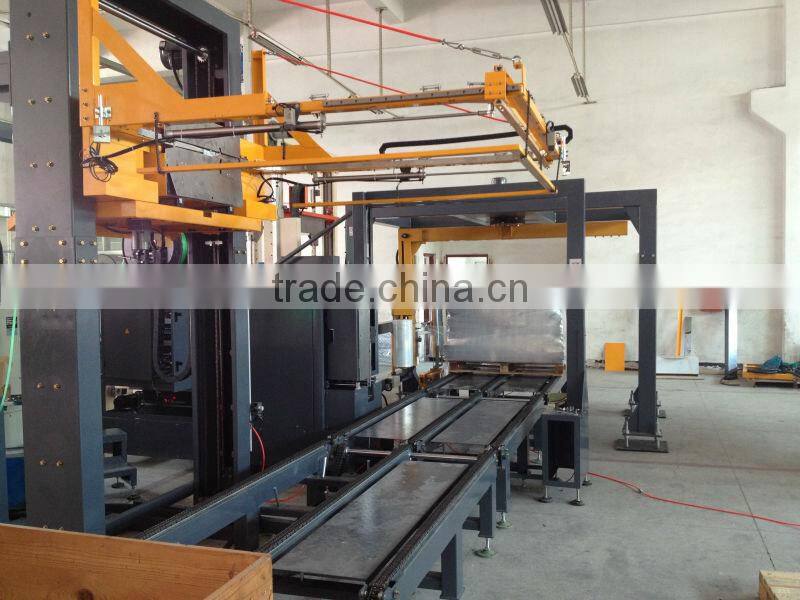

4.our company have other advantage ,we can manufacture wrapping line for our customer ,

 pallet top film covering ,pallet strapping and pallet wrapping full automatic packing line





Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service



if want to know how this packing line works ,please contact us for video



5.Customer visited our company:



Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and serviceFully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service

 Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service

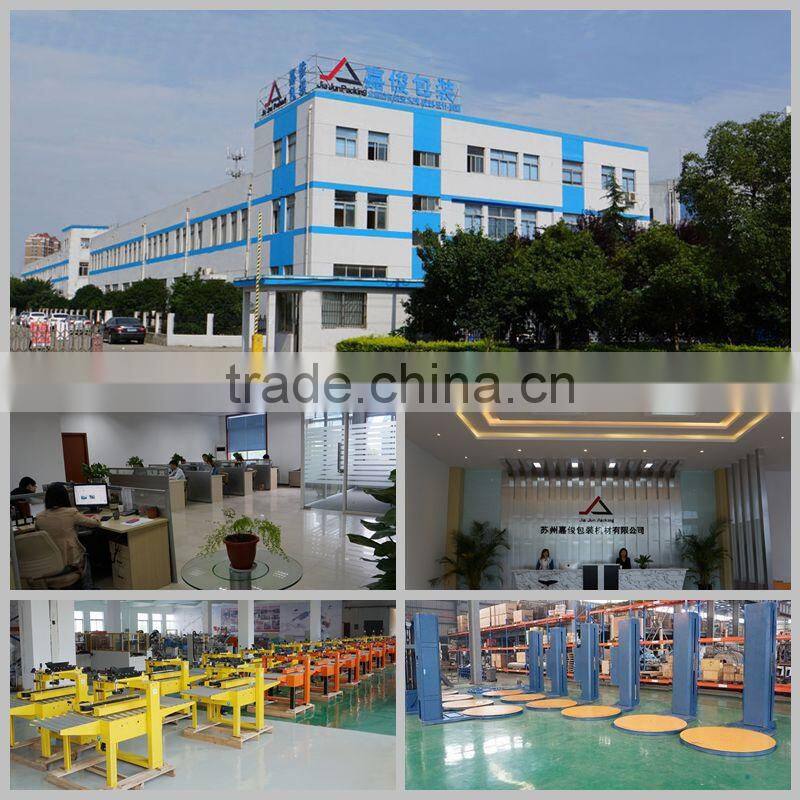

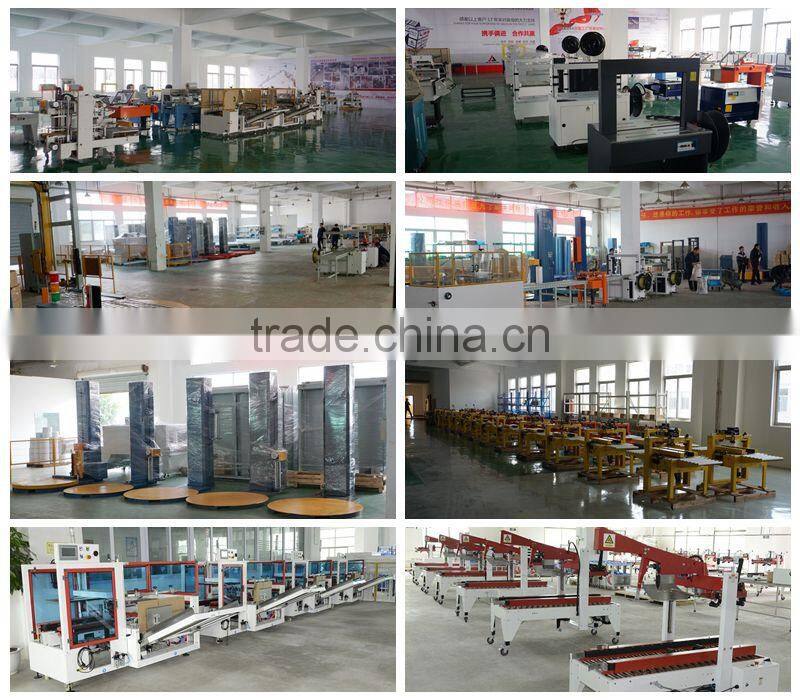

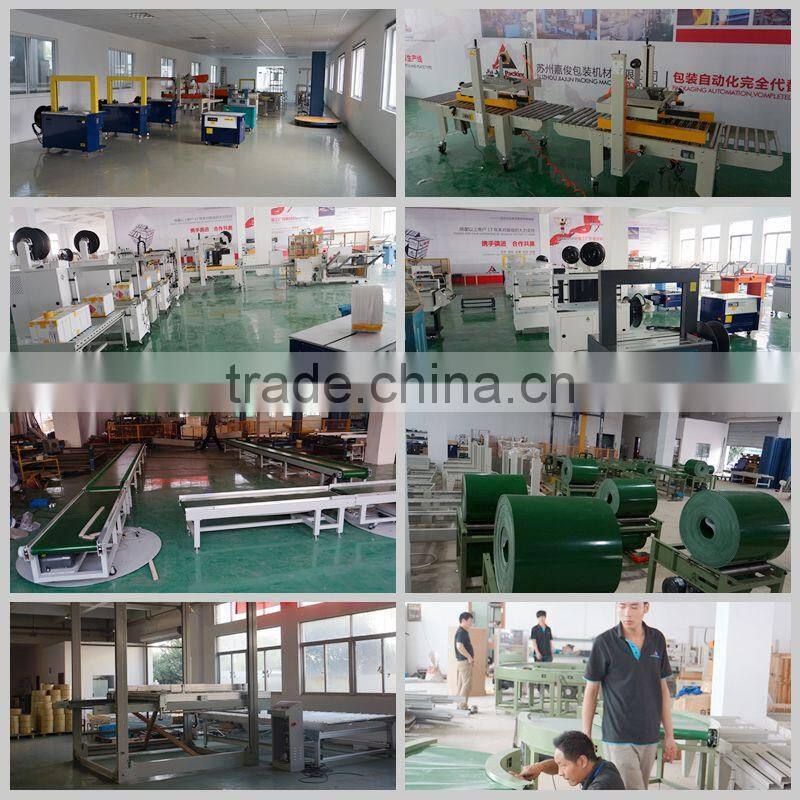

6.our company:

 Fully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and serviceFully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and serviceFully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and serviceFully automatic online pallet wrapping machine ,pallet packing line with 5 years warranty and service



 Looking forward to your reply
