Fully Automatic Online Pallet Wrapping Machine ,pallet Packing Line With 5 Years Warranty and Service
Specifications
1.automatic pallet wrapping machine2.intelligent machine pallet wrapping machine
3.5 years warranty pllet wrapping machine
Welcome to your site, It's so luck to meet you
Advantage:
1.this automatic pallet wrapping machine have great advantage,whole the machine controled by PLC and photoeletric sensor,
so the pallet wrapping machine can work precisely
2.cut &grab film fully automatic after wrapping the pallet
3.Photoeletric sensor measuring pallet ,delivery pallet automatic
4.Independent electric control box ,more safety.
5.Touch screen ,show lot imformation on it ,such us :wraped pallets ,machine situation.
6.frenquency conveter control ,more steady,and good qulity
7.save film very much ,our pallet wrapping machine ,film carriage system can pre-stretch film 300%.

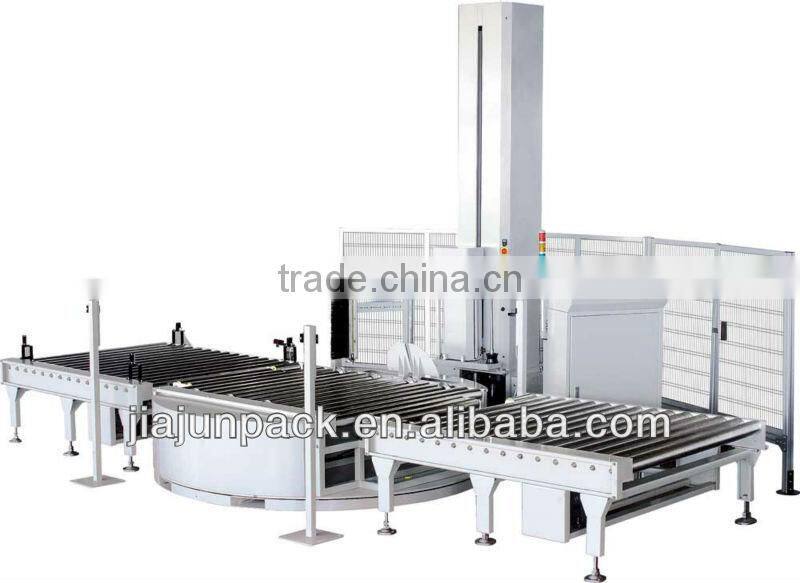

Automatic pallet wrapping machine specification:
| Model | SM-1600 | ||||
| Max packing hight | 2000mm | ||||
| Max packing area | 2000mmx1300mm | ||||
| Max packing weight | 2000kg | ||||
| Turntable diameter | 2000mm | ||||
| Turntable speed | 0-14/min | ||||
| Wrapping speed | 30-40 loads per hour | ||||
| Power supply | 380V/50Hz | ||||
| control type | PLC (Brand:MITUSUBISH or SIMENS) | ||||
| screen | Touch screen | ||||
| frequency converter | SIMENS | ||||
| Measuring pallet | photoelectric sensor (Brand: AUTONICS) | ||||
| automatic type | Fully automatic | ||||
| inpout power conveyor | 2000mm | ||||
| output power conveyor | 2000mm | ||||
| conveyor roller material | SS304 | ||||
| Table hight | 550mm | ||||
| roller diameter | 76mm | ||||
| colour of guard | yellow | ||||
| Guard rail. size | 10000x1000mm(LxH) | ||||
| Turntable motor power | 0.75KW (Brand: CPG) | ||||
| Film frame motor power | 0.4KW | ||||
| consumables | LLDPE(thickness:20-30mic) | ||||
| stretch film percent | 250% | ||||
| Film width | 500mm | ||||
| Film elevation speed | 0-3m/min | ||||
| safety device | Emergency brake button | ||||
| electric control box | Independent electric control box | ||||
| measuring hight | photoelectric sensor | ||||
| Turntable startup mode | Frequency conversion slow start | ||||
| machine size | 6000x2650x2900mm | ||||
| machine weight | 1200KG |
Details :
1.Manucaturing

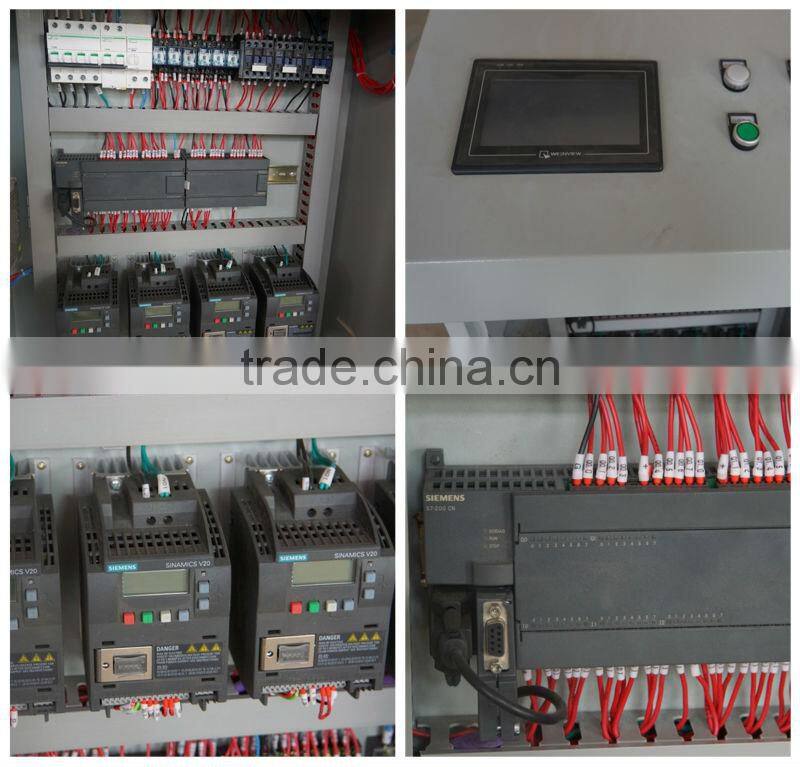

2. SIEMEN spare parts,touch screen ,no need work to operate this pallet wrapping machine ,the touch
screen show lot of imformation,compute wrapped pallet ,and show the machine situation

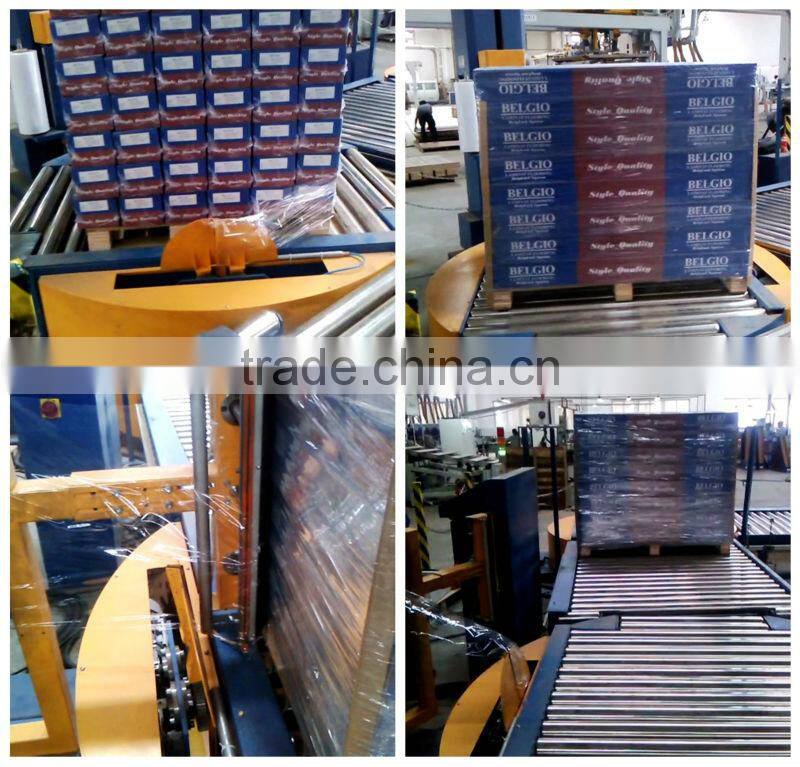

3. cut &grab film fully automatic

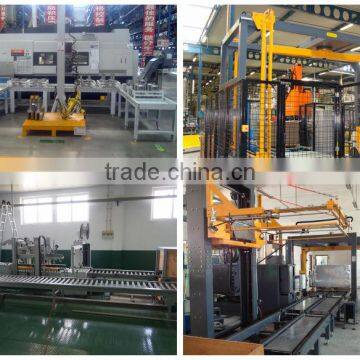

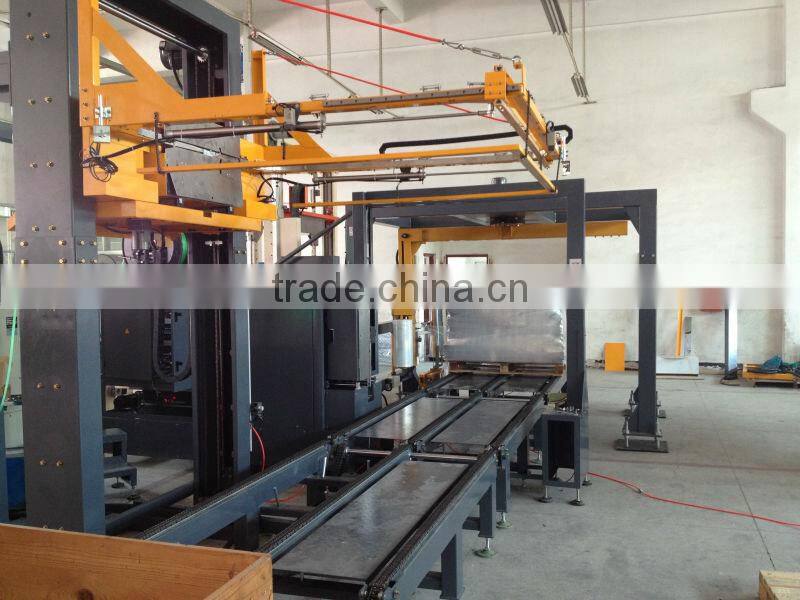

4.our company have other advantage ,we can manufacture wrapping line for our customer ,
pallet top film covering ,pallet strapping and pallet wrapping full automatic packing line
if want to know how this packing line works ,please contact us for video

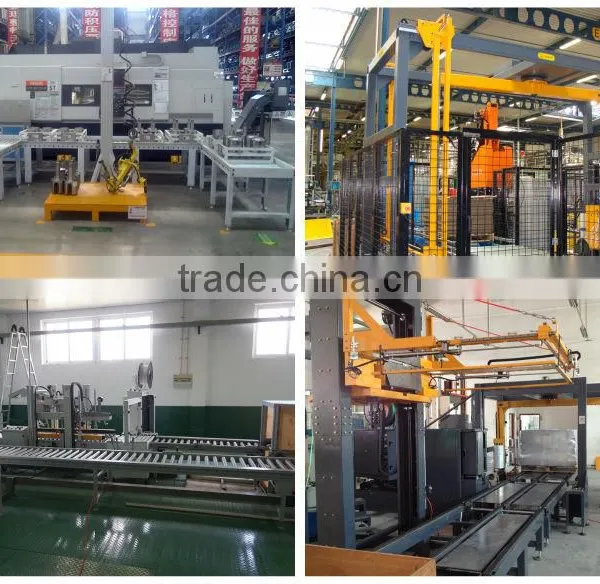

5.Customer visited our company:

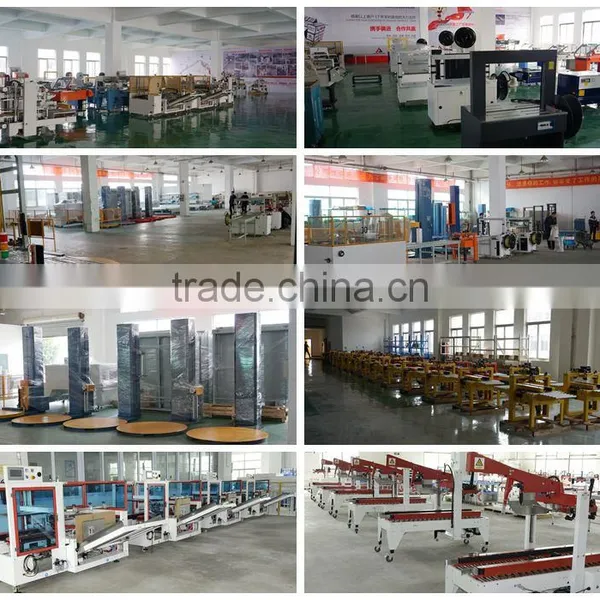

6.our company:
Looking forward to your reply
