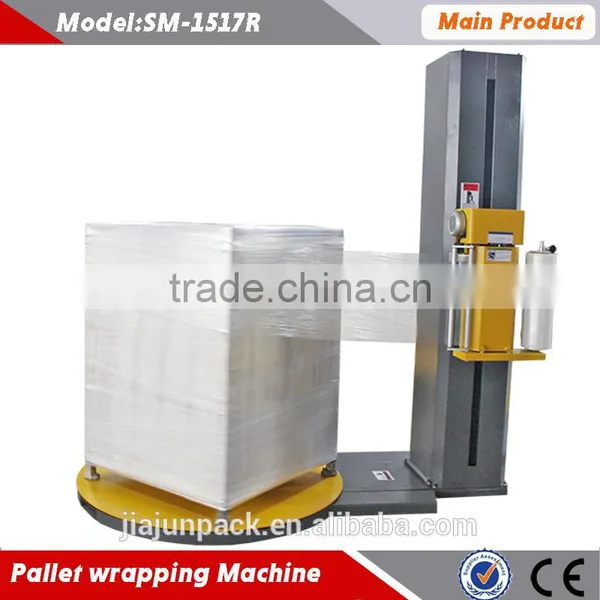

Automatic Pallet Stretch Wrapping Machine / Pallet Stretch Wrapper

Product Application

1.Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet.
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage.
3.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, etc

Main Features

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. photoelectric sensor mesuring pallet height automatic.
4. Auto reset of turn table.
5. Pre-stretch ratio:250%.
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.pallet stretch wraping machine soft start and soft stop.
9.Suitable for heavy pallet.

Film Carriage

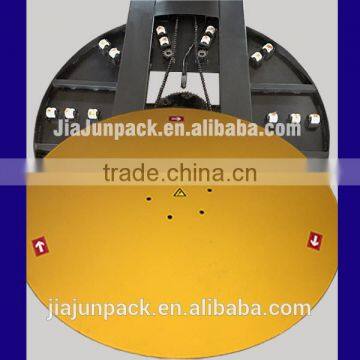

Turntable

2.10mm thickness turntable:Strong & never deformation.

3.Imported count induction switch:130000 times long life.

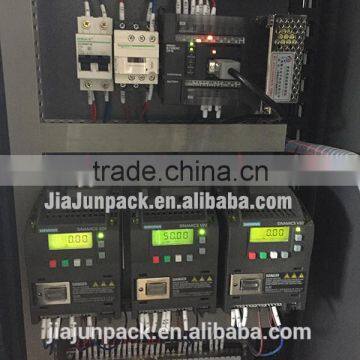

Electrical parts

1.what's mast height of machine?

SM-1517R  pallet wrapping machine mast height could be customized with your requirements,standard height is 2400mm ,and the max packing height also is 2100mm.

2.what's turntable size ?

The standard turntable size is 1500mm and 1650mm .
1800mm and 2000mm turtable optional

3.what's temperature can be use ?

Standard machine need > 0 degree
if <0 degree ,need tell us ,we need use a special motor for machine .

4.what's the thickness of turntable steel and use what cut the steel?

Turntable steel 10mm ,and use water cutting teachnology,do not use laser cutting.

5.what's max weight can be use?

Our standard machine max load weight 2000KG ,above 2000KG we need change to steel roller under the turntable ,standard machine use Nyloon roller .

6.How to put pallets on turntable?

You can use folklift.

Or use pallet jack with a ramp,the ramp is optional.

IF YOU HAVE OTHER QUESTION ,PLEASE " CONTACT US NOW"
