Help CenterDouble Rows Vertical Automatic High Speed Liquid Milk Packing Machine
Related Products
-
HT-Y1000 Automatic Liquid Mineral Water Filling Machine PriceUS$ 3,500 - 4,500MOQ: 1 Set -
50L Hopper AC Servo Motor Automatic Multifunction Liquid Packing MachineUS$ 9,000 - 10,000MOQ: 1 Set
-
HT-Y319F-15H AC Servo Motor Pouch Oil Packing MachineUS$ 9,000 - 10,000MOQ: 1 Set
-
Water Bag Filling Machines/plastic Water Bag Filling Sealing MachineUS$ 9,000 - 10,000MOQ: 1 Set
-
HT-Y319F-20CC Multi Materials Automatic Liquid Packing MachineUS$ 10,000 - 12,000MOQ: 1 Set

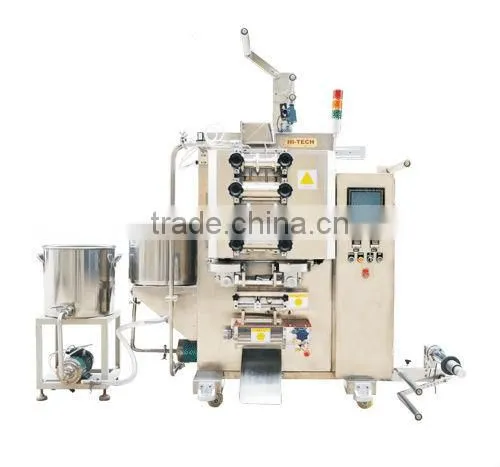

double rows vertical automatic high speed liquid milk packing machine is a new type that exclusive development and production base on HT-Y319F type and according to market demand for packaging of A and B two kinds of material (such as shampoo + conditioner, pesticides+additives, etc.) at the same time. Suitable for liquid materials to achieve particular 1+1 packing model. Can also filling same materials in two bags, speed up the production of two times.
This machine adopts advanced computer control system, can accurately realize two sets of feed device production at the same time, and has middle cutting device. Through the touch screen can be easily set packing size, packing volume, speed and other technical parameters. Single row and double row production can be switch freely.
Characteristic
1, High speed and high precision.
2, man-machine dialogue operation interface.
3, setting of bags length can simple and reliable adjustments in a wide-area.
4, photoelectric automatic calibration within three bags.
5, double variable frequency drive, stable and reliable running.
6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise.
Application scope
Pesticides, Sauce, Edible oil and other liquid materials.
Technical parameters
Bag Size |
Length: 50-210mm |
Width: 30-200mm |
Packing Speed |
20-120 Bags/min |
|
Capacity Range |
1-50ml with double rows, 1-200ml with single rows |
|
Bag Materials |
PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc |
|
Mechanical Power |
4KW/AC 380V |
|
Mechanical Dimensions |
L1400mm*W1000mm*H1800mm |
|
Sealing Method |
Three or four edges sealing |
|
Net Weight |
500Kg |
|
Optional Device |
Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
|
Electrical control system
Longitudinal sealing inverter: |
0.75KW Panasonic inverter |
Transverse sealing incerter: |
1.5KW Panasonic inverter |
Touch screen: |
WeinView touch screen |
PLC Module: |
Delta PLC |
Temperature Controller: |
Omron |
AC contactor: |
DELIXI |
Relays: |
Omron |
Color logo recognition sensor: |
BALEFU |
Angle encoder: |
Seiko |
Circuit protector: |
DELIXI |
Main Motor: |
YUQIU |
Type 80 vertical gear reducer: |
YUQIU |
Type 50 horizontal gear reducer: |
YUQIU |
Solid state relays: |
Tianhao |
Partners
Processing
After Sales Service
·Find our products through or https://img13.fr-trading.com
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
