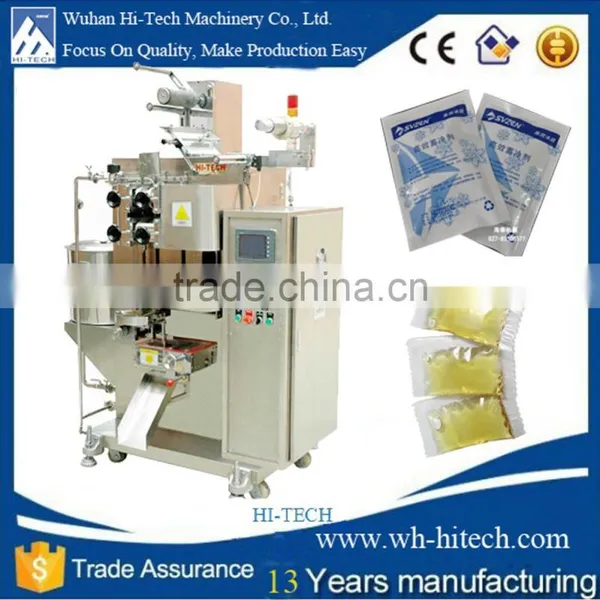

HT-Y319F-15H AC Servo Motor Pouch Oil Packing Machine
- 100 Set / Sets per Month
- SHANGHAI GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal
- water bag filling machines/plastic water bag filling sealing machine
- HT-Y319F-20CC Multi Materials Automatic Liquid Packing Machine
- Liquid Packing Machine For Dual Materials Filling In One Time
- HI-TECH AC Servo Motor Rose Essential Oil Packing Machine
- Vertical Form Fill Seal Double Rows Bags Automatic Liquid Packing Machine
- automatic spouted pouch liquid packing machine
Product Details
Condition: | New | Function: | Embossing, Filling, Sealing, Slitting, Other | Application: | Apparel, Beverage, Chemical, Commodity, Food, Medical |
Packaging Type: | Bags, Film, Foil, Pouch | Packaging Material: | Paper, Plastic, Other, Paper, Plastic, Foil, Non-Wovens, Kraft Paper | Automatic Grade: | Semi-Automatic |
Driven Type: | Electric | Voltage: | 220/380V | Power: | 2.3Kw |
Place of Origin: | Hubei, China | Brand Name: | HI-TECH | Model Number: | HT-Y319F-15H |
Dimension(L*W*H): | L900 W600 H1800mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The machine seals adopt three or four side seal method, according to different material, the packing
materials adopt different metering device to inject into bags.Cut off methods can use each of
flat knife, serrated knife, point marking knife as requirement.And equipped with ease open bags
cutting device.
HT-Y319F series mechanical breakthrough adopts localizable high performance double frequency
conversion PLC control system, through "man-machine dialogue", make the adjustments for
replacing products become simple, accurate and stable, English interface making the setting
operations simple, intuitive, and reliable
1, High speed and high precision.
2, man-machine dialogue operation interface.
3, setting of bags length can simple and reliable adjustments in a wide-area.
4, photoelectric automatic calibration within three bags.
5, double variable frequency drive, stable and reliable running.
6, roller suppoted by high temperature bearing, perfect sealing, free maintenance, low noise
Bag Size | Length: 50-210mm | Width: 30-150mm |
Packing Speed | 20-120 Bags/min | |
Capacity Range | 1-100ml | |
Bag Materials | PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc | |
Mechanical Power | 3.8KW/AC 380V | |
Mechanical Dimensions | L1400mm*W1000mm*H1800mm | |
Sealing Method | Three or four edges sealing | |
Net Weight | 500Kg | |
Optional Device | Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
In our machine, there are lots of electronic parts, some of them come from chinese best manufacturers and some from japan, german. They have different function to make the whole machine running well, we making a simple list to show these parts.
Longitudinal sealing inverter: | 0.75KW Panasonic inverter |
Transverse sealing incerter: | 1.5KW Panasonic inverter |
Touch screen: | WeinView touch screen |
PLC Module: | Delta PLC |
Temperature Controller: | Omron |
AC contactor: | DELIXI |
Relays: | Omron |
Color logo recognition sensor: | BALEFU |
Angle encoder: | Seiko |
Circuit protector: | DELIXI |
Main Motor: | YUQIU |
Type 80 vertical gear reducer: | YUQIU |
Type 50 horizontal gear reducer: | YUQIU |
Solid state relays: | Tianhao |
Our machine can be applied to following scope & products, include Food, Medicine, Pesticide or some other related liquid materials (As shown)
We have a group of Seasoned workers, their average age is 40 years old, and the chief engineer is Chinese first batch of personnel that engaged in design and manufacture of packaging machinery industry, our company also spends resources for the cultivation of young engineers. With them, we can promise you the high quality and best after-sale service. All our processing flows comply with related standards to ensure our products qualified leave factory, there are some pictures show the processing.
We use plywood case as the normal packaging case, if client or nation standard requires, we can offer fumigating wooden case too. Shipping by sea is the normal type and urgent by air.
·Find our products through or http://hi-techmachinery.en.china.cn
· One year warranty for the whole machine
· Free equipment installation and debugging
·After one year, we can help you to maintain the machine and the accessories are provided omle one the cost price
·Every 3 years, we can help to overhaul the machine freely (labor)
·We can provide internship service and help you train the operator and machunic
·Free production technology and process configuration
