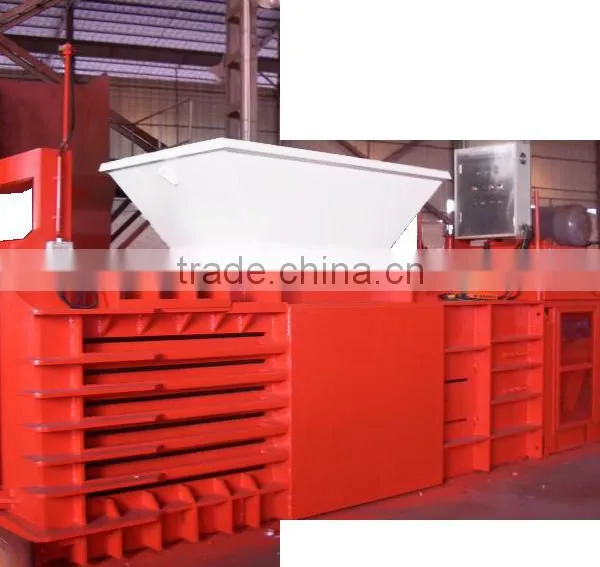

150Ton Semi-automatic Hydraulic Baling Machine for PET bottle(factory)   is ideal equipment to baling waste PET, HDPE, PLASTIC FILL and etc.

1. Input & output

Raw material: waste paper, carton, PET bottle

Completed product: waste paper bale, carton bale, PET bottle bale

Output capacity: 2-3bale/hr.

2. Energy consumption:

Electricity consumption:

Main power:37kw

Conveyor power:7.5kw

Cooling system:1.5kw

Qty. of labors: 1-2 persons

3. Basic Infrastructure

3.1 Electricity supply: 380V/50H,200V/50HZ,440V/60Hz,220V/60HZ(option)

3.2 one part of the conveyor(3.5meter long) need to put in the group(about 1.2meter deep)

3.3 Necessary lifting plants for loading and unloading machines during install nation and testing

Configuration for the automatic baler

1.Bale size:(700-1500)*1100*830mm

pressure:150Ton

3.bale weight: about 450kg-500kg

4.main power:37kw

nveyor power:7.5kw

6.overall dimension:7200*3020*2000mm

7.total weight:14000kg+5000kg(conveyor)

8.electric panel: Japanese appliance

9.pump:Vickers 4535V60.38

nveyor: compose by iron plate

11.size:3.5meter in the ground

12.oil tank capacity: 1530kg(68# hydraulic oil)

oling system: air cooling/fan cooling
