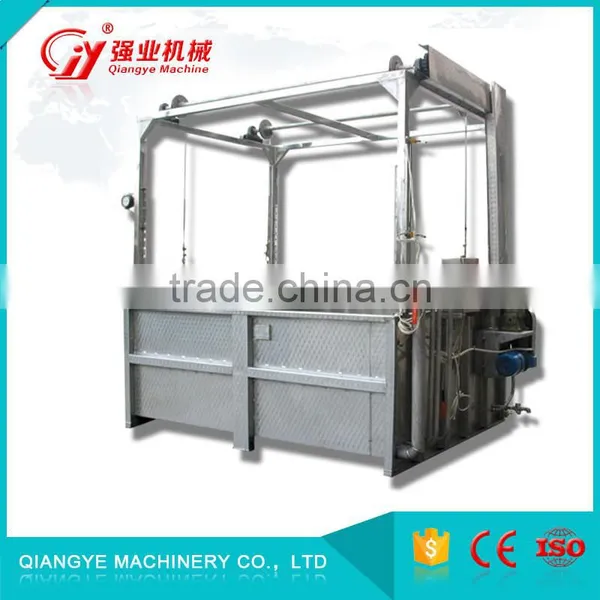

High Effciency industrial dyeing machine
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Guangzhou China
You May Like
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Place of Origin: | Guangdong, China |
Brand Name: | QIANGYE | Model Number: | DR-150 | Voltage: | 380V/50Hz(Optional) |
Power(W): | 2.2kw | Dimension(L*W*H): | 3320*1720*2950mm | Weight: | 480KG |
Certification: | CE ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
High Effciency industrial dyeing machine
Product Parameters
This machine can do multicolour dyeing , rise or fall of the process can be control by auto or man,easy to use ,the liquid the crock is circular move by dyeing pump,mix the liquid equality so that the product has more shine.Extensive suitable for sweater,gauze and other colourful garments.
Model | Dye vat capacity | Rated hanging number | Main motor (Power) | Fuel pump motor (Weight) | Dimensions L*M*W(mm) | Weight | ||
L*W*H(mm) | Row | Clothes Pieces | Hank yarn lb | |||||
DR-20-30-50 | 200 1600*800*900 500 | 1 | 20 30 50 | 1.1 | 0.75 | 1720*840*2780 | 150 | |
DR-50 | 1600*800*900 | 1 | 50 | 60 | 1.1 | 2380*920*2950 | 250 | |
DR-70 | 1300*1600*900 | 2 | 70 | 80 | 0.55 | 2080*1720*2950 | 350 | |
DR-100 | 1500*1600*800 | 2 | 100 | 120 | 1.5 | 2280*1720*2950 | 300 | |
DR-150 | 2500*1600*800 | 2 | 150 | 180 | 2.2 | 3320*1720*2950 | 480 | |
DR-200 | 3250*1600*900 | 2 | 200 | 250 | 0.75 | 4050*1720*2950 | 550 | |
DR-300 | 3500*2180*900 | 3 | 300 | 370 | 4 | 1.1 | 4340*2320*2950 | 780 |
2800*2400*700 | 4 | 4040*2540*3000 | 780 | |||||
DR-500 | 5000*2400*700 | 4 | 500 | 600 | 1.5 | 5860*2540*3000 | 1100 | |
DR-600 | 6000*2400*700 | 4 | 600 | 700 | 5.5 | 6860*2540*3000 | 1200 | |
DR-800 | 7000*2400*700 | 4 | 800 | 920 | 7860*2540*3000 | 1500 | ||
DR-1000 | 8000*2400*700 | 4 | 1000 | 1200 | 2.2 | 7.5 | 8860*2540*3000 | 1800 |
