Specifications

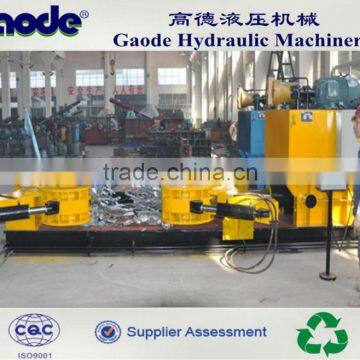

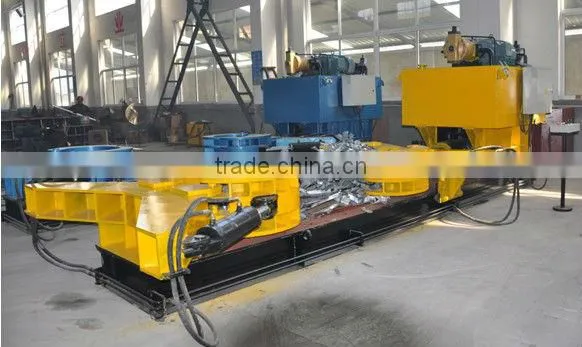

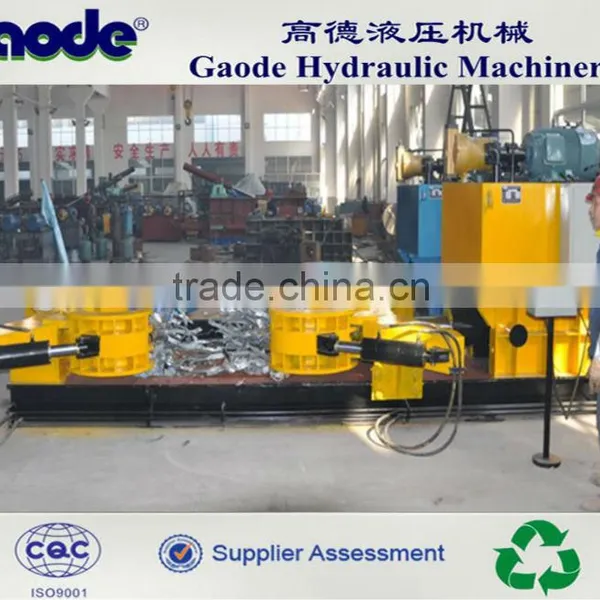

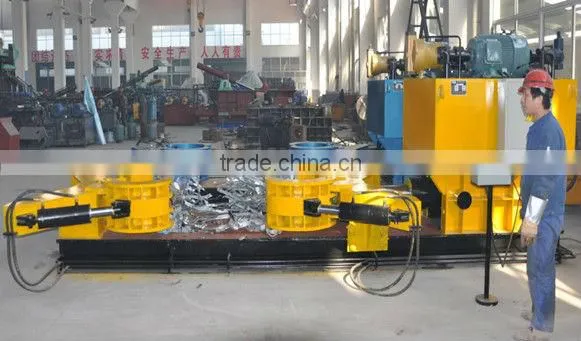

It is applied to the dismantling work of the various wrapped scrap-metal, plastic, waste paper and so on.Hydraulic Dismantling Bale Machine
It is applied to the Dismantling work of the various wrapped scrap metal, plastic, waste paper and so on.
HC45-1250 Dismantling Bale Machine Technical Parameter:
No. |
Parameter |
Remarks |
|||||
1 |
Max tensile force |
1250KN |
|
||||
2 |
Max opening of dismantling |
900mm |
|
||||
3 |
Max pressing force |
260KN |
|
||||
4 |
Main Cylinder tensile length |
1300mm |
|
||||
5 |
System working pressure |
21.5MPa |
|
||||
6 |
Hydraulic Pump |
Model |
40YCY14-1B |
Quantity |
1 set |
|
|
Nominal Outflow |
40ml/r |
Nominal Pressure |
31.5MPa |
||||
7 |
Hydraulic Pump |
Model |
80YCY14-1B |
Quantity |
1set |
|
|
Nominal Outflow |
80ml/r |
Nominal Pressure |
31.5MPa |
||||
8 |
Motor |
Model |
Y160M-4 |
Quantity |
1 set |
|
|
Nominal Speed |
1470r/min |
Power |
11KW |
||||
9 |
Motor |
Model |
Y180M-4 |
Quantity |
1 set |
|
|
Nominal Speed |
1470r/min |
Power |
18.5KW |
||||
Above information are indicative not engaging. Rights reserved for change if necessary.
