| scrap recycling metal shearing machine price |

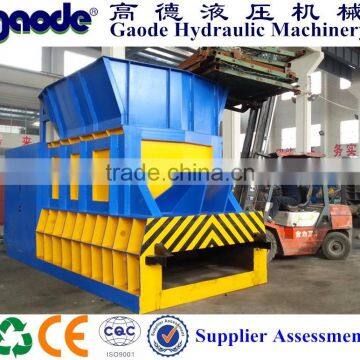

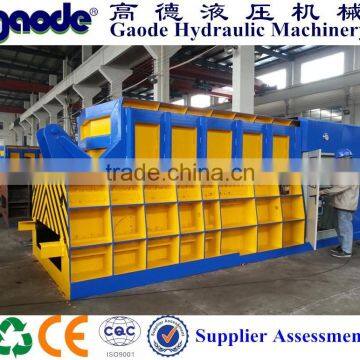

CS4000 Scrap Shear ( container style) | ||||||
No. | Technical Parameter | REMARKS | ||||
1 | press box size | 2500X1400 MM | ||||
2 | blade length | 1400 MM | ||||
3 | cycle time | 3-4 times/min | ||||
4 | capacity | 8-10 t/h | ||||
5 | cooler | wind cooler | ||||
6 | pressure system | 25.0 Mpa | ||||
7 | motor | model | Y225-S-4 | power | 37 KW | |
nominal speed | 1460rpm | quantity | 2 sets | |||
8 | pump | model | 250YCY14-1B | outflow | 250ml/r | |
nominal pressure | 31.5MPa | quantity | 2 sets | |||
9 | power supply | 380V/50HZ | ||||
10 | total power | 74 KW | ||||
11 | weight | 21 T | ||||
Advantages
The advantages of the container shear as compared to common guillotine shears can be summarised as follows:
- low specific investment and running costs
- continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap - no pre-compaction by lids
- Shear control carried out by grabber crane operator no additional operator needed
- self-enclosed operation with integrated diesel engine
- collection and transport by towing vehicle for transport containers or flat bed trailer

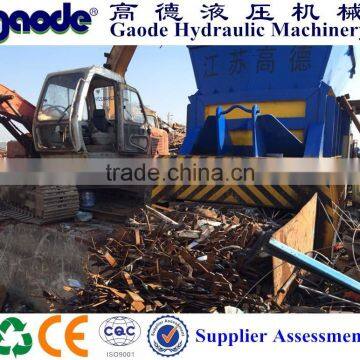

- efficient one-man loading, cutting and removal from one or several container shears using a digger
Applications
The container shear is particularly suited to:
- Operation at scrap yards without a power supply
- as an additional unit when capacity is reached on other scrap shears
- to prepare scrap for shredding
- processing scrap at sources of waste generation
- as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine
- as a processing unit for impurities in commercial waste that cannot be processed further by a shredder
Gaode has fully testing equipment to ensure productivity and quality
Gaode has achieved CE,ISO,SGS approval. Also get 11 patents.
Gaode product will be tested in the factory line before packed.
Gaode product is strongerly fixed by steel wires when loading.
China famous trade mark
Thirteen years focused on Recycling Equipment.
Gaode equipment have export to more than 10 countries in Europe, the Middle East, Southeast Asia,Africa, South America and areas etc.
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
