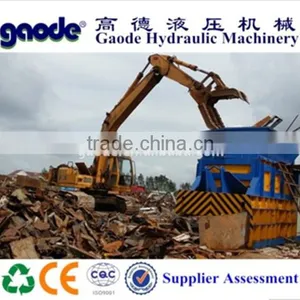

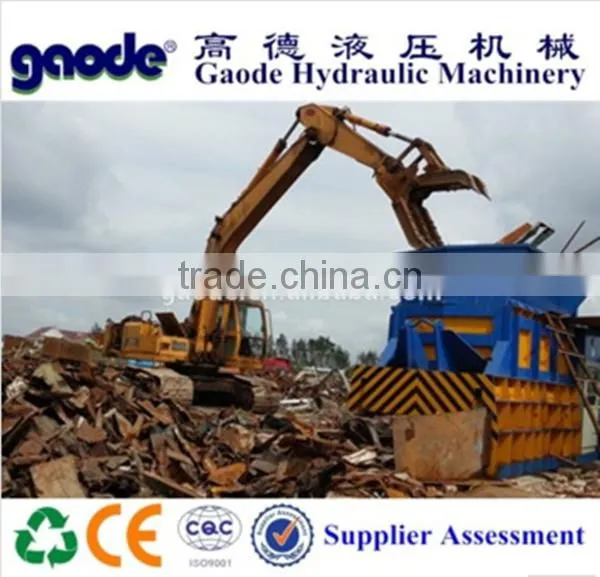

Factory Direct Sale Hydraulic Scrap Metal Container Shear

factory direct sale hydraulic scrap metal container shear

Advantages

The advantages of the container shear as compared to common guillotine shears can be summarised as follows:

• low specific investment and running costs
• continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap - no pre-compaction by lids
• Shear control carried out by grabber crane operator no additional operator needed
• self-enclosed operation with integrated diesel engine
• collection and transport by towing vehicle for transport containers or flat bed trailer
• efficient one-man loading, cutting and removal from one or several container shears using a digger
• little space required as compared to stationary shears
• no assembly and foundation costs are needed for operation
• does not require the usual clearance for operation as it is a mobile unit
• thanks to the horizontal cut with a large guided blade carriage there is little wear
• the forces working on the blade carriage always tend towards the centre, avoiding twisting forces
• all inner surfaces have a Hardox-wear plate cover and therefore undergo less wear
• the scrap is introduced from above, due to the movement of the pre-compressor the scrap automatically slips down and the cut scrap is pushed out of the front

Applications

The container shear is particularly suited to:

• Operation at scrap yards without a power supply
• as an additional unit when capacity is reached on other scrap shears
• to prepare scrap for shredding
• processing scrap at sources of waste generation
• as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine
• as a processing unit for impurities in commercial waste that cannot be processed further by a shredder

No	Technical Parameter							Remark
1	Cutting cylinder	Model	YG320/220-900					2Sets
		Cutting force	2000KN*2	Stroke			900MM
2	Press cylinder	Model	YG250/160-750					1Set
		Press force	1250KN		Stroke	750MM
3	Press Box Size(L×W×H)(MM)				2400*1400*1880
7	Feeding opening size(L×W×H)(MM)				3200*2400*900
8	Hydraulic system working pressure				21.5Mpa
9	Blade length				1400MM
10	Cutting height				400MM
11	Total power				74KW
12	Power supply				380V/3HP 50HZ
13.	Cycle time				2-3 times/min



Production Processing

 Load Cotainer

GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.

Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.

Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.

Company Show

The Finished Products

Fair Show

Certification

6months guarantee for whole machine

24hours technical support by email

Calling or door to door service

User manual and detailed video
