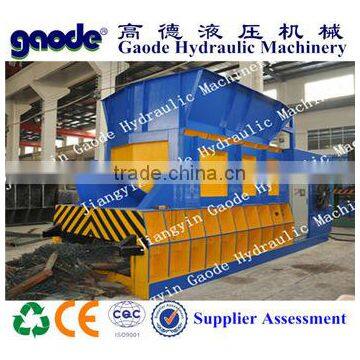

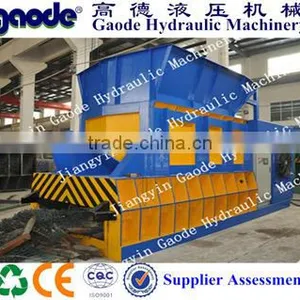

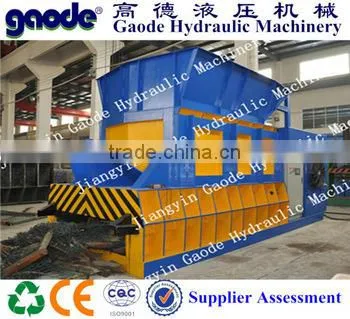

CS5000 Scrap Shear ( container style) | ||||||
No. | Technical Parameter | REMARKS | ||||
1 | press box size | 2500X1400 MM | ||||
2 | blade length | 1400 MM | ||||
3 | cycle time | 3-4 times/min | ||||
4 | capacity | 8-12 t/h | ||||
5 | cooler | wind cooler | ||||
6 | pressure system | 25.0 Mpa | ||||
7 | motor | model | Y280-S-6 | power | 45KW | |
nominal speed | 1460rpm | quantity | 2 sets | |||
8 | pump | model | 250YCY14-1B | outflow | 250ml/r | |
nominal pressure | 31.5MPa | quantity | 2 sets | |||
9 | power supply | 380V/50HZ | ||||
10 | total power | 90 KW | ||||
11 | weight | 23 T | ||||
Advantages
The advantages of the container shear as compared to common guillotine shears can be summarised as follows:
- low specific investment and running costs
- continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap - no pre-compaction by lids
- Shear control carried out by grabber crane operator no additional operator needed
- self-enclosed operation with integrated diesel engine
- collection and transport by towing vehicle for transport containers or flat bed trailer
- efficient one-man loading, cutting and removal from one or several container shears using a digger
Applications
The container shear is particularly suited to:
- Operation at scrap yards without a power supply
- as an additional unit when capacity is reached on other scrap shears
- to prepare scrap for shredding
- processing scrap at sources of waste generation
- as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine
- as a processing unit for impurities in commercial waste that cannot be processed further by a shredder
More than 10 countries we have exported of our products
Exhibition
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
