Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > 250ton Horizontal Hydraulic Scrap Metal Baling Press Machine

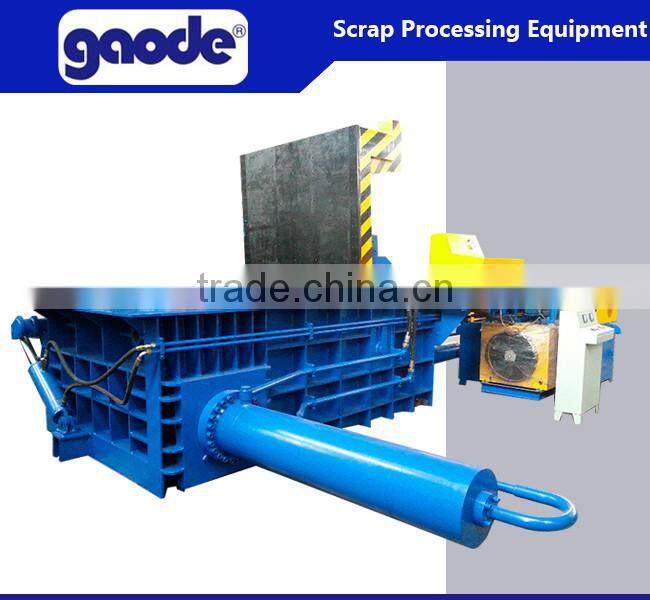

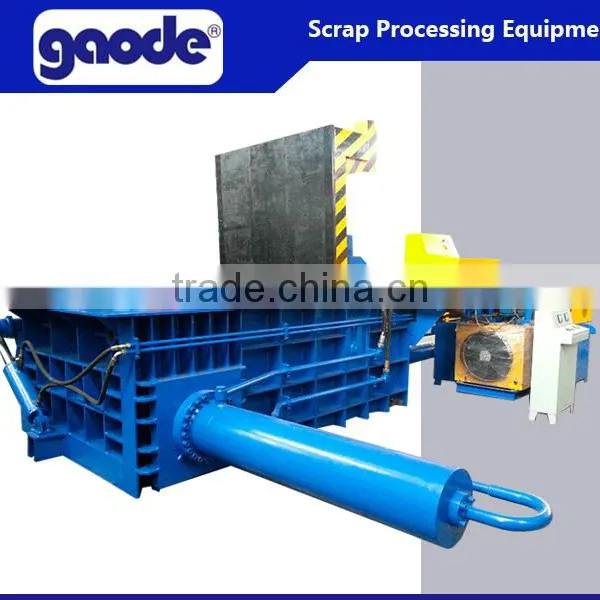

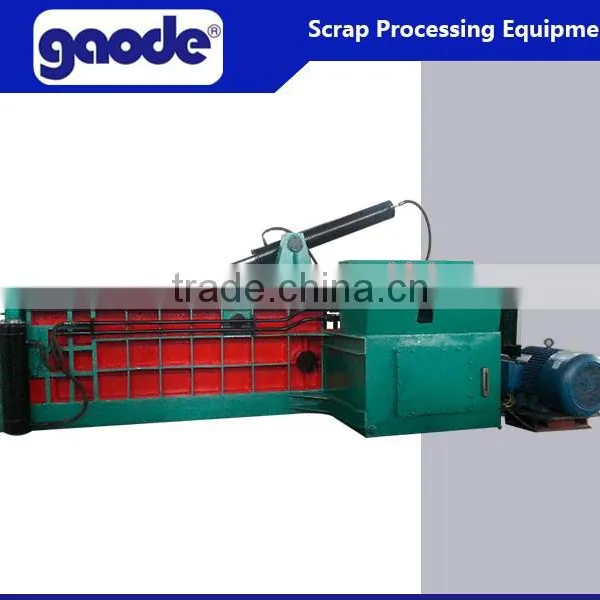

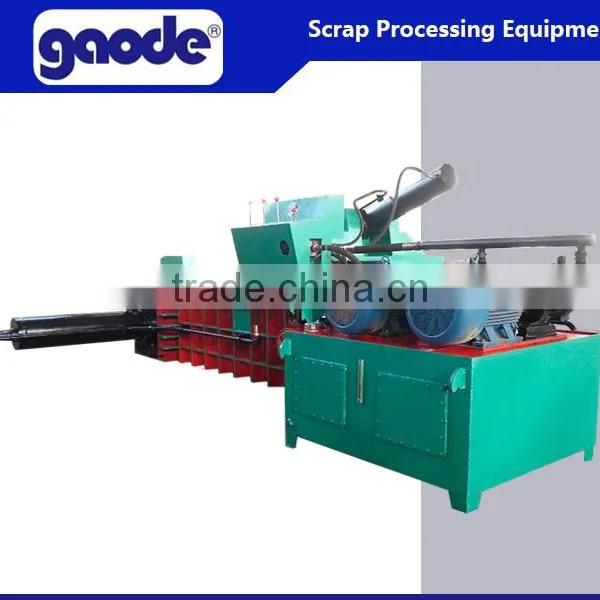

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine

Name: 250ton Horizontal Hydraulic Scrap Metal Baling Press Machine
Brand: gaode
SKU: 141041352
Availability: InStock

Jiangsu Gaode Hydraulic Machinery Co., Ltd.

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine thumbnail-1

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine thumbnail-2

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine thumbnail-3

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine thumbnail-4

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine photo-1

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine photo-2

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine photo-3

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine photo-4

US$ 26,000 - 31,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New, New

Application:

Other, Machinery & Hardware

Packaging Type:

Film

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, Machinery & Hardware

Packaging Type Film

Packaging Material Plastic

Automatic Grade Semi-Automatic

Driven Type Hydraulic

Voltage Customized

Power 44KW

Place of Origin Jiangsu, China

Brand Name gaode

Model Number HC81F-2000, HC81F-2000

Weight none

Dimension(L*W*H) none

Certification ISO9001:2008

After-sales Service Provided Overseas service center available

Product Description

250ton Horizontal Hydraulic Scrap Metal Baling Press Machine

Specification:

NO	HC81F-2500 BALER TECHNICAL SPECIFICATIONS						REMARKS
1	Main Cylinder	Model	YG340/220-1000		Quantity	1 PCS
		Nominal Force	2500KN		Stroke	1000mm
2	Side Cylinder	Model	YG240/160-1580		Quantity	2 PCS	2 Cylinders Paralleled
		Nominal Force	1200KN*2		Stroke	1580mm
3	Top Cover Cylinder	Model	YG200/140-1350		Quantity	1 PCS
		Nominal Force	800KN		Stroke	1350mm
4	Bale Turn Out Cylinder	Model	YG125/80-395		Quantity	1 PCS
		Nominal Force	80KN		Stroke	395mm
5	Hydraulic System Pressure			25MPa
6	Press Box Size			20001400900mm
7	Bale Size			(~800)500500
8	Cycle Length			App. 120 Sec
9	Hydraulic Pump	Model	160YCY14-1B		Quantity	2 sets
		Nominal Outflow	160ml/r		Nominal Pressure	31.5MPa
10	Motor	Model	Y200L2-6		Quantity	2 sets
		Nominal Power	22KW		Nominal Speed	970rpm

Features:
1, Hydraulic drive for all machine types, manual valve control or PLC control .
2, Bale-discharging:turn-out push-out forward-out or manual discharging.
3, No footing bolts needed in installation ; diesel engine can be equipped for power.
4, Baling force 10 grades from 63 to 400 tons ; productivity from 4 to 40 tons per shift
( 8 hours )
5, Press box size, bale size & bale shape can be customized

Applications:

HC81 series of hydraulic metal balers are applicable in steel plants, recycling companies,

ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles)

into acceptable furnace charges (shapes: cuboid, cylinder or octagon),

so as to reduce cost of transportation, to increase speed of furnace charging

Work Flow

Packaging & Shipping

Packaging: in nude wrapped with plastic film

Shipping time: 20-25days after signing the contract

Shipping port: Shanghai
