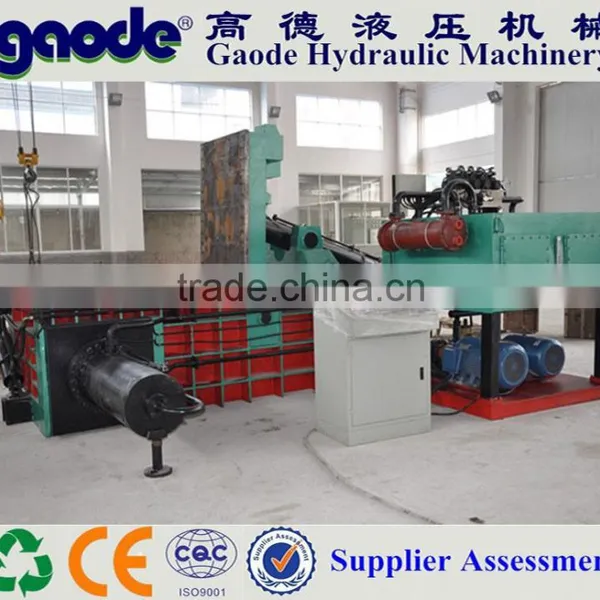

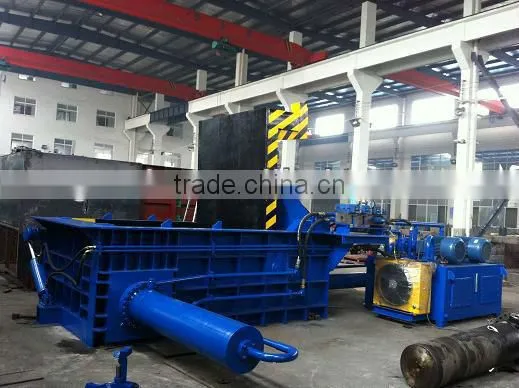

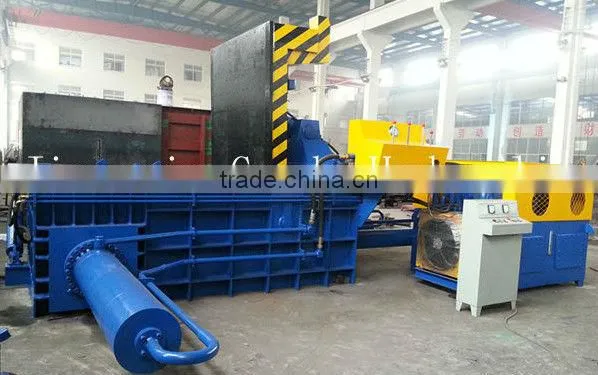

hydraulic full automatic scrap metal baler machine
- 100 Set / Sets per Month
- Shanghai
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other, Machinery & Hardware, baler machine | Packaging Type: | Other, baler machine |
Packaging Material: | Other, baler machine | Automatic Grade: | Automatic | Driven Type: | Hydraulic |
Voltage: | User Defined | Power: | 22KW, 22kw | Place of Origin: | Jiangsu, China |
Brand Name: | gaode | Model Number: | HC81F-2000, HC81F-2000 | Weight: | 15T |
Certification: | ISO9001:2008,CE,SGS | After-sales Service Provided: | Overseas service center available |
Product Description
Applications:
HC81 series of hydraulic metal balers are applicable in steel plants,recycling companies,ferrous&non-ferrous
smelting industry to press metal scrap (steel,copper,aluminium,stainless
steel,discarded automobiles) into acceptable furnace charges(shapes:cuboid,cylinder
or octagon),so as to reduce cost of transportation,and
increase speed of furnace charging.
Features:
1,Hydraulic drive for all machine types, manual valve control or PLC control .
2,Bale-discharging:"turn-out","push-out","forward-out" or manual discharging.
3,No footing bolts needed in installation;diesel engine can be equipped for power.
4,Baling force 10 grades from 63 to 400 tons;productivity from 4 to 40 tons per shift
( 8 hours )
5,Press box size,bale size & bale shape can be customized.
1 | Hydraulic System Pressure | 25MPA (Bale-discharging 6MPA) |
| ||||
2 | Press Box Size | 1600*1000*800mm | L*W*H | ||||
3 | Bale Size | (~550)*400*400mm | L*W*H | ||||
4 | Cycle Length | App. 100 Sec |
| ||||
5 | Hydraulic Pump | Model | 160YCY14-1B | Quantity | 1 set |
| |
Nominal Outflow | 160ml/r | Nominal Pressure | 31.5MPA |
| |||
6 | Motor | Model | Y200L2-6 | Quantity | 1 set |
| |
Nominal Power | 22KW | Nominal Speed | 970rpm |
|
The Certificate
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
