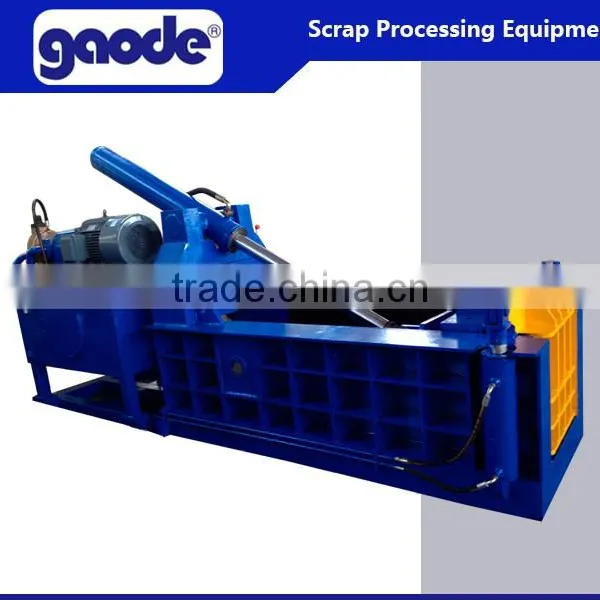

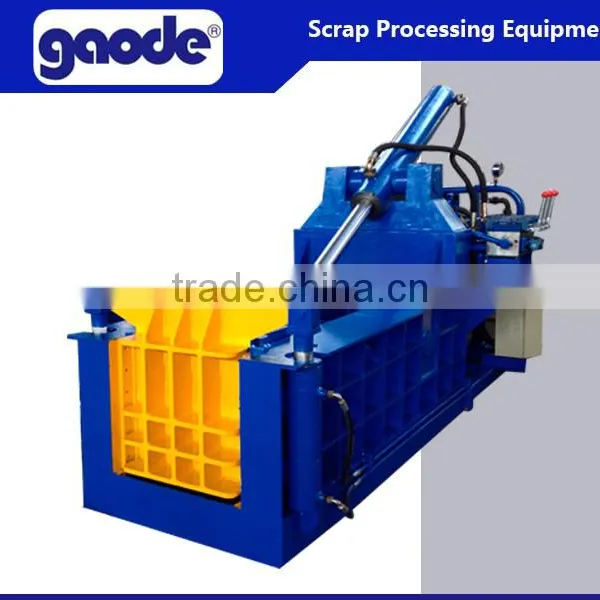

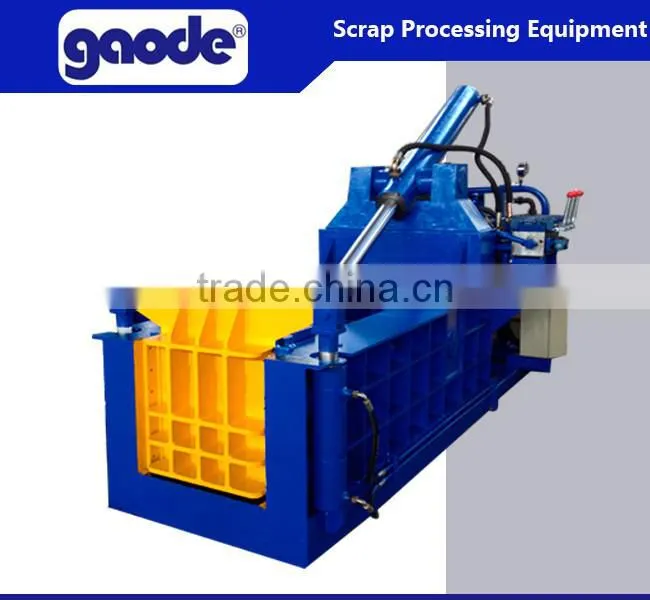

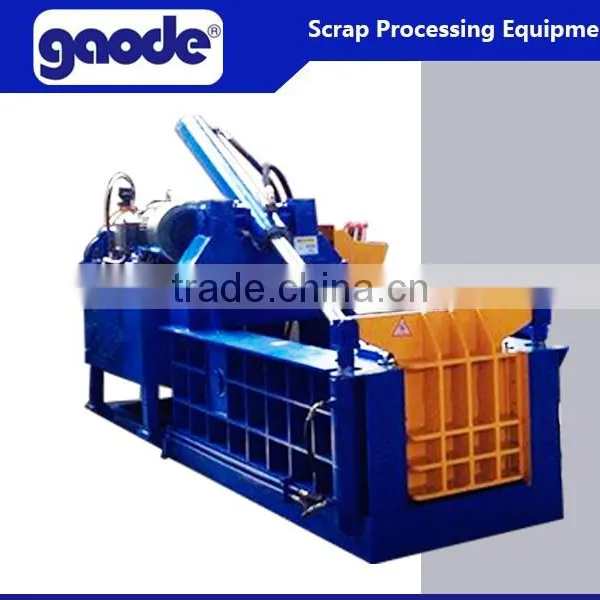

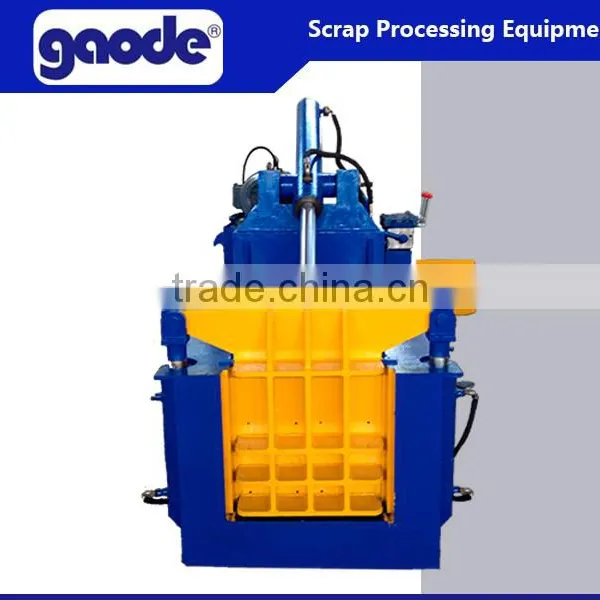

Customized Forward Out Hydraulic Scrap Metal Compress Machine
Applications Of Customized New Forward Out Hydraulic Scrap Metal Compress Machine:
HC81Q-1350 hydraulic metal baler is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features Of Customized New Forward Out Hydraulic Scrap Metal Compress Machine:
1, Hydraulic drive , manual valve control or PLC control .
2, Bale-discharging:" forward-out" .
3, No footing bolts needed in installation ; diesel engine can be equipped for power.
Technical Specifications Of New Forward Out Hydraulic Scrap Metal Compress Machine:
NO | TECHNICAL SPECIFICATIONS | REMARKS | ||
1 | Nominal Force | 1350KN |
| |
2 | Press Box Size | 1100*600*600mm | L*W*H | |
3 | Bale Size | 600*300mm | L*H | |
4 | Bale Density | ≥1800 kg/m3 |
| |
5 | Capacity | About 2300 kg/h |
| |
6 | Operation & Control | Manual valve |
| |
7 | Bale Discharging | Forward-out |
| |
8 | Cycle Length | App.85Sec |
| |
9 | Hydraulic System Pressure | ≤26.5MPa |
| |
10 | Motor | Model | Y180M-4 |
|
Nominal Power | 18.5KW |
| ||
Nominal Speed | 1470rpm |
| ||
Quantity | 1 set |
| ||
11 | Piston Pump | Model | 80YCY14-1B |
|
Nominal Outflow | 80ml/r |
| ||
Nominal Pressure | 31.5MPa |
| ||
Quantity | 1 set |
| ||
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification
Welcome To Our Factory
Nancy
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd---China factory
Add: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Mobil/What's App : +86-15261635390 (24/7)
Tel: 86-510-86996082
Fax: 86-510-86993993
1,Q;Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
