Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | GAODE | Model Number: | HC83-2500 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Full automatic hydraulic tile press machine on sale
Application:

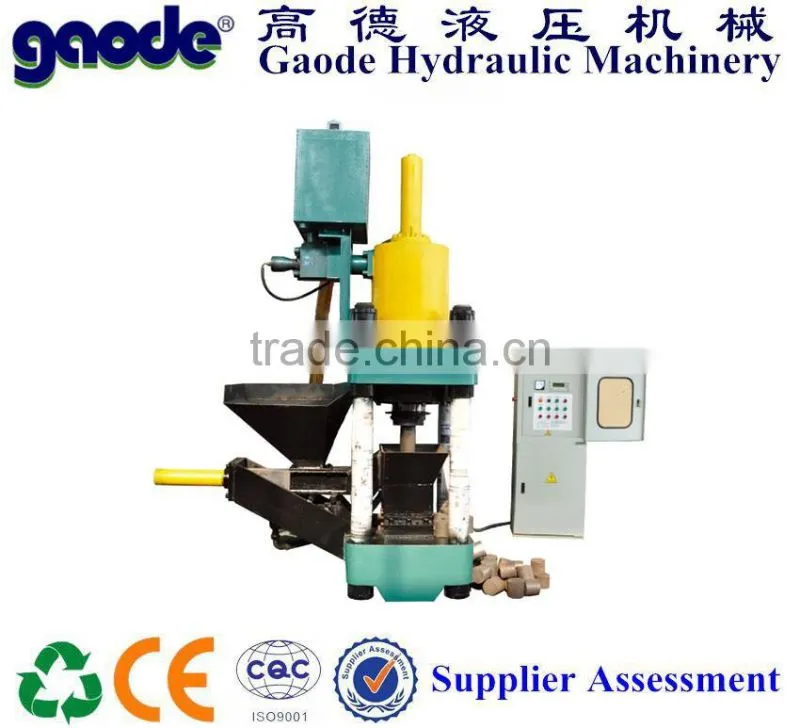

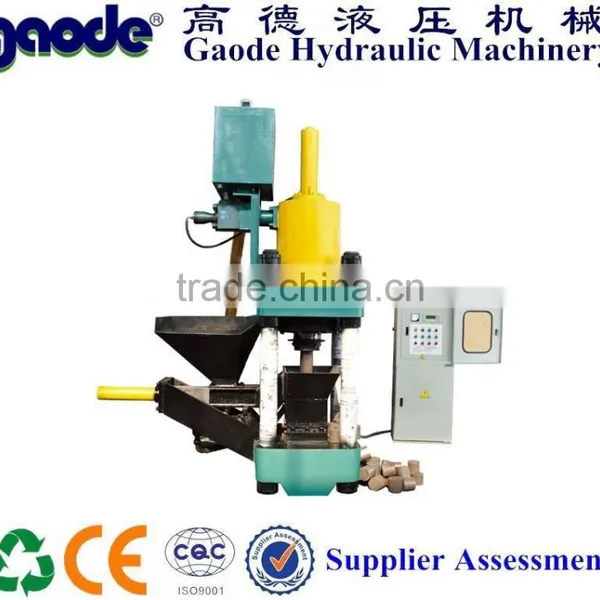

HC83 series of metal chip briquetting presses are applied to compress metal sawdust(steel, cast iron,aluminum& copper) into cylindrical briquets of high density to reduce buring loss in smelting, easy for recycling and smelting. Cast iron sawdust, after pressed into briquets, can be substituted for raw iron.
Features:
1. Hydraulic drive. operation stable,no vibration. safe& reliable.
2.Simple foundation needed.
3.PLC control adopted; user can choose manual or automatic operation.
Technical Specifications:
| Type | Nominal Force | Briquet Size(mm) | Pressure on Briquet(Mpa) | Power (kw) | Capacity(kg/h) |
HC83-2500 | 2500KN | Φ110*(50-60) | 236 | 18.5 | 800 cast iron sawdust |
| HC83-3150 | 3150KN | Φ125*(50-60) | 250 | 22 | 1200 cast iron sawdust |
| HC83-5000 | 5000KN | Φ110*(50-60) Φ140*(50-60) | 500 325 200 | 30-45 | 1200 lead sawdust 1500cast iron sawdust 3500 red brass sawdust |
Packaging Detail: in nude or as your demand
Delivery Detail: 35 days
Jiangyin Gaode Hydraulic Machinery Co,Ltd. We are the professional manufacture of hydraulic machinery and scrap proccessing equipment . As we all known, there are abundant technical force, advanced test equipment and technology and completed testing means.
The products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, materials recovery facility and so on
.
