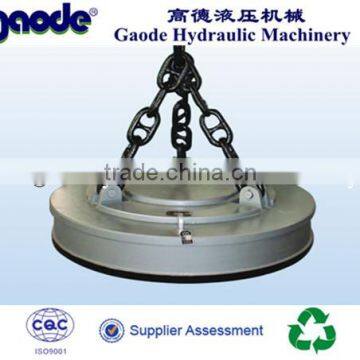

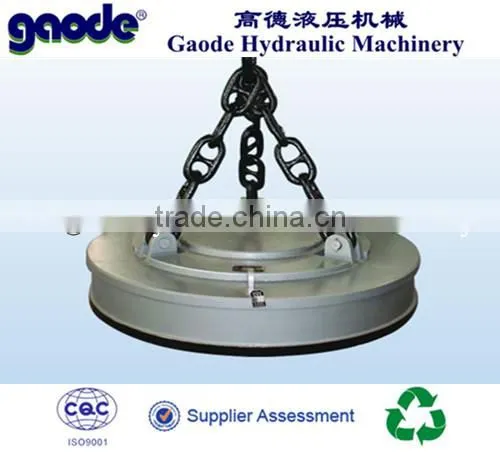

Nomal Temperature Steel Scrap Lifting Magnet for crane or excavator

Specifications

1.be used for lifting
2.hold magnet-conductive materials
3.totally sealing structure with good property of moisture-proofing.

High Lifting Capacity Electromagnet







Main Features:



1.Adopt totally sealing structure with good property of moisture-proofing.

2.Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption.

3.The energizing coils are processed by special technology to improve the electrical property and mechanical property of the energizing coils. Heat-resistant grade of insulating material reaches C with long service life.

4.Rated power-on sustaining rate of normal type electromagnet is increased from 50% in the past to 60% ,with improves the efficiency of the electromagnet.

5.High temperature type electromagnet adopts unique method of heat-protection, the temperature of the attached materials is increased from 600°C in the past to 700°C, which expands application range of the electromagnet.

6.Simple and convenient installation, operation and maintenance.





Main technical data for normal temperature type(used under normal temperature, power-on sustaining rate TD-60%, DC-220V)

Model Attention			MW5- 70L/1	MW5- 110L/1	MW5- 130L/1	MW5- 150L/1	MW5- 165L/1	MW5- 180L/1	MW5- 210L/1	MW5- 240L/1
dimension		A	700	1100	1300	1500	1650	1800	2100	2400
		B	800	1080	1210	1220	1230	1470	1800	2020
Mass (kg)			500	1250	2050	2700	3400	4100	6800	9000
Power			3.2	7	11.9	15.6	19.8	22.4	27.9	33.9
Cold-state current (A)			14.7	35.1	54	71	90	102.4	127	154
lifting capacity (kg)	steel ball		2500	6500	8500	11000	13000	14500	17000	26000
	steel ingot		380/200	1000/800	1400/1100	1900/1500	2300/1800	2750/2100	3200/2500	4800/3800
	steel scrap		120/100	450/400	700/600	1100/900	1350/1040	1600/1350	2000/1600	2850/2250



Note: The technical data of lifting electromagnet used for diving is same as that of the normal temperature type electromagnet.



Main technical data for high frequency type(used under normal temperature, power-on sustaining rate TD-75%, DC-220V)

Model Attention			MW5- 110L/1-75	MW5- 130L/1-75	MW5- 150L/1-75	MW5- 165L/1-75	MW5- 180L/1-75	MW5- 210L/1-75	MW5- 240L/1-75
dimension		A	1100	1300	1500	1650	1800	2100	2400
		B	1270	1290	1360	1670	1600	1900	2020
Mass (kg)			1500	2280	3180	3840	4690	7500	9800
Power (kw)			6.1	9	11.3	12.2	16.3	21.7	25.9
Cold-state current (A)			27.7	40.9	51.4	55.5	74.1	98.6	117.7
lifting capacity (kg)	steel ball		6500	8500	11000	12500	14500	21000	26000
	steel ingot		1000/800	1400/1100	1900/1500	2300/1800	2750/2100	3500/2800	4800/3800
	steel scrap		450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250



  Points for attention when choosing model:

1.If temperature of the attached material is below 100°C, please choose normal temperature type. If it is above 100°C, please choose high temperature type.

2.When power-on sustaining rate is above 60%, please choose high frequency type.

3.When lifting and transporting material in water, please choose diving type(depth of diving≤100m). The technical data of diving type electromagnet is same as that of normal temperature type. If customers need diving type, please state clearly when ordering.

4.Environment temperature: normal temperature type -20°C~40°C, high temperature type -20°C~80°C. Height above sea level is no more than 2,500m.

5.Corollary equipment: when using single unit, choose commutation control equipment and its accessory equipment according to consumed power(current); when using combination of several units, choose according to the sum of the consumed power(current) of the combined units.
