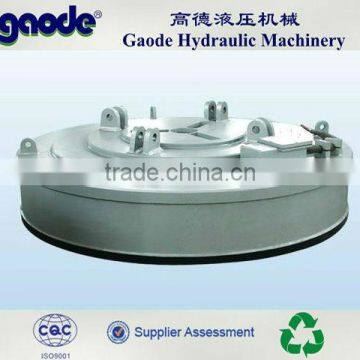

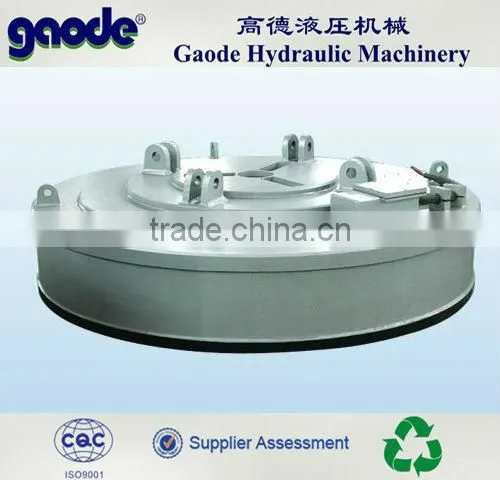

Small Circular Lifting Electromagnet

Specifications

1.be used for lifting and transporting magnet-conductive materials
2.to hold magnet-conductive materials.











Main technical data for normal temperature type(used under normal temperature, power-on sustaining rate TD-60%, DC-220V)



Model Attention			MW5- 70L/1	MW5- 110L/1	MW5- 130L/1	MW5- 150L/1	MW5- 165L/1	MW5- 180L/1	MW5- 210L/1	MW5- 240L/1
Dimension		A	700	1100	1300	1500	1650	1800	2100	2400
		B	800	1080	1210	1220	1230	1470	1800	2020
Mass (kg)			500	1250	2050	2700	3400	4100	6800	9000
Power			3.2	7	11.9	15.6	19.8	22.4	27.9	33.9
Cold-state current (A)			14.7	35.1	54	71	90	102.4	127	154
Lifting capacity (kg)	steel ball		2500	6500	8500	11000	13000	14500	17000	26000
	steel ingot		380/200	1000/800	1400/1100	1900/1500	2300/1800	2750/2100	3200/2500	4800/3800
	steel scrap		120/100	450/400	700/600	1100/900	1350/1040	1600/1350	2000/1600	2850/2250



Note: The technical data of lifting electromagnet used for diving is same as that of the normal temperature type electromagnet.





Main technical data for high frequency type (used under normal temperature, power-on sustaining rate TD-75%, DC-220V)



Model Attention			MW5- 110L/1-75	MW5- 130L/1-75	MW5- 150L/1-75	MW5- 165L/1-75	MW5- 180L/1-75	MW5- 210L/1-75	MW5- 240L/1-75
Dimension		A	1100	1300	1500	1650	1800	2100	2400
		B	1270	1290	1360	1670	1600	1900	2020
Mass (kg)			1500	2280	3180	3840	4690	7500	9800
Power (kw)			6.1	9	11.3	12.2	16.3	21.7	25.9
Cold-state current (A)			27.7	40.9	51.4	55.5	74.1	98.6	117.7
Lifting capacity (kg)	steel ball		6500	8500	11000	12500	14500	21000	26000
	steel ingot		1000/800	1400/1100	1900/1500	2300/1800	2750/2100	3500/2800	4800/3800
	steel scrap		450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250



Points for attention when choosing model:

1. If temperature of the attached material is below 100°C, please choose normal temperature type. If it is above 100°C, please choose high temperature type.

2. When power-on sustaining rate is above 60%, please choose high frequency type.

3. When lifting and transporting material in water, please choose diving type(depth of diving≤100m). The technical data of diving type electromagnet is same as that of normal temperature type. If customers need diving type, please state clearly when ordering.

4. Environment temperature: normal temperature type -20°C~40°C, high temperature type -20°C~80°C. Height above sea level is no more than 2,500m.

5. Corollary equipment: when using single unit, choose commutation control equipment and its accessory equipment according to consumed power(current); when using combination of several units, choose according to the sum of the consumed power(current) of the combined units.
