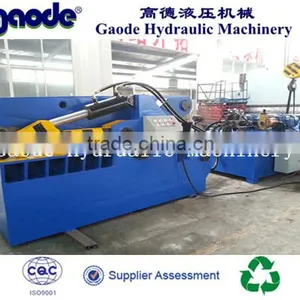

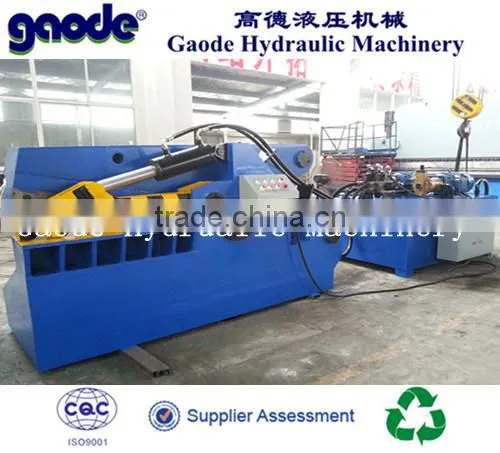

Reasonable price safe durable discarded automobiles shear
Technical Specifications:
No. |
TECHNICAL SPECIFICATIONS |
||||||
1 |
Max Shear Force |
2000KN |
|||||
2 |
Max Holding Force |
250KN |
|||||
3 |
Shearing Frequency |
9~16 times/min |
|||||
4 |
Height of Working Table |
740 mm |
|||||
5 |
Blade Length |
800mm |
|||||
6 |
Max Blade Opening |
380mm |
|||||
7 |
Hydraulic System Pressure |
21.5MPa |
|||||
8 |
Control System |
Hydra-electrical Valves; Push Button to Control |
|||||
9 |
Shearing Material Size |
Round Steel |
Ø80MM |
||||
Square Steel |
70*70 MM |
||||||
10 |
Motor |
Model |
Y180M-4 |
Quantity |
1 set |
||
Nominal Speed |
1460rpm |
Nominal Power |
18.5 KW |
||||
11 |
Hydraulic Pump |
Model |
80YCY14-1B |
Quantity |
1set |
||
Nominal Outflow |
80ml/r |
Nominal Pressure |
31.5MPa |
||||
Product Flow:
Packaging Detail: in nude
Delivery Detail: 20-25 working days
Exhibition:
Factory:
Jiangsu Gaode Hydraulic Machinery Co,Ltd. We are the professional manufacture of hydraulic machinery and scrap proccessing equipment . As we all known, there are abundant technical force, advanced test equipment and technology and completed testing means.
The products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, materials recovery facility and so on.
Jolie
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Tel: +86 510 86996082/ 15261635390 (7*24 hours online service)
Fax: +86 510 86993993
