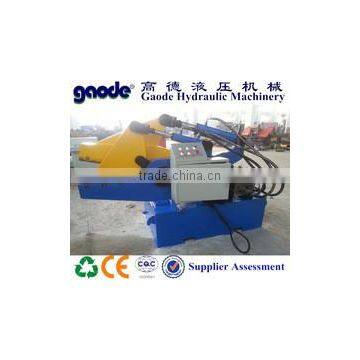

Press Button HC43-630 Hydraulic Mini Scrap Alligator Shear
Applications:
HC43 serises of hydraulic metal shears are applied in recycling companies,automobile
dismantling plants,smelting&casting industry to cold-shear section steel and
metallic structural parts into acceptable furnace sharges.
Features:
1,Adopting hydraulic drive,HC43 series feature simple operation&easy maintenance.
It's safe and realizable.
2,Shear force 9 grades from 63 to 500 tons;blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm;
3, No footing bolts needed in installation;diesel engine can be equipped for power.
Specifications
No. |
Projects |
Units |
Quantity |
1 |
Maximum Shear Capability |
KN |
630 |
2 |
Maximum Pressure Capability |
KN |
120 |
3 |
Maximum Cutting Blade Opening |
MM |
300 |
|
4
|
Length of Cutting Blade |
MM |
600 |
5 |
Shearing times of per minutes |
times/min |
9-16 |
6 |
System Work Pressure |
Mpa |
21 |
7 |
Motor |
Model |
Y132M-4 |
Power |
7.5KW |
||
8 |
Oil pump |
Model |
40YCY14-1B |
displacement |
40ml/r |
||
9 |
Size of Sheared material (mm) |
Round Steel |
Ø 30 |
Square Steel |
25*25 |
||
Steel Angle |
40*40*4 (three pcs) |
||
Steel Channel |
100*43*5.5 |
||
Plate |
14*100 |
Certificate:
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
