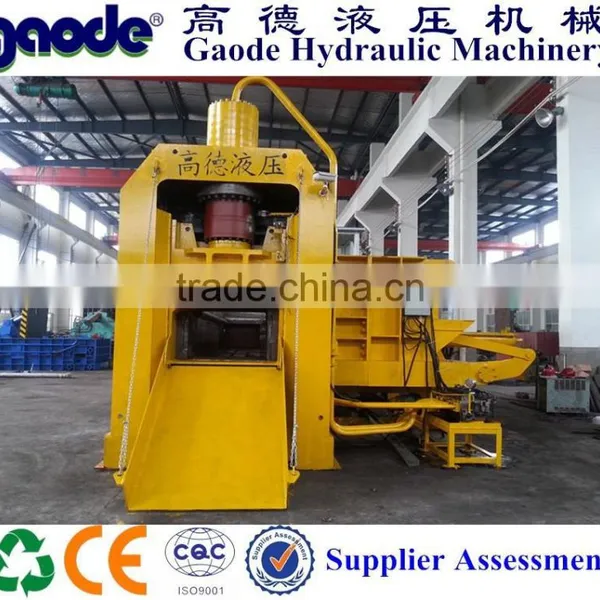

touch screen automatic control heavy shear equipment
- 10 Set / Sets per Month
- Shanghai
-
Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
-
Best price cnc table plasma cutting machine with water table
-
High-power cnc plasma cutting machine 1530
-
REBOUND CNC table plasma cutting machine for metal 1.5x3m
-
REBOUND CNC new automatic plasma cutting machine with good price
-
table cnc best price modern plasma cutting machine for stainless
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | gaode |
| Model Number: | Q91Y | Voltage: | user define | Rated Power: | 135KW |
| Dimension(L*W*H): | 12*5*4m | Weight: | about 85 tons | Certification: | ISO9001:2008;CE;SGS;TUV |
| Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
|
No. | Technical parameter | Remarks | ||
1 | Press box size (L*W*H)(MM) | 5000*2000*1650 |
| |
2 | Bale size(L*W*H)(MM) | 5000*700*780 |
| |
3 | Cutting/Side thrust hydraulic working pressure | 25Mpa/20Mpa |
| |
4 | Shear blade length | 900MM |
| |
5 | Holding length | 840MM |
| |
6 | Power | 135KW |
| |
7 | Power supply voltage | 380V/3HP 50HZ | Customize by order | |
8 | Cutting degree | 10degree |
| |
9. | Frequency of cutting | 3 times/min(unloading) |
| |
10 | Heating system | Electrical heating | ||
Applications:
The hydraulic baler & shear machinery is suitable for the cutting of scrap materials. Metal pieces are pressed 2- or 3-dimensionally by using the pressing lid, wing and feeding pusher, and cut or broken into pieces.
The machine is able to :
1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies
Gaode has fully testing equipment to ensure productivity and quality.
Gaode product will be tested in the factory line before packed.
Gaode product is strongerly fixed by steel wires when loading.
China famous trade mark
Thirteen years focused on Recycling Equipment.
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
Contact information:
Tracy
Skype: bellabest4
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Tel: +86 15896491581(24 hours service) | Fax: +86 510 8699399

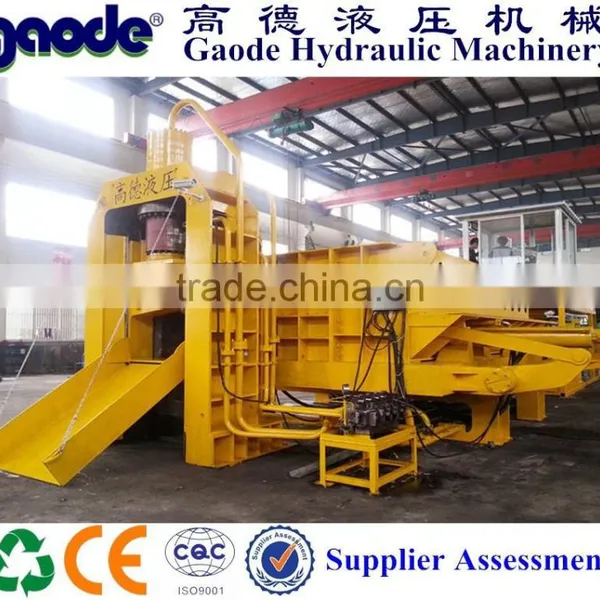

The finished products:
