Backhoe Wheel Rock Loader With 2500kg
Product Introduction

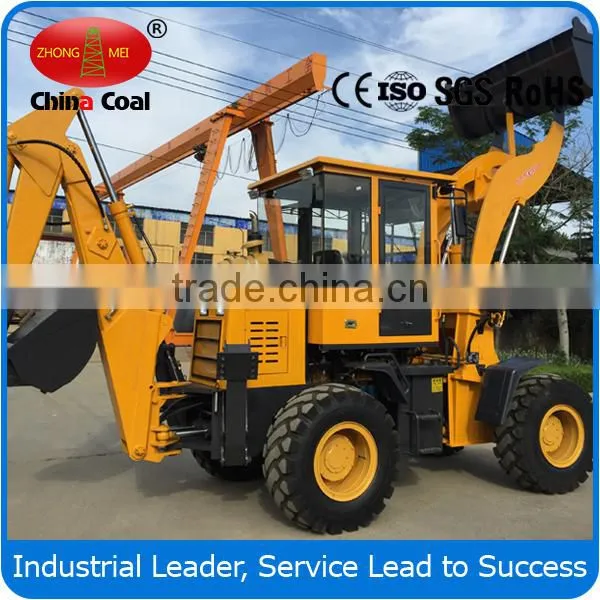

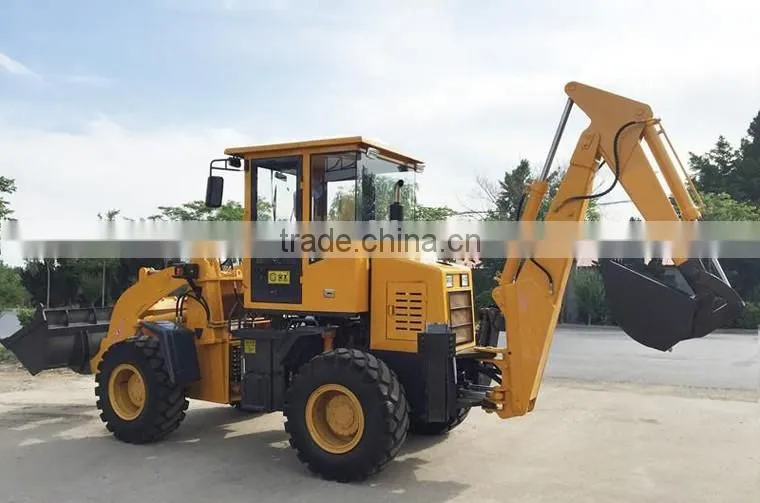

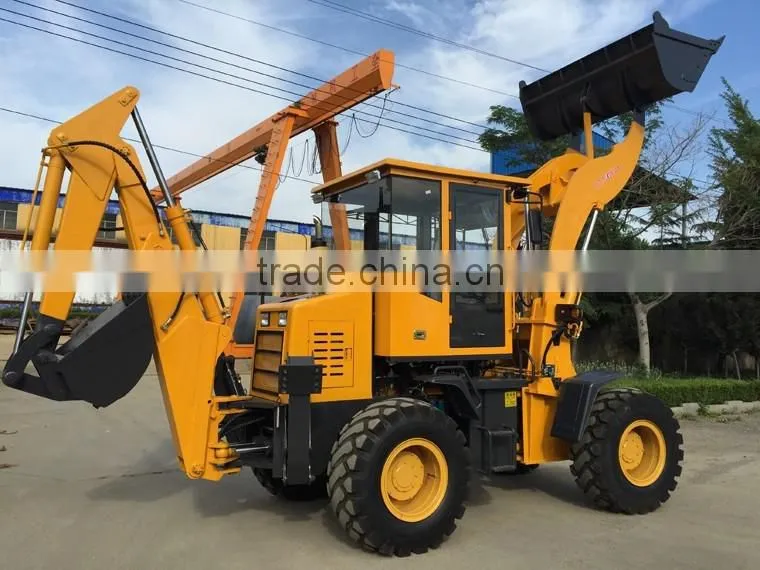

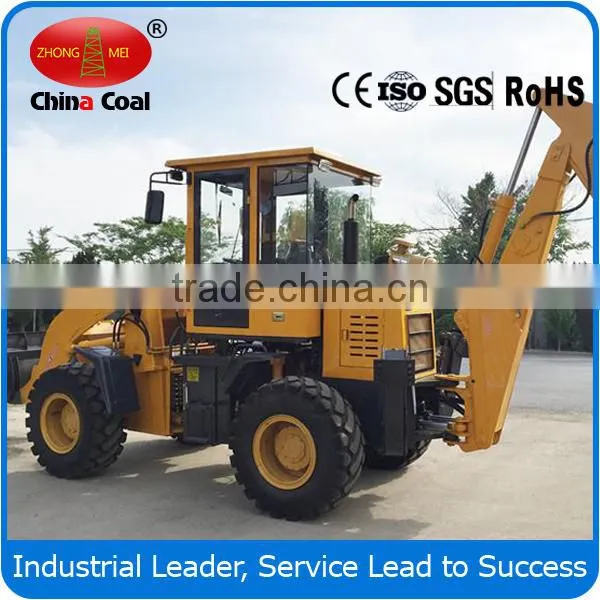

WZ25-20 Backhoe Wheel Rock Loader

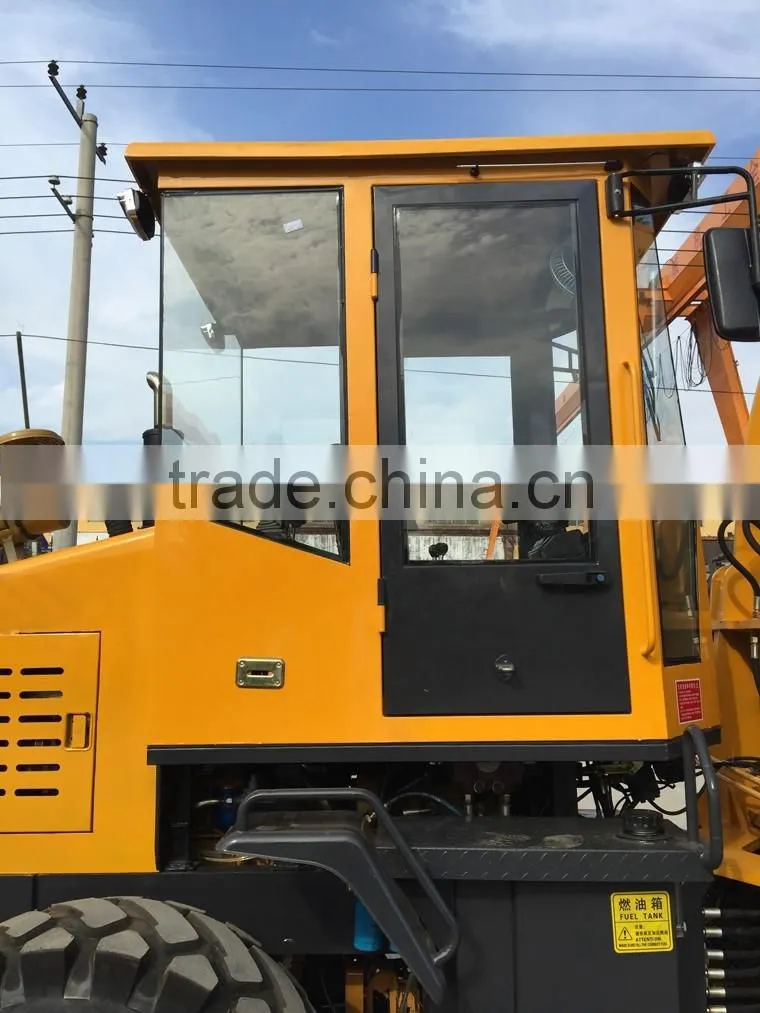

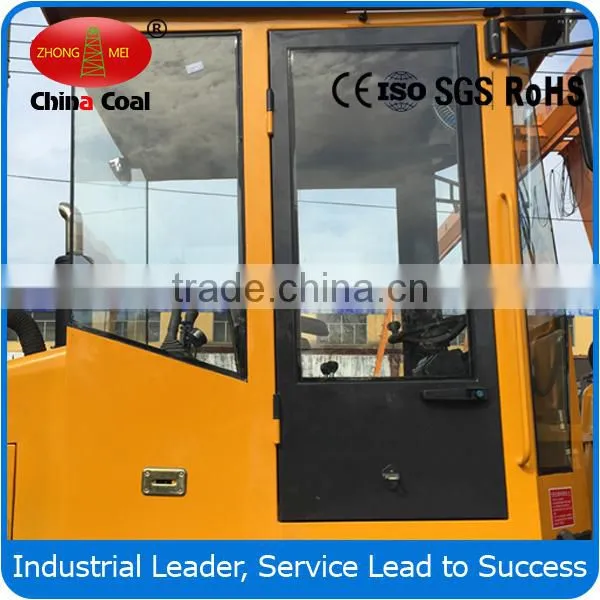

1. the enlarged driver's cab, safety glass. Luxurious shock absorber seat.
2. twist type carframe,small turning radius, variable speed,full hydraulis steering,easy and convenient operation
3. using famous brand hydraulic parts, double pumps confluence, strong power
4. digging section adopting the pilot through transport operation which is light with accurate positioning
5 .there is digging equipment and wing type leg which is much stabler than the other forms of digging device when smashing rocks and Deep excavation
6. Equipped with multinational pipline which can work with a variety of options to meet needs of different users
Main Parameter
WZ25-20 technical data | |
Loading bucket capacity | 1.1 m3 |
Rated load capacity | 2500kg |
Max. breakout force | 49KN |
Max. Traction | 38kn |
Tipping load | 32KN |
Forward I gear shift | 0-11km/h |
Forward II gear shift | 0-27km/h |
Reverse I gear shift | 0-10km/h |
Reverse II gear shift | 0-26km/h |
Dumping height | 2800mm |
| 880mm |
Dumping reach when at max. dumping height | |
Capacity of excavator bucket | 0.3 m3 |
Max. excavating depth | 4100mm |
Max. excavating radius | 5000mm |
Revolute angle of movable arm | 180° |
Engine | 4102 booster |
Rated power | 60kw |
Rated speed | 2400r/min |
Max. steering angle (L/R) | 35° |
Grade ability | 45% |
| 4190mm |
Min. turning radius (front wheel center) | |
Operation weight | 6100kg |
Size(L*W*H) | 7100mm*2090mm*2900mm |
Drive type | 4WD |

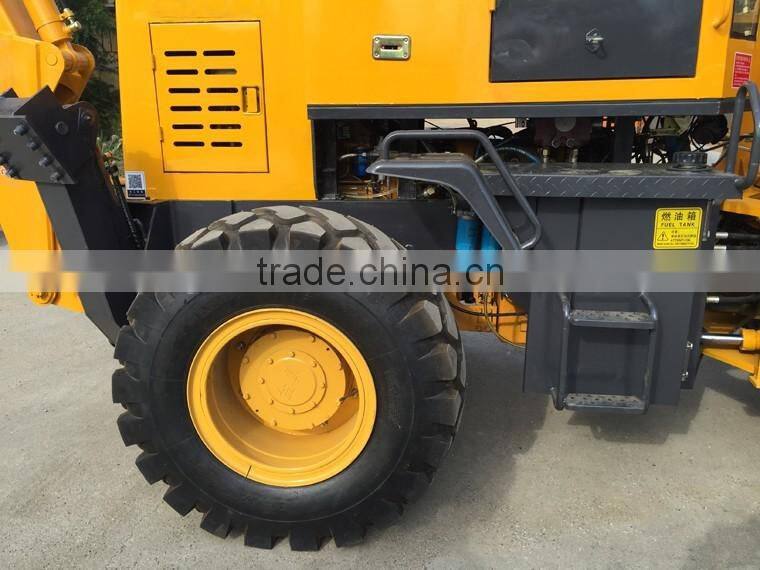

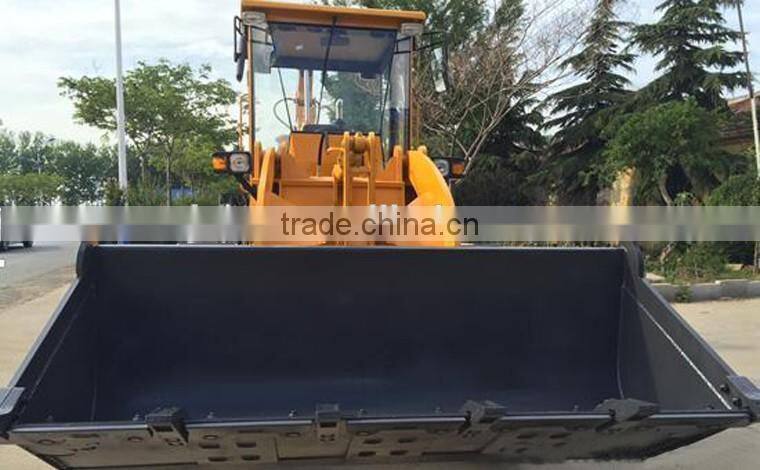

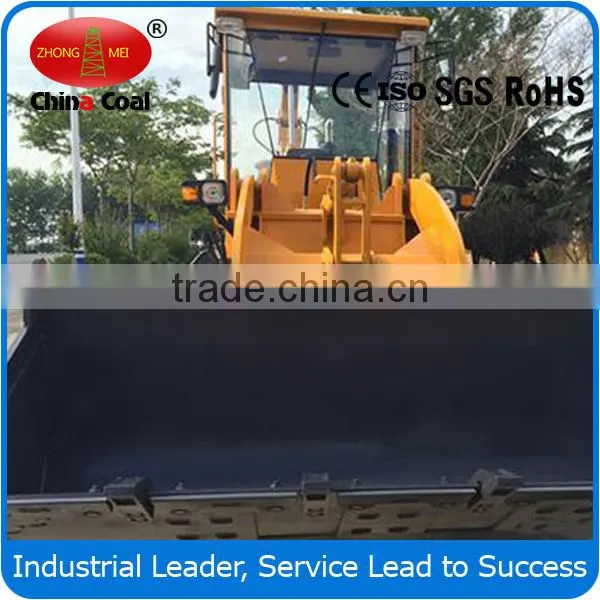

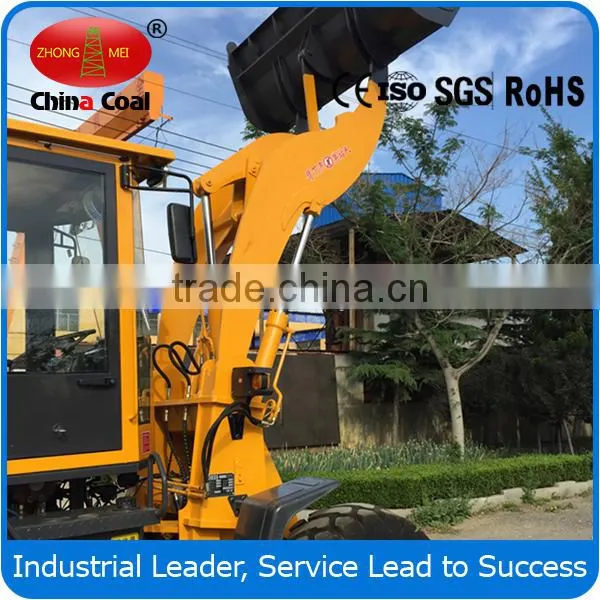

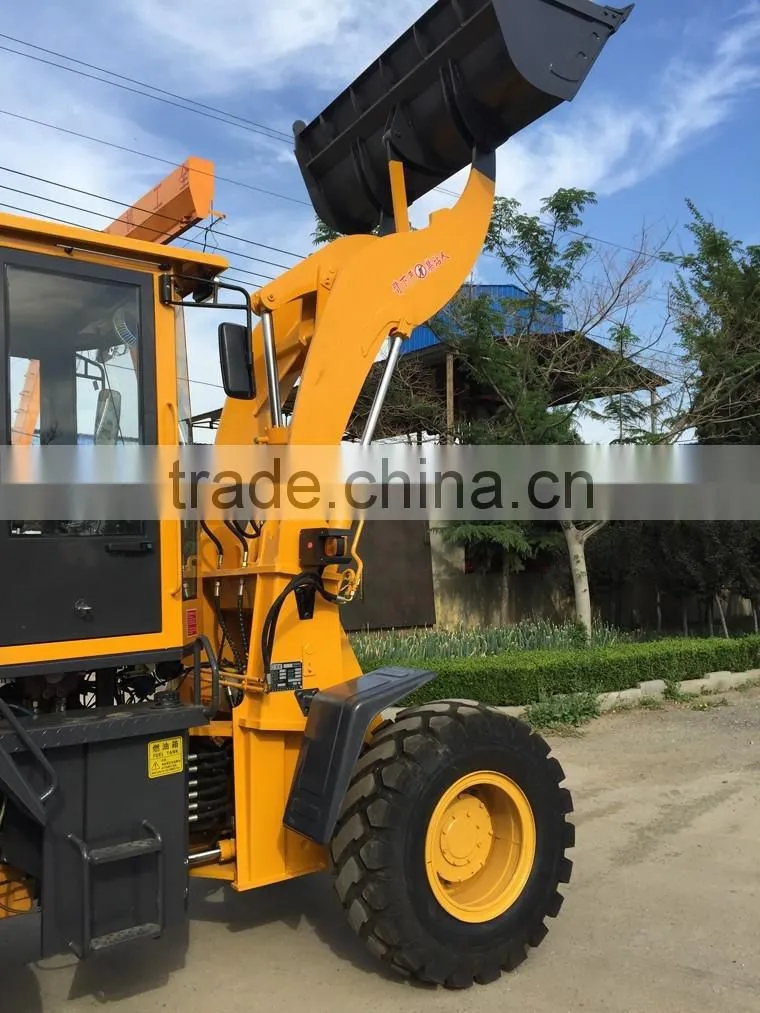

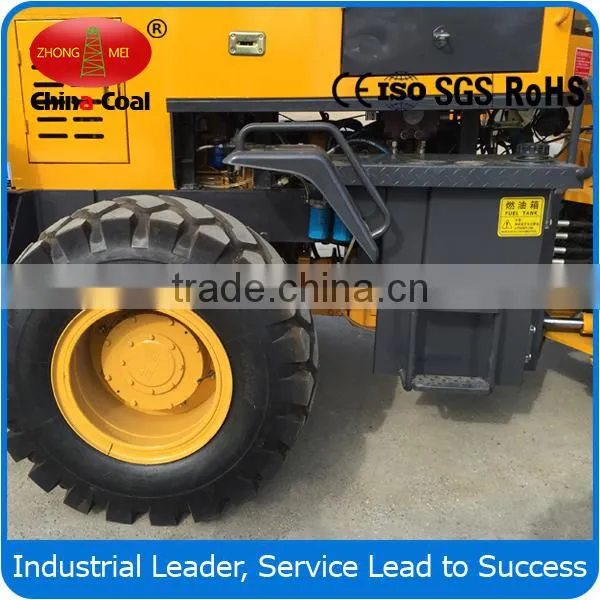

Figure Photos

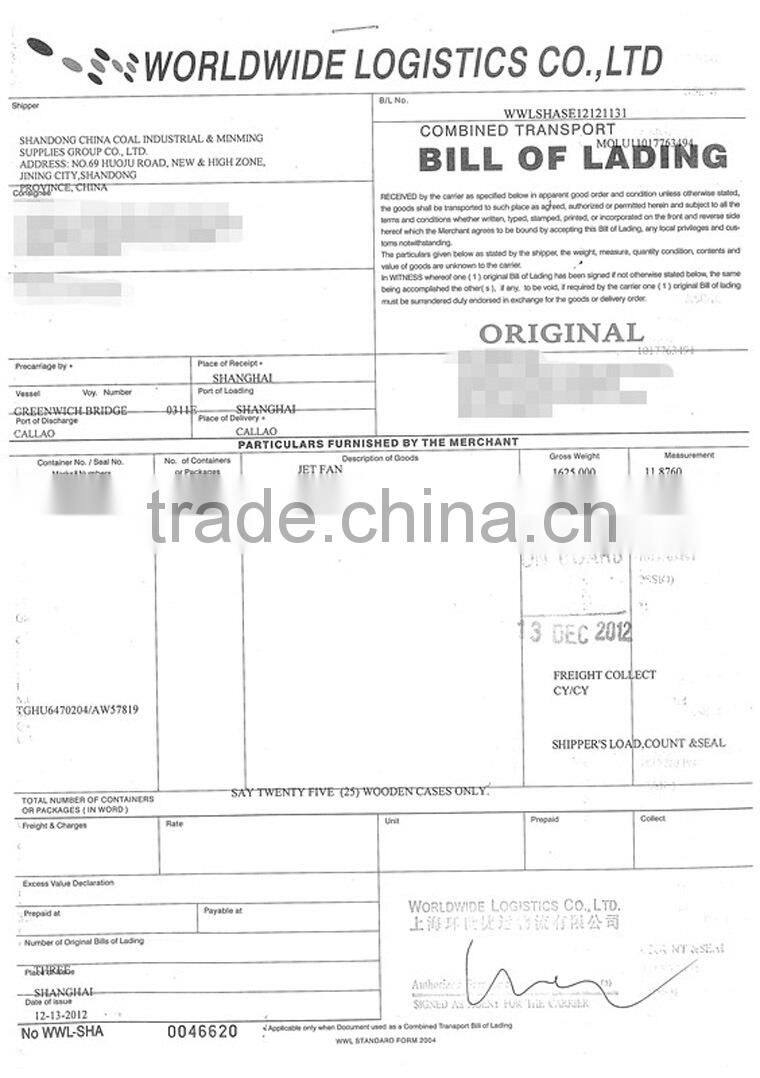

B/L
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s. With world-class production ability, specialized technical support, and valued service, our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, Southeast Asia and other more than 140 countries and regions.
