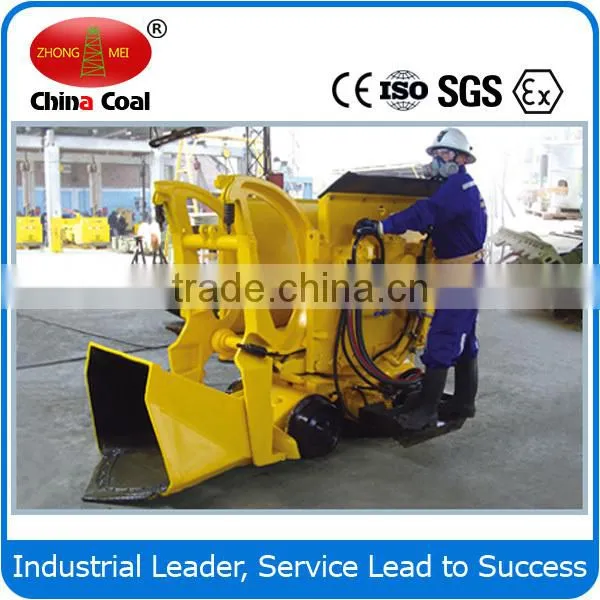

Underground Mining Use Wheeled Rock Loader Electric Rock Loader

Product Introduction

Mining use Rock Loader

ZM17AW rock laoder is used to load the rock, ore when the explosive blows up the big rock or ore. Loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, and etc. The max. diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, pls tell in advance.

Main Parameter

1. 1. bucket volume: 0.17+-0.017M3
2. 2. technique productivity:more than30M3/h

3. Loading width: more than1700mm

4. unload height: more than1210m

5. unload distance:more than270m

6. max. working height: 1920m

7. gauge: 600mm

8. wheel diameter: 850mm

9. transfer overall dimension: (L*W*H): 2120*1056*1260mm

10. electric motor: speed: 750r/min; working motor power: 10.5kw as your requirement; take up the bucket power: 10.5kw as your requirements.

11. voltage: 380v

12. working speed: about 0.85m/s

13. bucket promoting speed: 0.46-0.71m/s

14.  weight: 3500kg

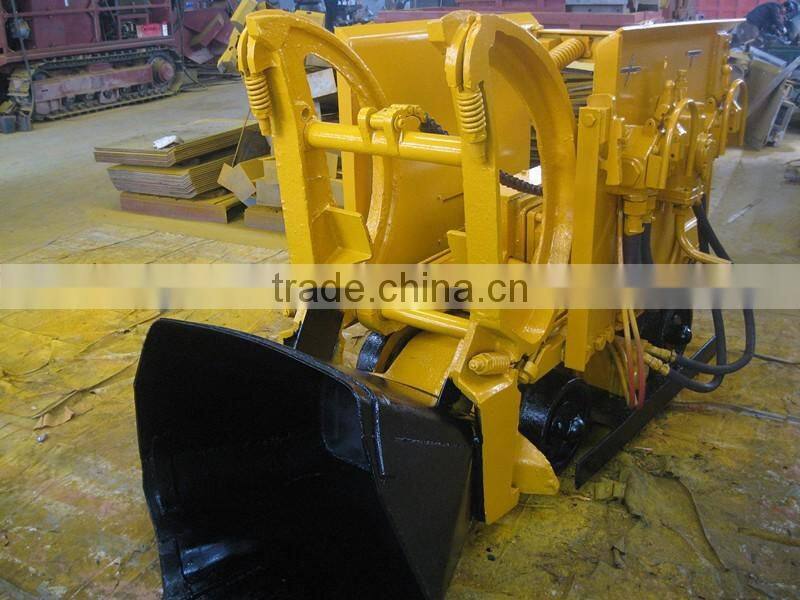

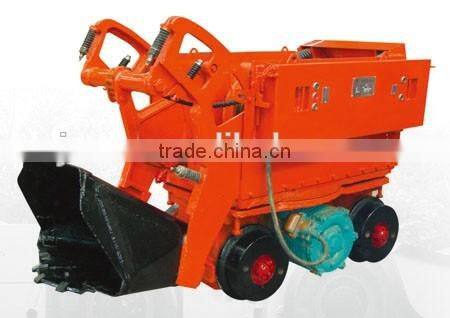

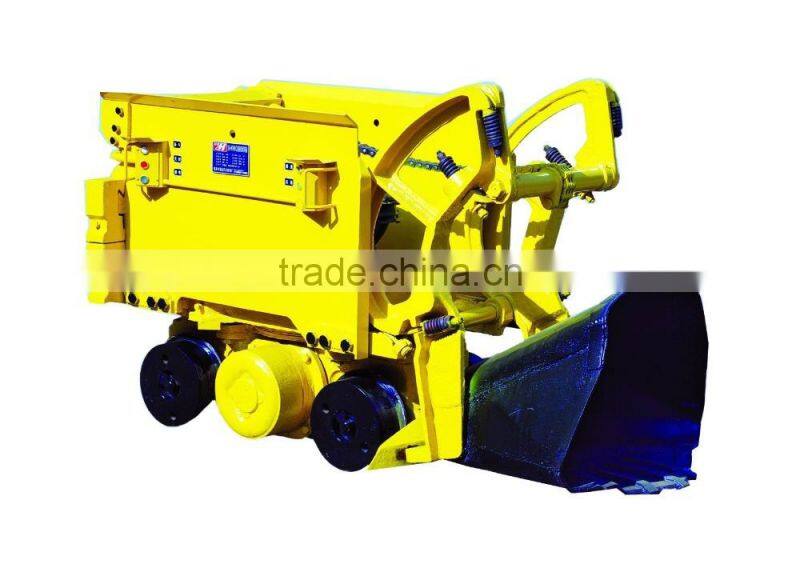

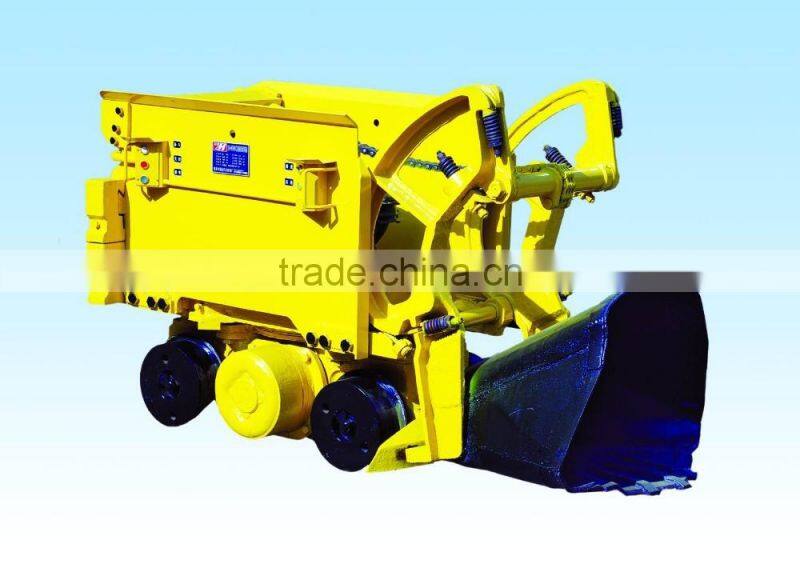

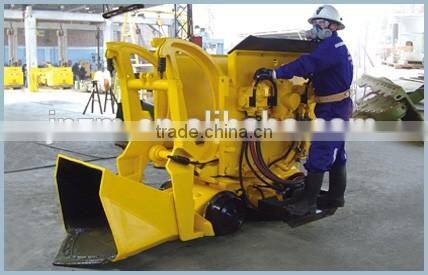

Figure Photos

B/L of The History Trading
