Product Introduction
· A fully powered pallet truck which can lift and
transfer pallets quickly and easily.
· Convenient fingertip raise and lower buttons.
Easy-to-operate throttle offers infinite forward and reverse speeds.
· Safety features include a horn,an electromagnetic brake and belly reverse button.
· 24V maintenance free batteries and battery charger.
· Excellent stability and reliability.
Main Parameter
Main Parameters |
|
|
|
|
|
|
power type |
| battery | overall widthB | mm | 720 | |
operation type |
| pedestrian | fork dimension(s/e/l) | mm | 50/160/1200 | |
load capacity Q | kg | 1500 | outside width of forksb1 | mm | 540/630 | |
load center C | mm | 600 | ground clearance m | mm | 30 | |
front overhang distance X | mm | 205 | min. width of aisle | mm | 1865 | |
wheelbase Y | mm | 1280 | steering radius Wa | mm | 1465 | |
wheel material |
| Polyurethane | travel speed,laden /unladen | km/h | 3.5/4.0 | |
driving wheel size | mm | Φ250×80 | grade ability,laden | % | 5 | |
balance wheel size | mm | Φ75×35 | brake type |
| electromagnetic | |
front wheel size,tandem | mm | Φ70×70 | driving motor | kw | 0.7 | |
front wheel size,single | mm | Φ74×95 | lift motor | kw | 0.8 | |
balance wheel distance b3 | mm | 485 | battery voltage/capacity | V/Ah | 24/70,24/95 | |
cylinder stroke h3 | mm | 120 | battery weight | kg | 35/51 | |
max. height of forks h2 | mm | 195/205 | net weight | kg | 270/285 | |
min. height of forks h1 | mm | 85 | electric control |
| curtis 1212 | |
overall length L | mm | 1665 |
|
|
|
|

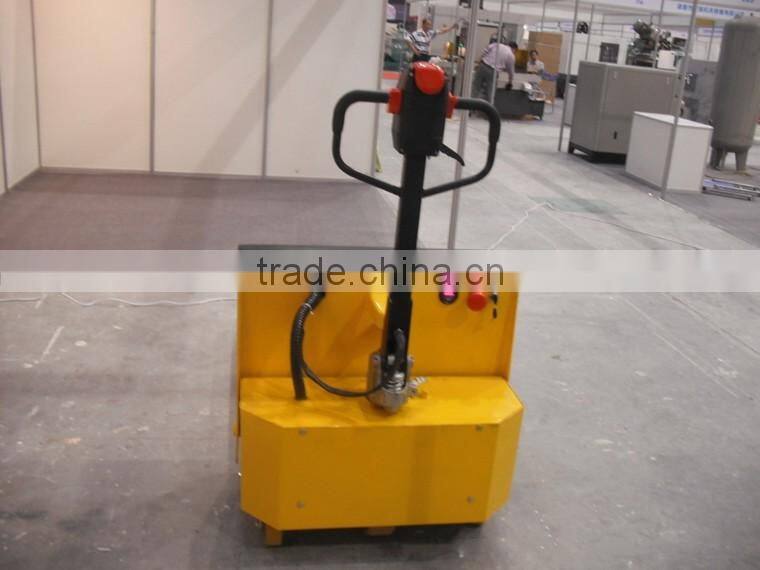

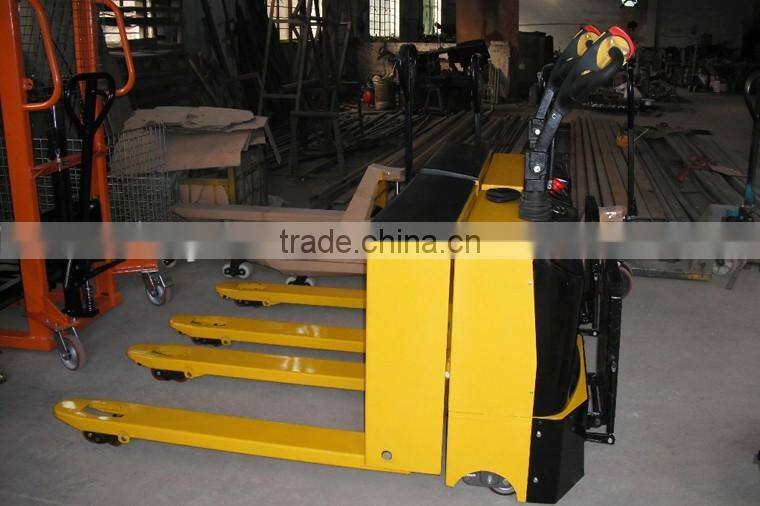

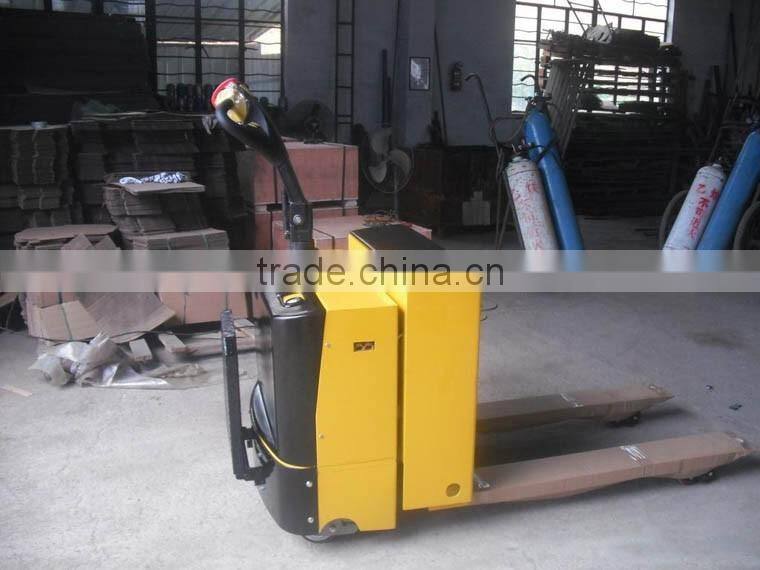

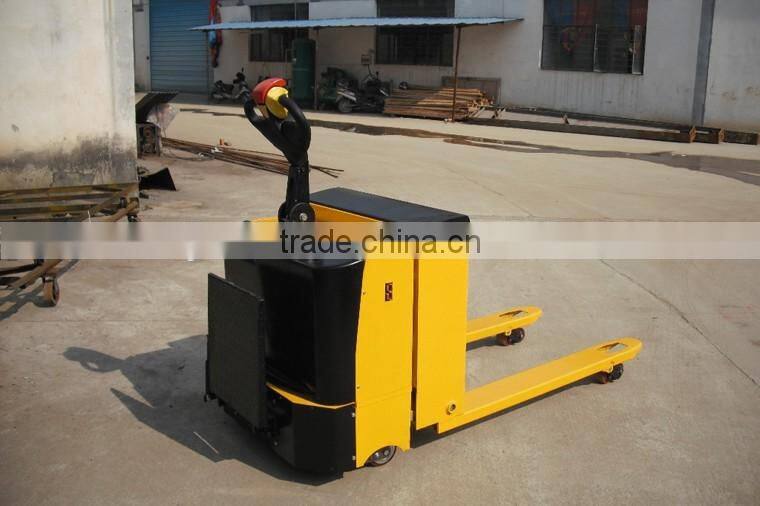

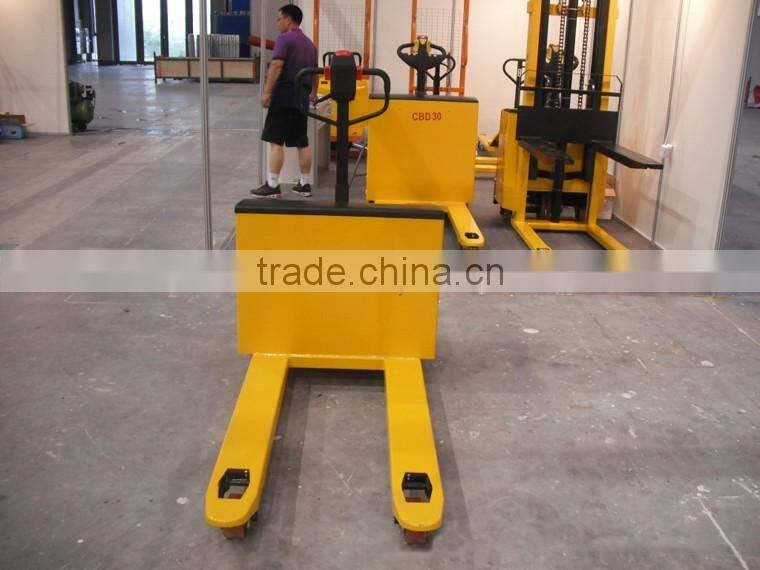

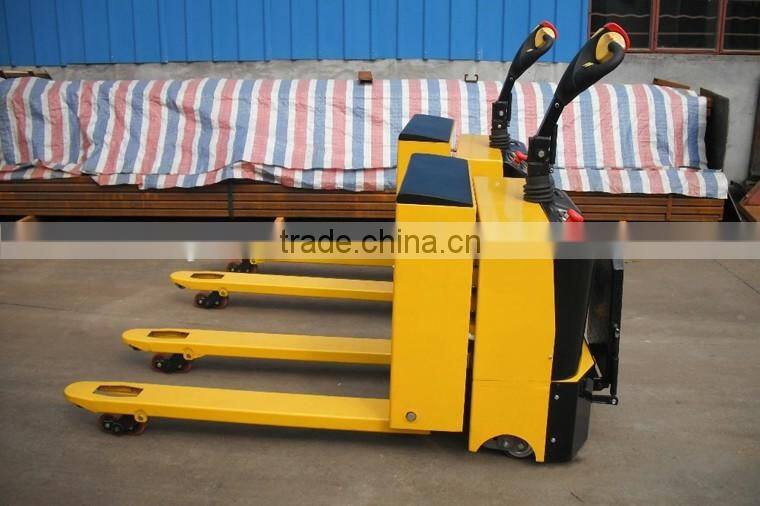

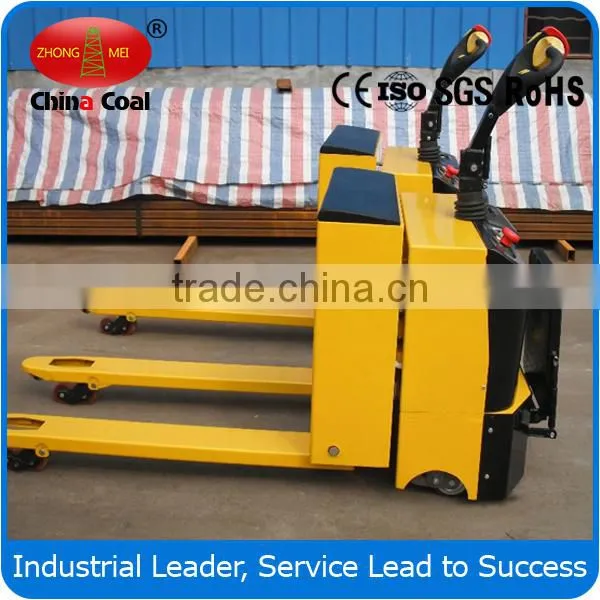

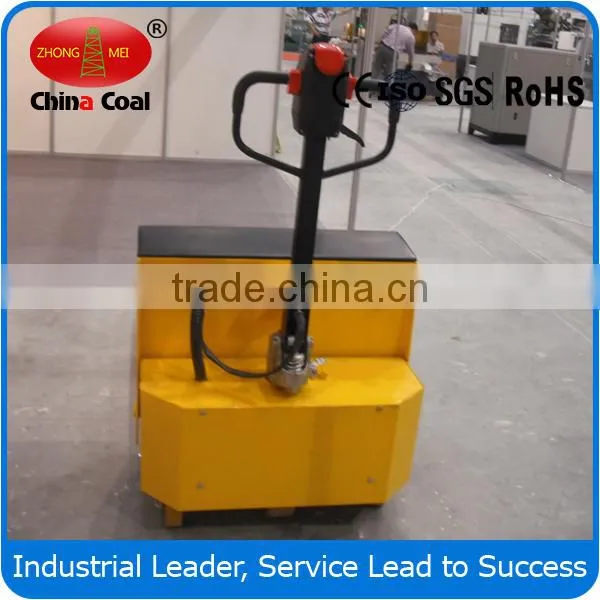

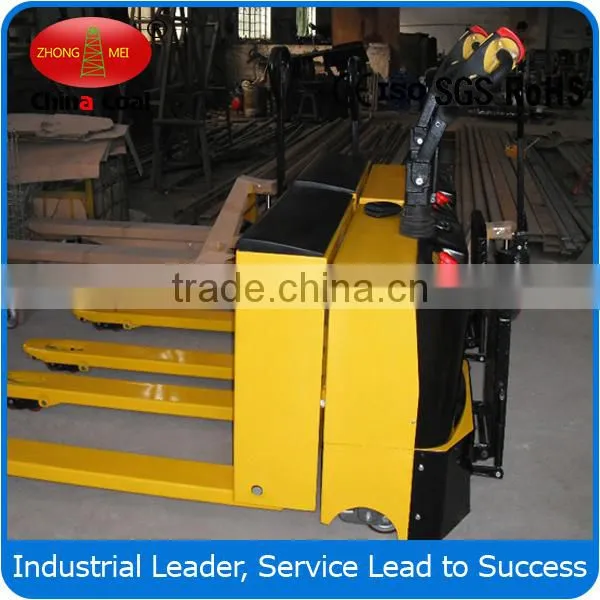

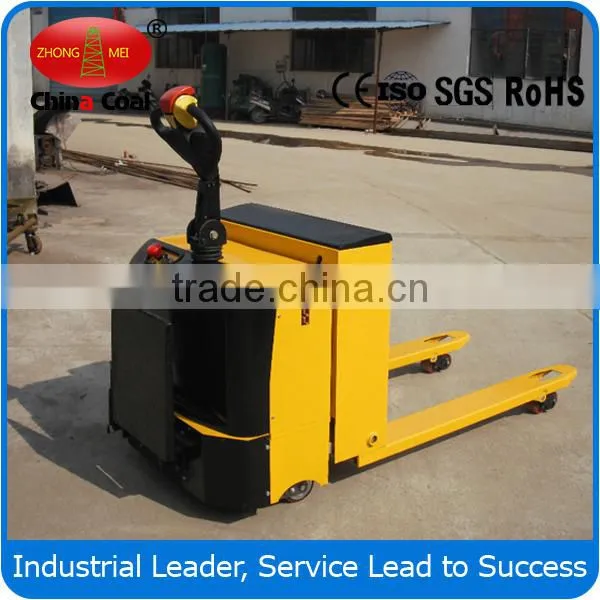

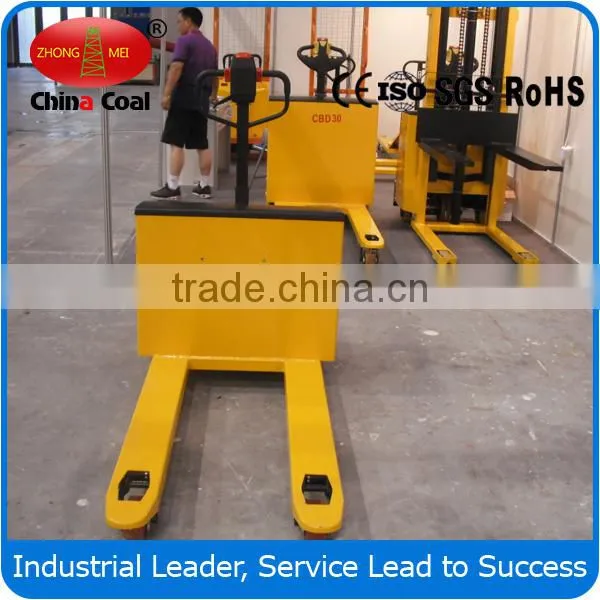

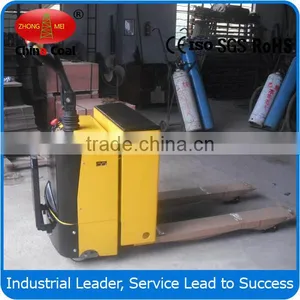

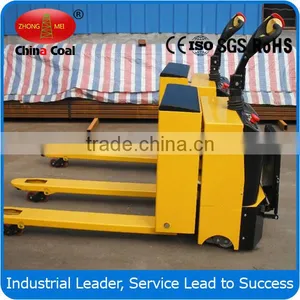

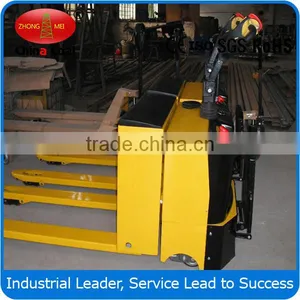

Figure Photos

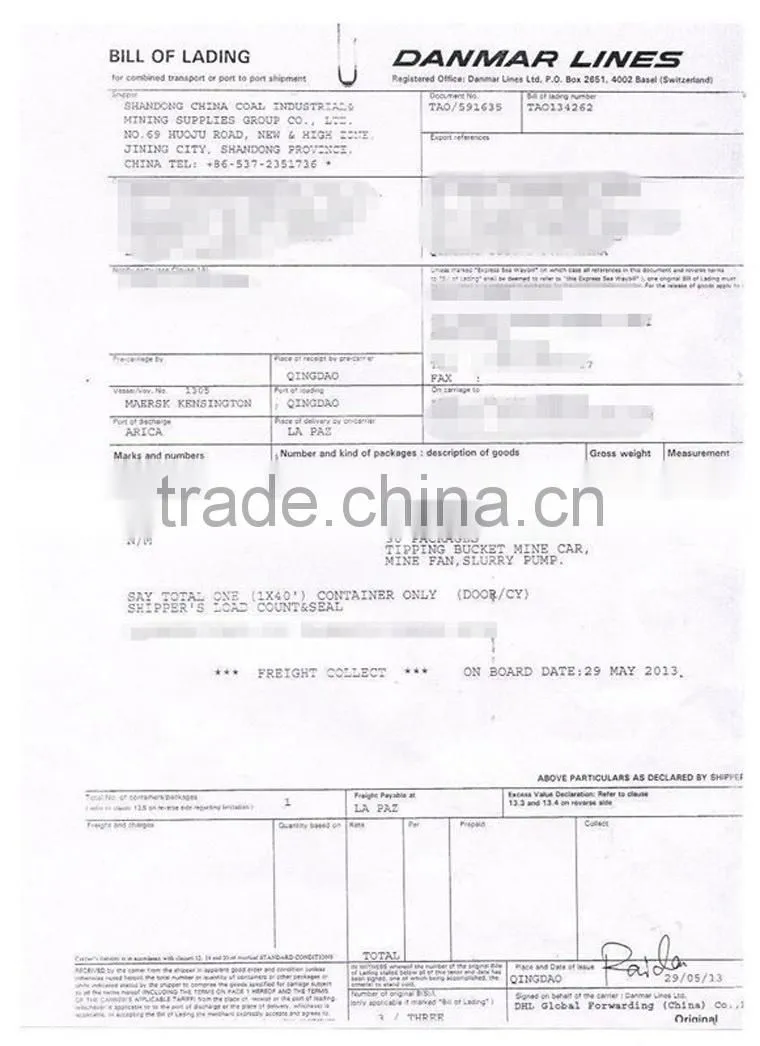

B/L of The History Trading
