Product Introduction
Pneumatic breakers/pneumatic pick/handheld air pick

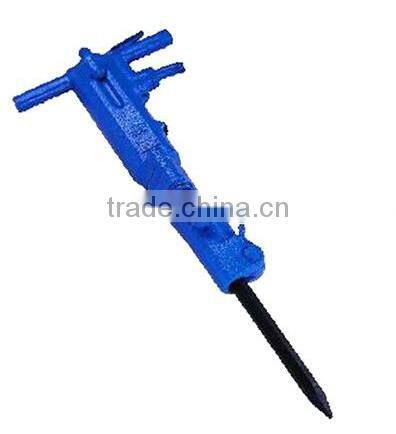

The paving breaker model B87C is tool with compressed air as its power.The compressed air is distributed alternatively through the valve into either end of the cylinder Assembly so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrete foundation and makes them split into huge pieces.
Main Characteristics
1.The pneumatic breaker model B87C is tool with compressed air as its power.
2.The compressed air is distributed alternatively through the distributing valve into every end of the cylinder Assembly so that the hammer inside is made to carry on a reciprocal motion.
Main Parameter
Model |
B47 |
B50 |
B67C |
B87C |
B90 |
length |
550mm |
660mm |
615 mm |
686 mm |
745mm |
weight |
21.5kg |
18kg |
30 kg |
39 kg |
34Kg |
Air pressure |
0.63mpa |
0.63mpa |
0.63mpa |
0.63 Mpa |
0.63 Mpa |
impacting frequency |
21.6hz |
22 hz |
24 hz |
18 hz |
16HZ |
gas consumption |
23l/s |
33 l/s |
42 l/s |
55 l/s |
27L/s |
Bit Head Size |
25×108 mm |
25×108 mm |
25×108 mm |
32×152mm |
32×152mm
|
Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s. With world-class production ability, specialized technical support, and valued service, our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, Southeast Asia and other more than 120 countries and regions.
Our business scope:
Rock drilling machine: Y19A rock drill, YT24,YT27,YT28,YT29A rock drill,YN27C gasoline rock drill
roofbolter: MOT-85,MQT-110,MQT-130 Pneumatic jumbolter MQS-60,MQTB-80 leg pneumatic roof bolter
pneumactic breakers: B47,B67,B87,B90 breakers
TPB40,TPB60,TPB90 pneumatic paving breakers
air tools: G7,G10,G15,G20 ,G35,G60,G90 air pick,C2,C4 chipping hammer

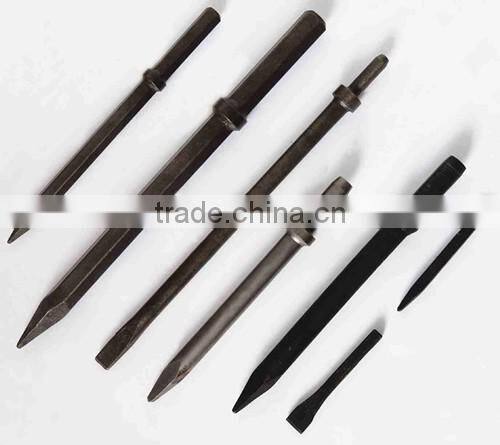

and various drill rod, drill bit(chisel bits,cross bits, button bits)
