Product Introduction
1.Small in size, light weight, simple manipulation, easy maintenance.
2.Gear type pneumatic motor and stable running, high reliability.
3.Jumbolter with the landing leg, increase the torque and improve the applicability, greatly reduce the labor intensity.
Main Parameter
Parameter |
Unit |
MQT110 |
MQT120 |
MQT130 |
Stress range |
Mpa |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
Rated pressure |
Mpa |
0.5 |
0.5 |
0.5 |
Rated torque |
n.m |
110 |
120 |
130 |
Rated speed |
r/min |
≥230 |
≥200 |
≥180 |
Maximum output power |
KW |
≥2.4 |
≥2.6 |
≥3.0 |
Maximun load torque |
n.m |
≥180 |
≥220 |
≥260 |
starting torque |
n.m |
≥170 |
≥180 |
≥230 |
Load gas consumption |
m³/min |
≤3.8 |
≤4.2 |
≤4.4 |
Maximum speed of revolution |
r/min |
620 |
500 |
460 |
Weight |
Kg |
48 |
52 |
54 |

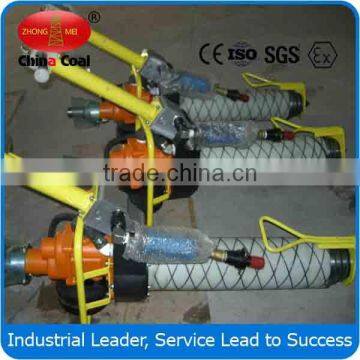

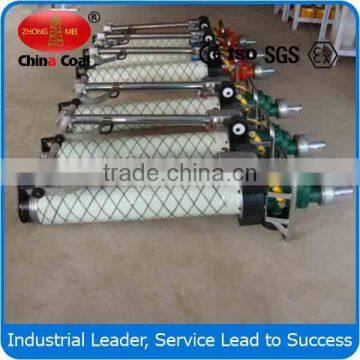

Figure Photos
