ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-1
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-2
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-3
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-4
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-5
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig thumbnail-6
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-1
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-2
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-3
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-4
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-5
ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Electric
Place of Origin Shandong, China
Brand Name China Coal
Model Number ZQS-35/1.6S
Usage Coal
Voltage Pneumatic
Power(W) 2.48kw
Dimension(L*W*H) differ
Weight 20KG
Certification ISO9001, CE, ISO, SGS, TUV, InTouch
Warranty 1 Year
After-sales Service Provided No overseas service provided

ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig Introduction

ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig

ZQS-35/1.6S pneumatic hand-held drilling rig is suitable for rock bolting in roadway and half roadway where the hardness of rock is less than or equal to f6. It can not only drill rock bolt hole, but also stir and install resin cartridge type rock bolt.
Main Characteristics
1. Small size, light weight, easy manipulation and simple maintenance;
2. Metal motor gear,longer service life;
3. Stable running,high reliability;
4. Safe and anti-explosion, rational construction, high adaptability;

ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig Parameter

Model

ZQS-60/2.1

ZQS-50/1.7

ZQS-35/1.6

Working pressure(Mpa)

0.4-0.63

0.4-0.63

0.4-0.63

Rated pressure(Mpa)

0.5

0.5

0.5

Rated speed(r/min)

330

320

440

Rated torque(N.m)

60

50

35

Stall torque (N.m)

70

57

55

No-load speed(r/min)

≥1000

≥1000

≥1000

Gas consumption(m3/min)

4

4

4

Water flushing pressure (Mpa)

0.6~1.2

0.6~1.2

0.6~1.2

Noise(dBA)

≤95

≤95

≤95

Total weight(Kg)

20

13.5

13.5

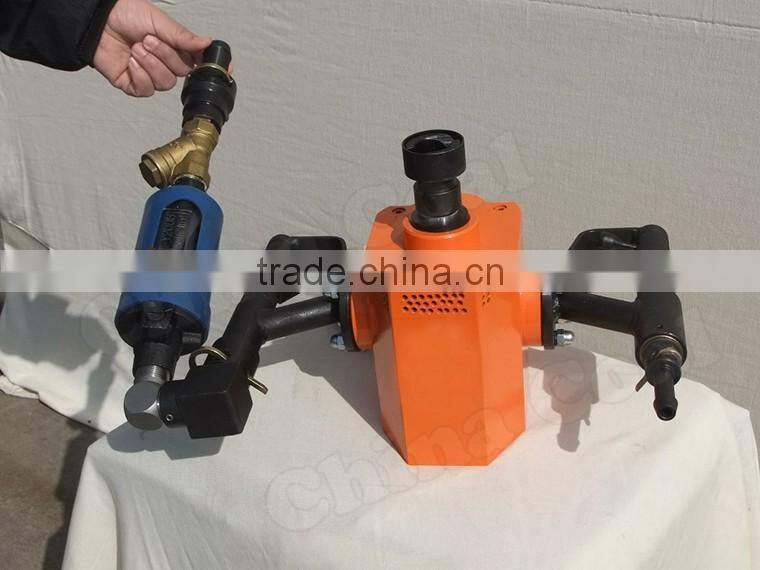

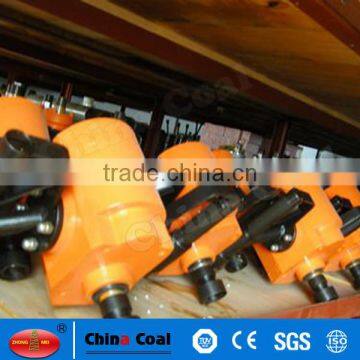

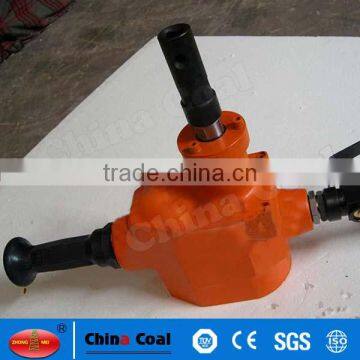

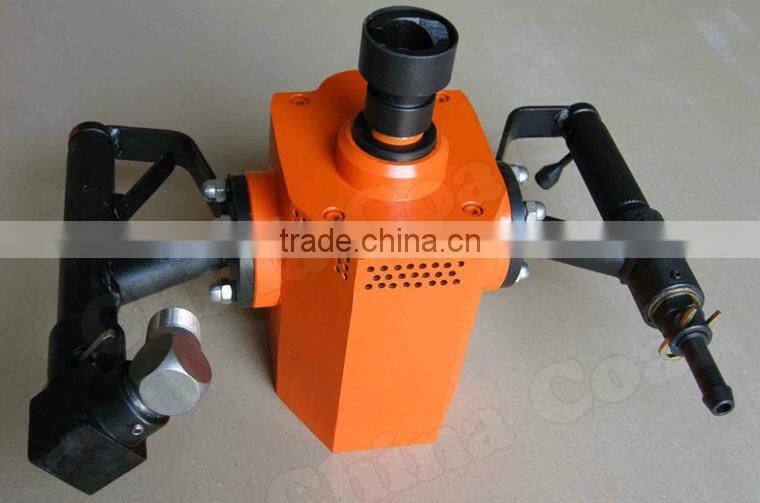

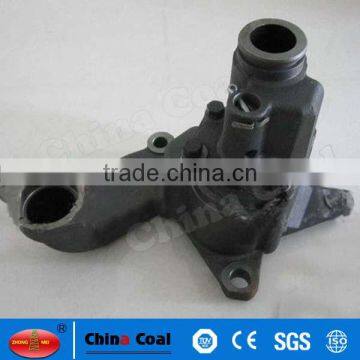

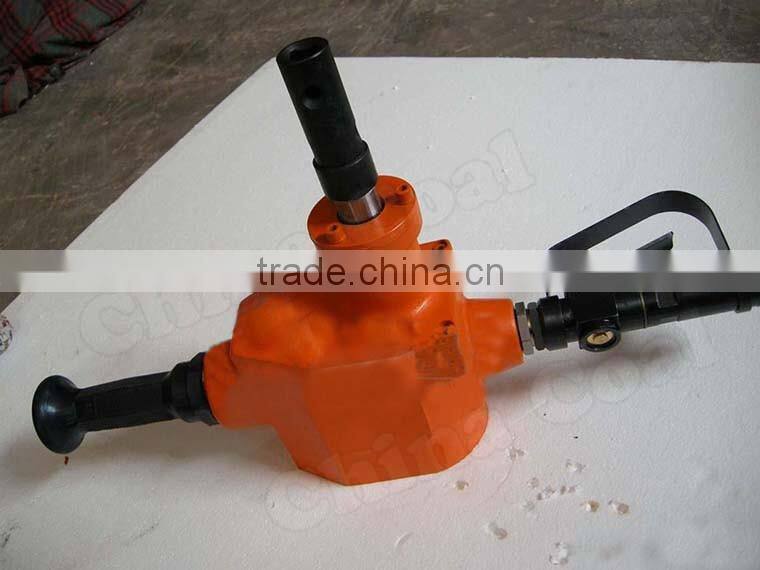

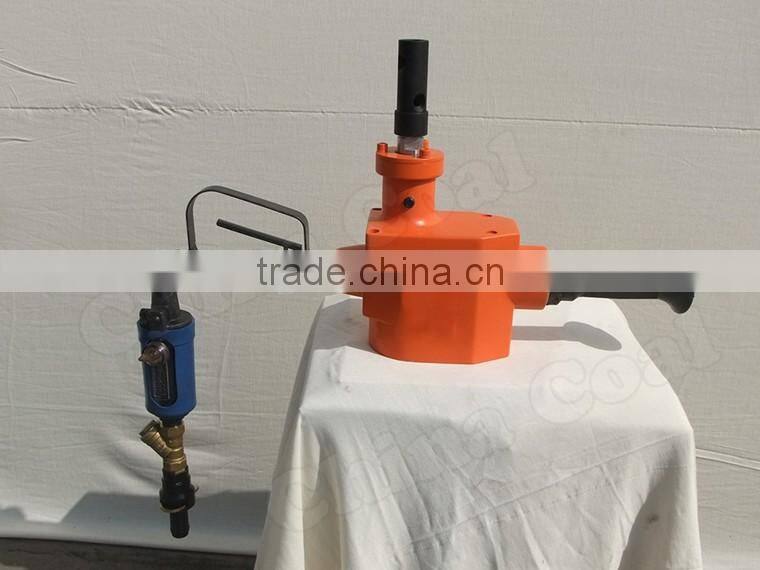

ZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig Figure Photos

ZQS China Cheap Pneumatic Hand Held Lightweight Drilling RigZQS China Cheap Pneumatic Hand Held Lightweight Drilling RigZQS China Cheap Pneumatic Hand Held Lightweight Drilling RigZQS China Cheap Pneumatic Hand Held Lightweight Drilling RigZQS China Cheap Pneumatic Hand Held Lightweight Drilling RigZQS China Cheap Pneumatic Hand Held Lightweight Drilling Rig
