Home > Products > Drilling rig > ZGYX-421 Integrated Crawler Drill Rig

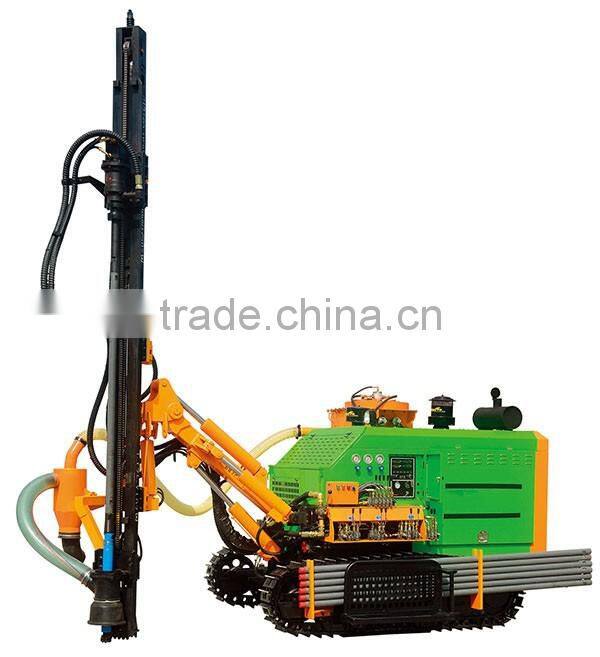

ZGYX-421 Integrated Crawler Drill Rig
- Shanghai Shenzhen Qingdao Ningbo
- T/T Credit Card
You May Like
Product Details
| Power Type | Diesel | Model Number | ZGYX-421 | |
| Dimension(L*W*H) | 5950*2450*2830mm | Weight | 7000kg |
Product Description
Introduction
ZGYX-421 Integrated Open Pit Drilling Vehicle
Product features:
1. This type of drill rig supporting power standard for Yuchai YC6A180Z equipped with 10/14.5 screw air compressor. The allocation of a diameter of 60 mm diameter three meters drill rod. It can be subdivided into a dry type dust collector and a non dust collection machine.
2. The machine to strengthen the strength of the various structural parts, can withstand the original ZGYX-420A drilling car all the functional requirements.
3. The cycloid motor drives the rotary head, reducing the original ball motor fault rate and heavy volume, at the same time can strengthen the drill torque, the larger aperture drilling.
4. To promote and enhance the rotary, with fast and slow speed switch, greatly improving the efficiency of change drill.
5. The design of new housing drilling vehicle maintenance is very convenient to use, strengthen the appearance of the drilling rig.
6. Equipped with a dry dust collector, drilling without dust, more environmentally friendly, energy saving.
7. The standard double speed motor, climbing more powerful, more reliable quality, high efficiency of walking.

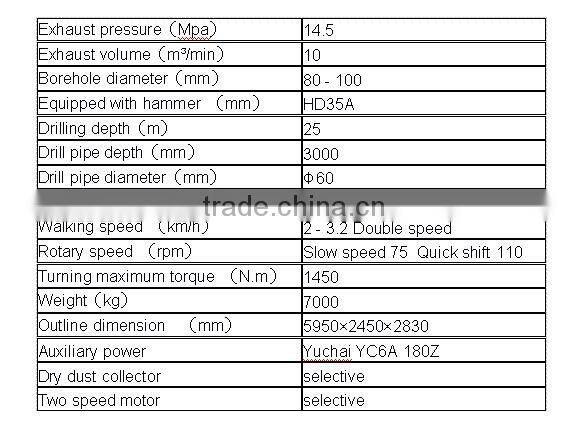

Main Parameter

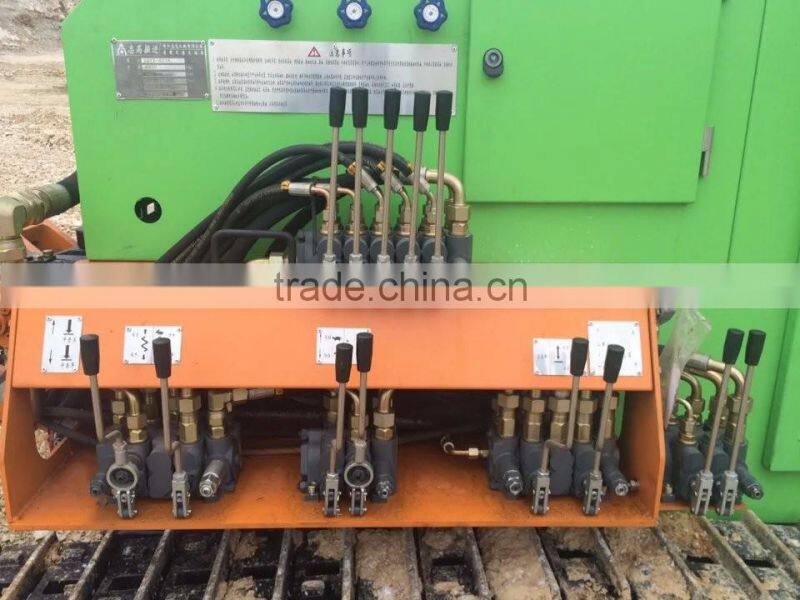

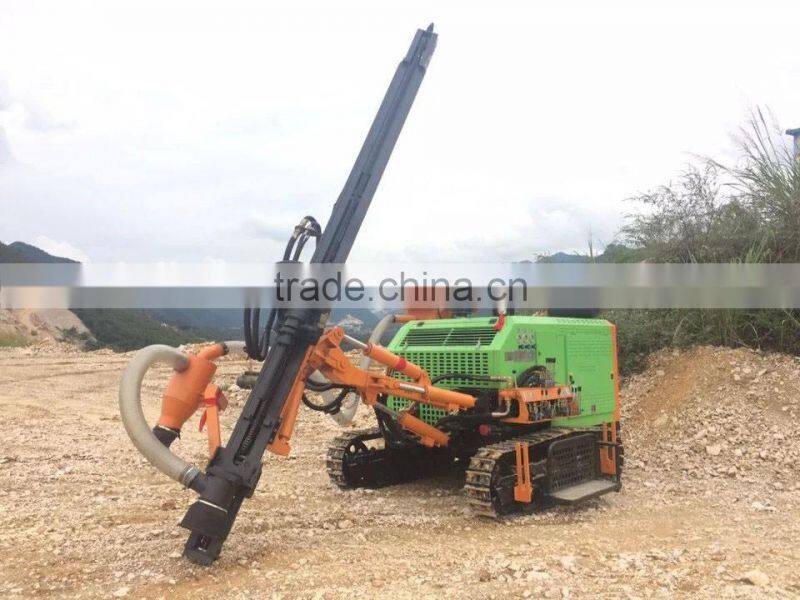

Figure Photos
