1000m Deep Water Well Drillling Rig Machine
- Qingdao Shanghai Ningbo Shenzhen
- Credit Card
You May Like
-
XY- 8water Drilling Machine Prices
-
Borehole Exploration Water Well Drilling Rig Machine
-
Water Well Drilling Rig Machine With Electric Motor for Drilling
-
Truck Mounted Water Well Drilling Rig For Sale
-
200m Deep Water Well Hydraulic Rotary Drilling Rigs For Sale
-
Water Well Drilling Machine With Mud Pump and Drilling Bits
Product Details
| Condition | New | Type | Other, Water Well Rig Drilling Machine | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | XY-8 | |
| Usage | Water Well | Voltage | Customized | |
| Power(W) | 90kW | Dimension(L*W*H) | 4049*1754*2593mm | |
| Weight | 7.8t | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
XY-8 Water Well Drilling Equipment for 1000m Introduction
XY-8 Water Well Drilling Equipment for 1000m
XY-8 Water Well Drilling Equipment for 1000m is newly designed deep hole drilling equipment with large inner diameter of spindle. It can make small hole drilling with diamond bits, as well as large hole drilling with carbide with bits. It is mainly used for exploration of solid metal and nonmetal deposits. It can also used for exploration of hydrology, oil and gas, engineering drilling. This machine can make vertical and inclined drilling.
XY-8 Water Well Drilling Equipment for 1000m
Powerful output design, large spindle torque.
Large inner diameter of spindle, Double feeding cylinders and long stoke.
Great clamping force of chuck.
Hoist in horizontal arrangement, high lifting capacity and convenient operations.
XY-8 Water Well Drilling Equipment for 1000m Main Parameter
XY-8 | |
Drilling Depth(m) | 1000-3000 |
Drilling Rod(mm) | 50.5, 60, 71, 73,89,114 |
Drilling Angle | 90-80 |
Spindle Speed(r/min) | Forwards 79,137,213,223,366,384,604,1024 Reverse 51,144 |
Pulling Capacity(kN) | 300 |
Feeding Capacity(kN) | 142 |
Feeding Stroke(mm) | 1000 |
Max Single-line Hoisting Force(kN) | 130 |
Lifting Speed(m/s) | 0.57-7.58 |
Steel Wire(mm) | 21.5 |
Rope Capacity(m) | 160 |
Skidding Cylinder Stroke(mm) | 690 |
Motor Engine | 90kW Y2280M-4 |
Diesel Engine | 132kW 6BTA5.9-C180 |
Weight(t) | 7.8 |
Dimensions(L*W*H)(mm) | 4049*1754*2593 |

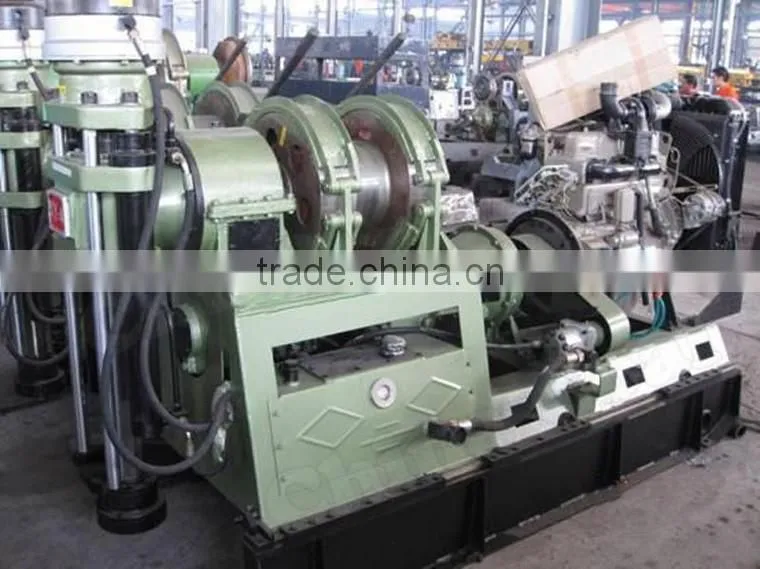

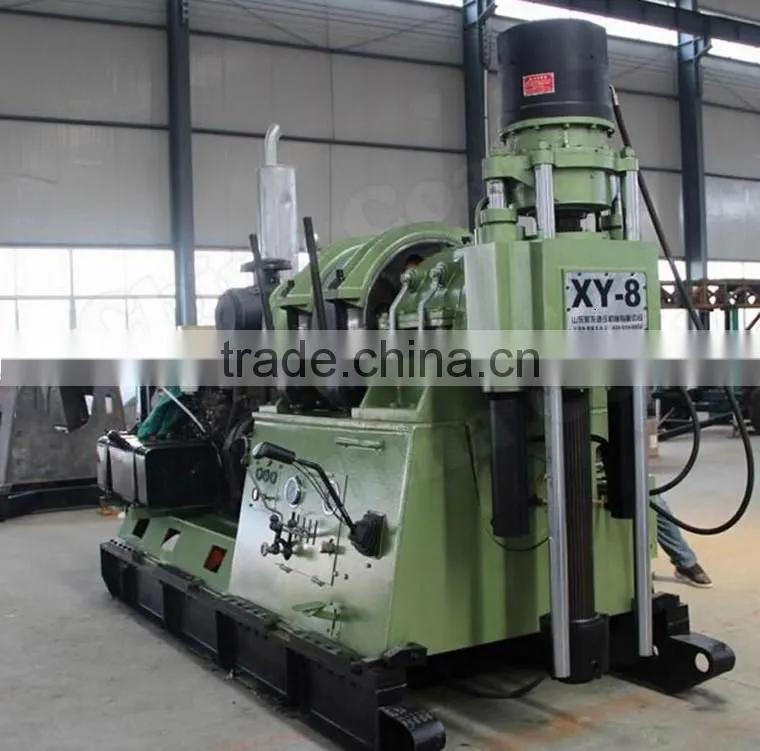

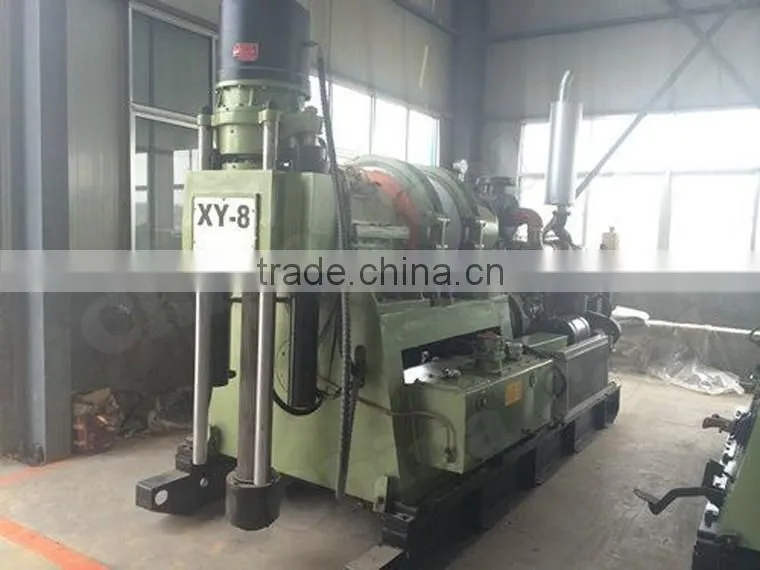

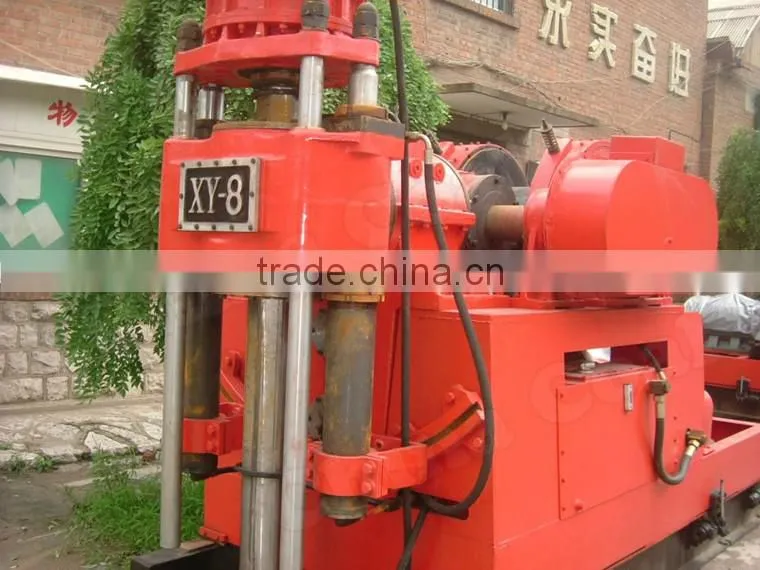

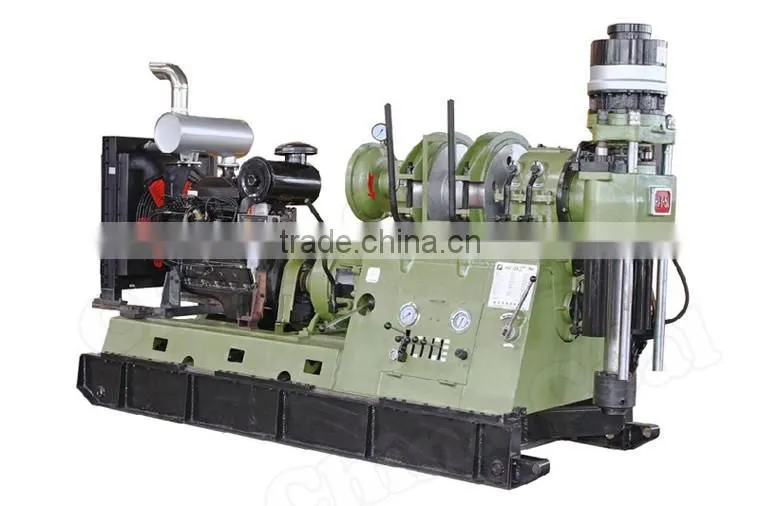

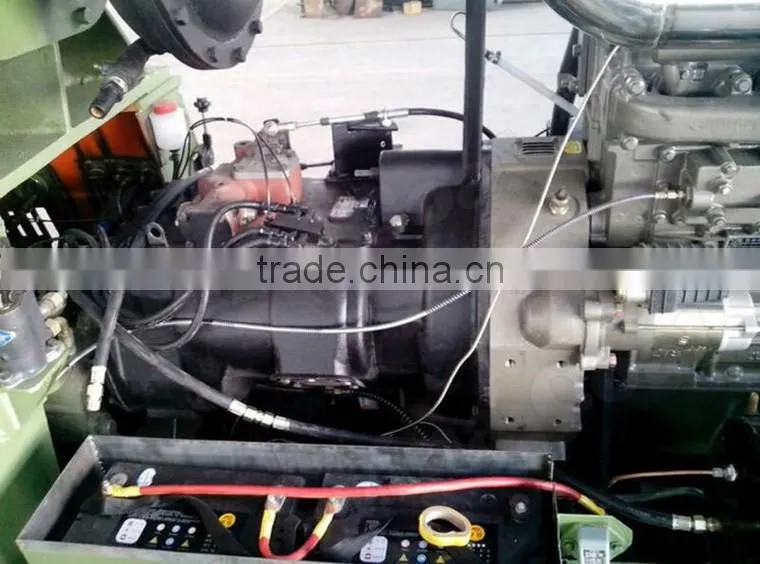

XY-8 Water Well Drilling Equipment for 1000m Photos
