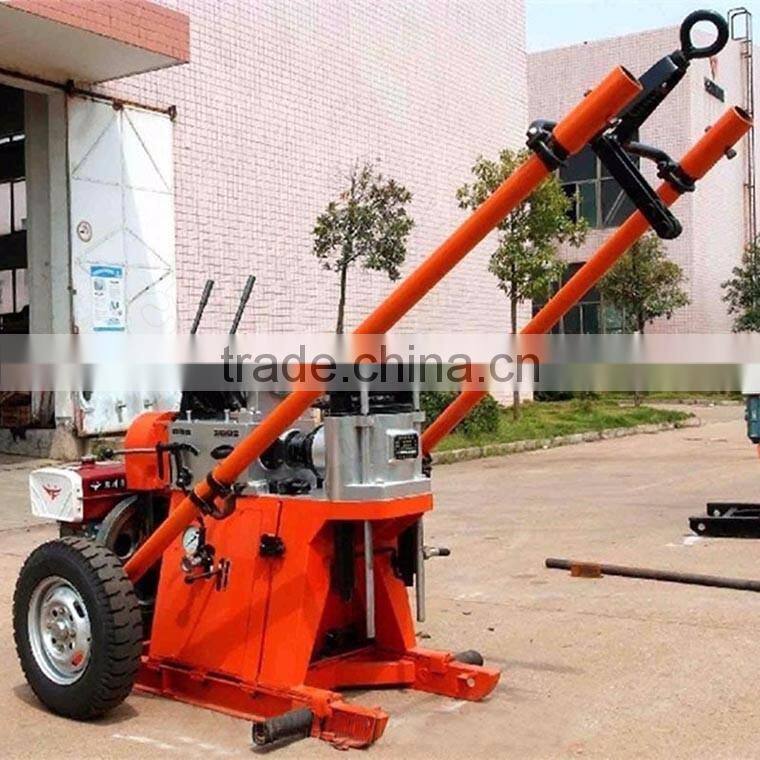

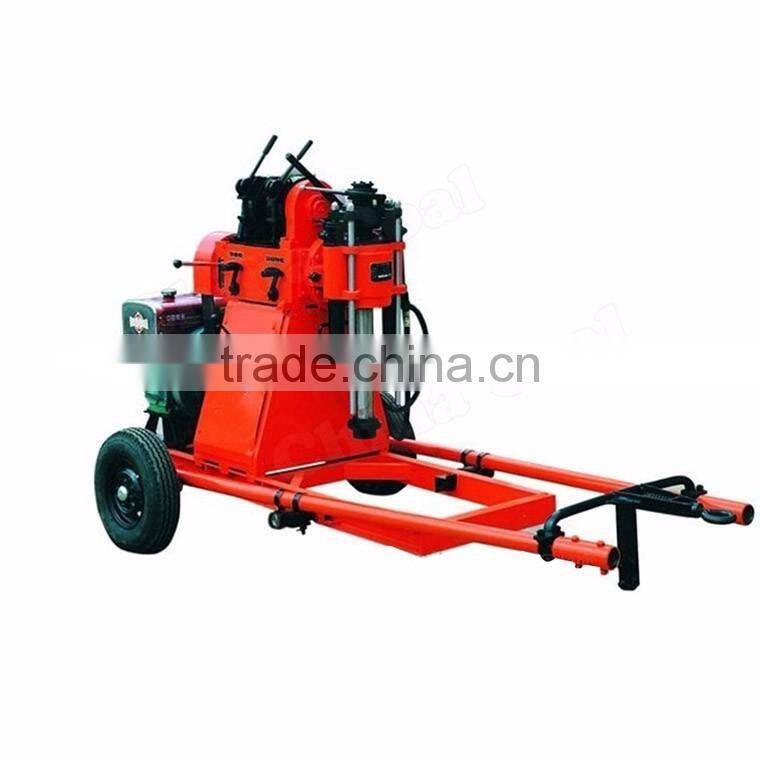

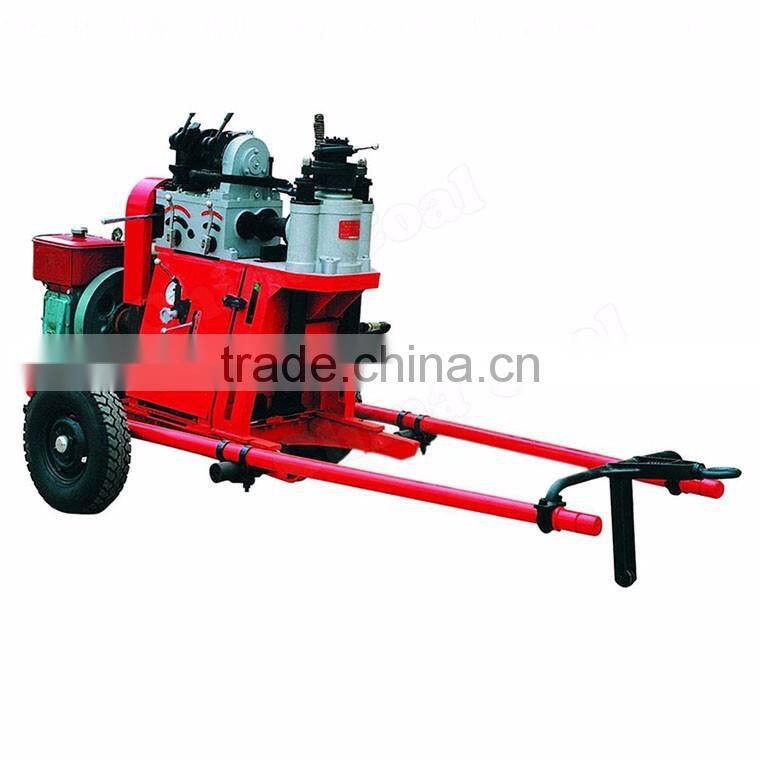

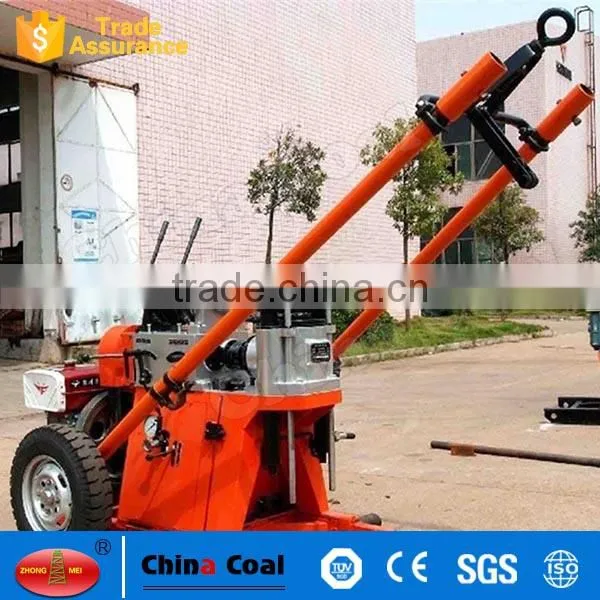

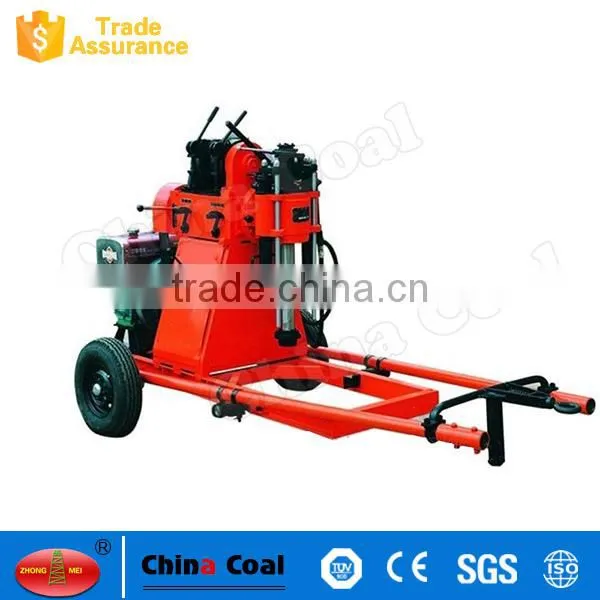

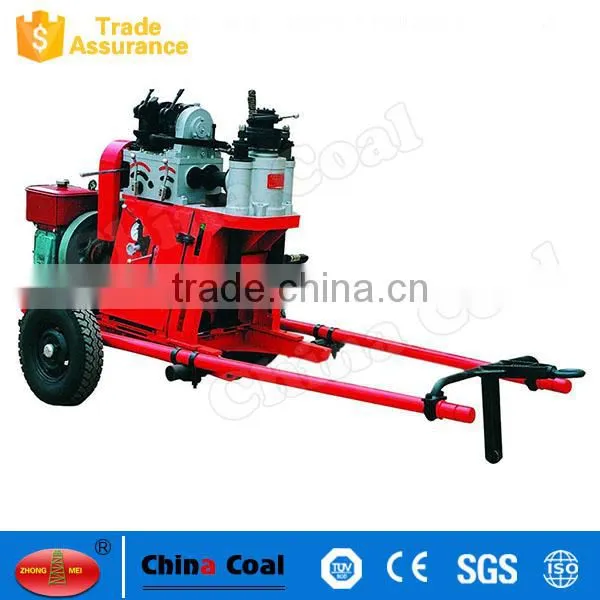

Introduction of Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price
GY-50-1 Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price is adopted with hydraulic pressure feeding structure; Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price can proceed rotary or percussion drilling, and can be moved by towing the trailer, and can be towing removal.
Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price is widely used for geotechnical engineering drilling in field like construction of industrial and vicil buildings, roads, railways, bridges, dams as well as for geological prospecting work and blasting hole drilling
Sprcifications of Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price
Item | Parameter | |
Basic parameters | Drilling hole Dia. | 46, 76, 300 mm |
Drilling depth | 150, 100, 20 m | |
Drill pipe Dia. | 42 mm | |
Overall dimensions(L×W×H) | 1580×1080×1200 mm | |
Weight (not including power system) | 450 kg | |
Rotator | Rotation speed | 48, 100, 200, 350, 650 r/min |
Toque (max) | 200 kgm | |
Feeding force | 2000 kg | |
Lifting force | 3000 kg | |
Hoist | Hoisting capability (single rope) | 1500 kg |
Linear speed of drum (2 layers) | 0.32, 0.66, 1.24, 2.58 m/s | |
Drum Dia. | 140 mm | |
Wire rope Dia. | 11 mm | |
Length of wire rope | 24 m | |
Drill tower | Mode | Staircase tower (or four-leg steel pipe tower) |
Tower height | 6 m | |
Power machine | Model | Changchai ZS1100 diesel engine |
Rated power | 11 KW(15HP) | |
Net weight | 146 kg | |
Water pump (optional)
| Model | BW-120QF BW-160QF |
Pressure | 1.4 1.1 Mpa | |
Flow rate | 120 160 L/min. | |
Weight (including power machine) | 120 122 kg | |
Sprcifications of Mini Digging Machine / Small Water Well Drilling Rig Machine With Factory Price
