Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine

Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine

Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-1
Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-2
Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-3
Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-4
Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-5
Chinacoal YN27C Hand Held Internal-combustion Rock Drilling Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
China Coal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name China Coal
Model Number YN27C
Usage Other, Drilling

Product Introduction

Product Name:  YN27C portable Internal-combustion rock drilling machine



Company Name: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.



Specifications:



-YN27C petrol powered Internal Combustion Rock Drill
-Rock drill for drill hole, cleavage, bruising
-Max depth 6m
-Rock drill



     YN27C Internal Combustion Rock Drill  is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill. Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.

The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

Main Parameter

Technical Parameters:



TECHNICAL SPECIFICATIONS

Weight of main machine

27 kg

Type of carburetor

Hand needle valve, no floating type

Ignition system

Controllable silicon contactless system

Displacement of engine piston

185 cm3

Load Rotating speed of engine

≥2450 r/min

Idling rotating speed of drill rod

≥200 r/min

End of drill rod dimensions

Hexagonal 22x108 mm

Max drilling depth

≥6 m

Tank capacity

≥1.14 L

Drilling speed

≥250mm/min

Mixture ratio of gasoline and lubricating oil(in volumes)

9:1

Clearance of spark plug

0.5-0.7 mm

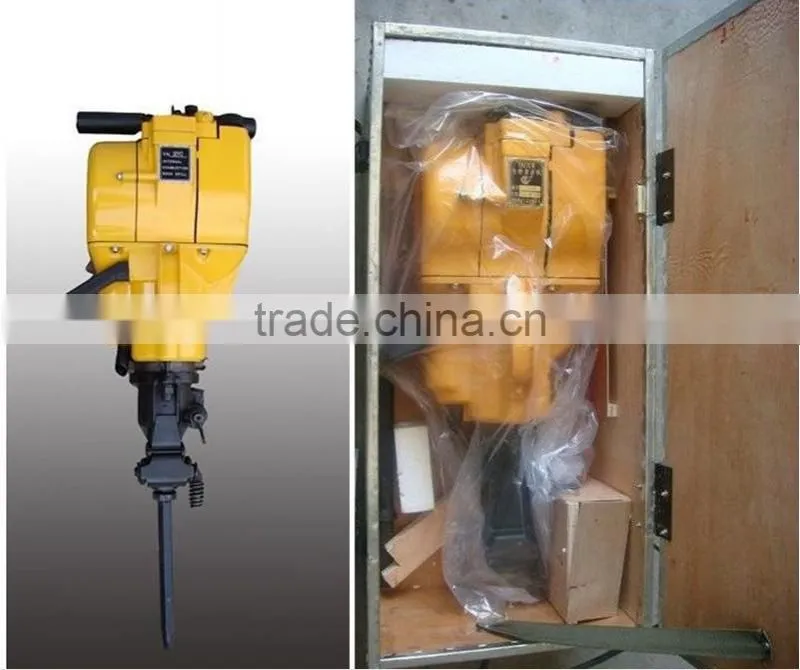

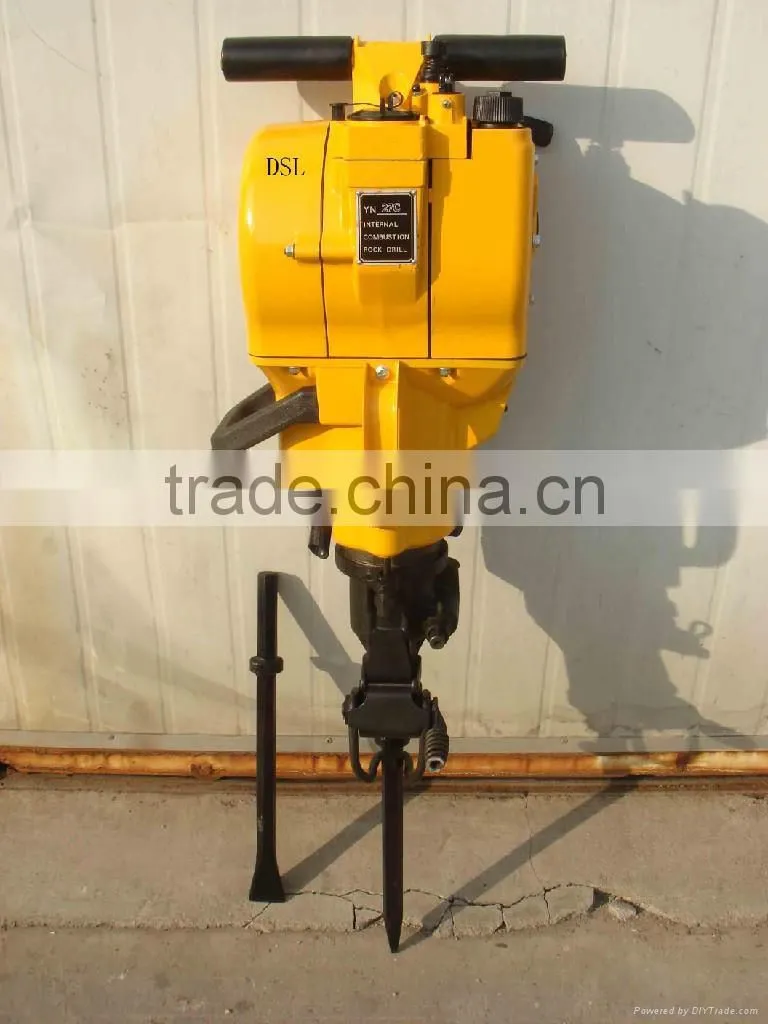

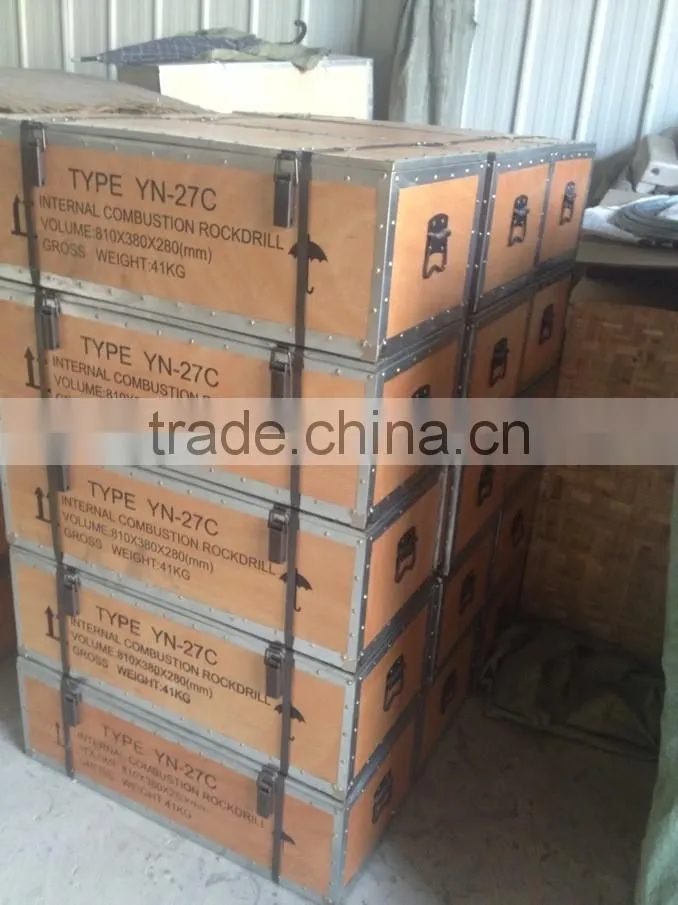

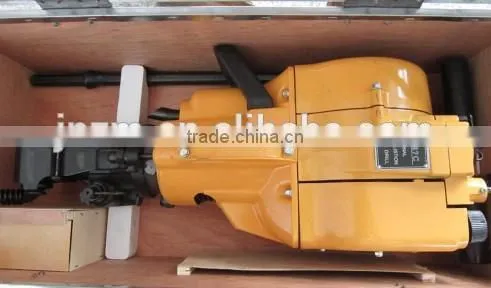

Figure Photos

chinacoal YN27C hand held Internal-combustion rock drilling machinechinacoal YN27C hand held Internal-combustion rock drilling machinechinacoal YN27C hand held Internal-combustion rock drilling machinechinacoal YN27C hand held Internal-combustion rock drilling machinechinacoal YN27C hand held Internal-combustion rock drilling machine

About Us

Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.

Customers Visit

chinacoal YN27C hand held Internal-combustion rock drilling machine

B/L of The History Trading

chinacoal YN27C hand held Internal-combustion rock drilling machine

Qualification & Certification

chinacoal YN27C hand held Internal-combustion rock drilling machine
