Introduction of Portable Breaker YN27C Internal Combustion Rock Drill
Portable Breaker YN27C Internal Combustion Rock Drillis a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill. Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.
Parameter of Portable Breaker YN27C Internal Combustion Rock Drill
TECHNICAL SPECIFICATIONS | |
Weight of main machine |
27 kg |
Type of carburetor |
Hand needle valve, no floating type |
Ignition system |
Controllable silicon contactless system |
Displacement of engine piston |
185 cm3 |
Load Rotating speed of engine |
≥2450 r/min |
Idling rotating speed of drill rod |
≥200 r/min |
End of drill rod dimensions |
Hexagonal 22x108 mm |
Max drilling depth |
≥6 m |
Tank capacity |
≥1.14 L |
Drilling speed |
≥250mm/min |
Mixture ratio of gasoline and lubricating oil(in volumes) |
9:1 |
Clearance of spark plug |
0.5-0.7 mm |

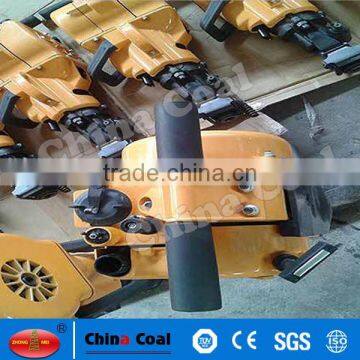

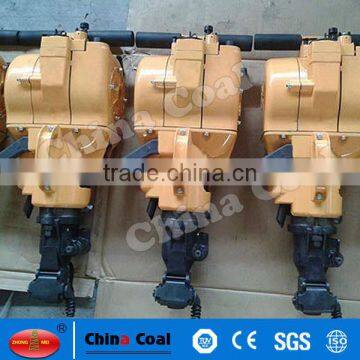

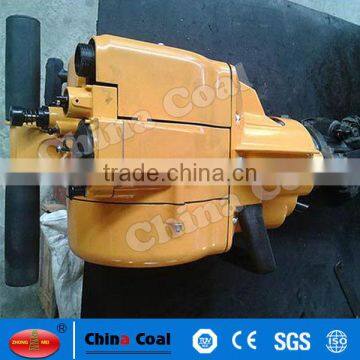

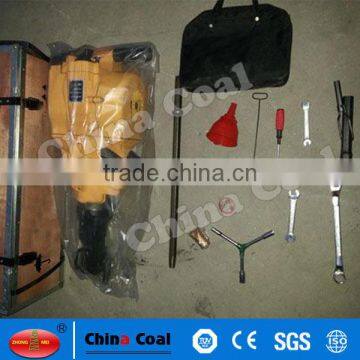

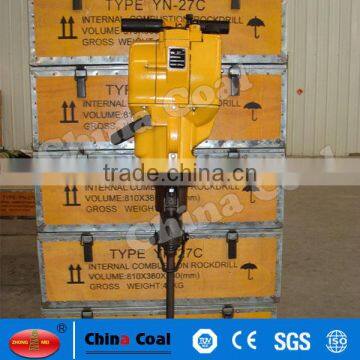

Figure Photos of Portable Breaker YN27C Internal Combustion Rock Drill
