Diamond Core Drill Bit For core drilling
- 2000 Set / Sets per Month
- Qingdao Shanghai Ningbo Shenzhen
- T/T L/C D/P D/A Credit Card
- ZY SUPER HARD PCD Twist Drill Bits
- ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
- BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- hard formation core drill bits, BQ NQ HQ PQ NTW HTW, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- impregnated diamond core drill bit, BQ NQ HQ PQ, wireline core barrels, coring bits, hard formation, deep hole rock core recovery
- TIDEWAY Finger Joint cutter Finished Sandblast T.c.t Single Piece Finger Joint Carbide Shaper Cutters
Product Details
Place of Origin: | Shandong, China | Brand Name: | China Coal | Model Number: | 77.8mm |
Type: | Core Drill Bit | Material: | Diamond | Use: | Other, rock drill |
Product Description
Diamond Core Drill Bit For core drilling Introduction
1.1 Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life
of the rods and casings. We conduct either tru-wall or both ends heat treatment to the
tube body. After heat treatment, strength, hardness, straightness and concentricity of the
treated tubes will be tested in our lab.
1.2 Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error
made by anthropic factors.
1.3 Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Diamond Core Drill Bit For core drilling Main Parameter
Std | OD(mm) | ID(mm) | Thickness (mm) | Thread pitch (mm) | Pin thread length | Weight (kg/m) | Depth capacity (m) |
AQ | 44.50 | 34.90 | 4.80 | 6.35 | 41.50 | 4.8 | 500 |
BQ | 55.60 | 46.10 | 4.75 | 8.47 | 44.45 | 6.0 | 1000 |
NQ | 69.90 | 60.30 | 4.80 | 8.47 | 44.45 | 7.8 | 1000 |
HQ | 88.90 | 77.8 | 5.55 | 8.47 | 44.45 | 11.50 | 1000 |
PQ | 114.30 | 102.1 | 6.10 | 10.16 | 63.50 | 16.30 | 1000 |
BTW | 56.7 | 48.7 | 4 | 5.5 | 39.7 | 5.2 | 600 |
NTW | 73.2 | 64.1 | 4.55 | 6.35 | 44.45 | 8 | 600 |
HTW | 91 | 81 | 5 | 8.47 | 44.45 | 10.7 | 300 |

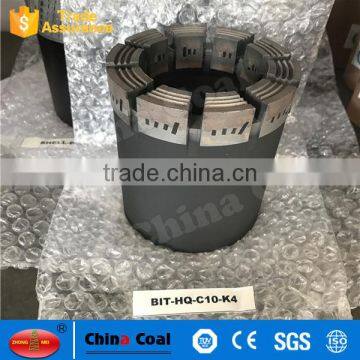

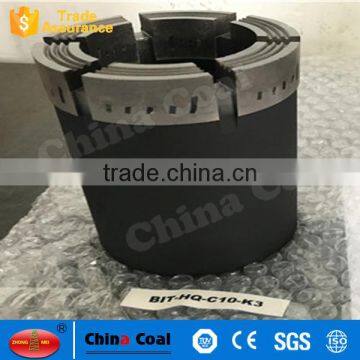

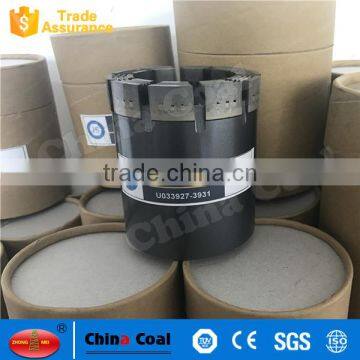

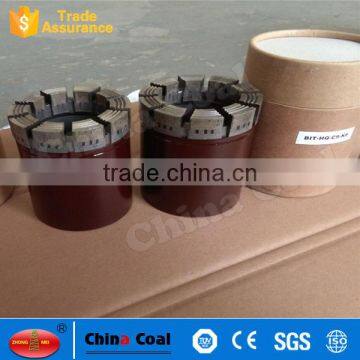

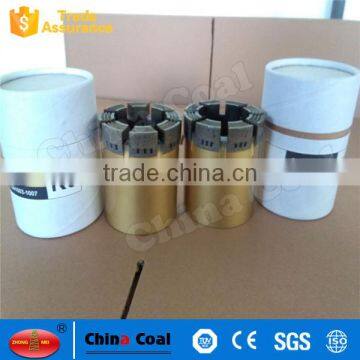

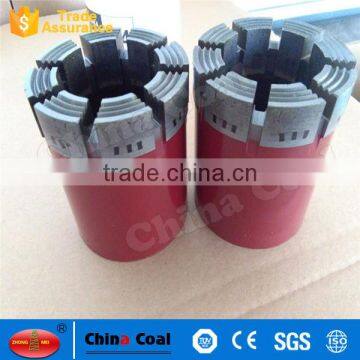

Diamond Core Drill Bit For core drilling Figure Photos
