Air Leg Rock Drilling Machine YT23D

Air Leg Rock Drilling Machine YT23D photo-1
Air Leg Rock Drilling Machine YT23D photo-2
Air Leg Rock Drilling Machine YT23D photo-3

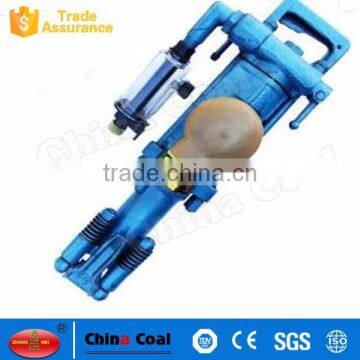

Air Leg Rock Drilling Machine YT23D photo-4
Air Leg Rock Drilling Machine YT23D photo-5

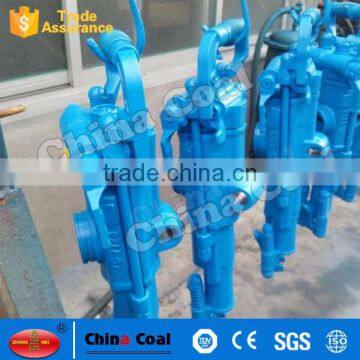

Air Leg Rock Drilling Machine YT23D photo-6
US$ 350 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Other, Air leg
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Other, Air leg
Place of Origin Shandong, China
Brand Name China Coal
Model Number YT23D
Usage Coal
Voltage no need
Power(W) 11kw
Dimension(L*W*H) 2.75*0.95*1.6m
Weight 24 kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

Air leg rock drilling machine YT23D

Introduction of YT23D Air leg Rock Drill for Rock Drill

1. YT23D Air leg Rock Drill for Rock Drill has good performance under low pressure; it is suitable for act impetus with long air pipe and small air compressor.
2. And YT23D Air leg Rock Drill for Rock Drill  is use for drilling in mines, quarries, railway construction, water conservancy and national defense project facility.
3. When YT23D Air leg Rock Drill for Rock Drill is matched with Model FY200A oil reservoir and Model FT160A or FT160B air-leg, it can perform wet drilling under various of rocks at a clinic and incline orientation, it can also use in the trolley without Air-leg.
4. Hand-hold YT23D Air leg Rock Drill for Rock Drill is a tool for the secondary blasting in quarry and especially for rocking 20mm hose in marble and granite,
5.it has characteristic of low weight,reasonable structure,handy use and little air consumption.

Sprcifications of YT23D Air leg Rock Drill for Rock Drill

Model

YT23D

Weight

24 kg

length

668mm

Air pressure

0.35-0.63MPa

Cylinder dia

70mm

Piston stroke

70mm

Impact frequencey(at0.4MPa)

≥28HZ

Impact energy(at0.4MPa)

≥45J

Air consumption     (at0.4MPa)

 ≤38 L/S

Noise

≤112dB(A)

Water pressure

0.2-0.3MPa

Air pipe (inner dia)

19 mm

Water pipe (inner dia)

13 mm

Bore dia

34-42mm

Bore depth

5m

Shank dimensions(hex*length)

22*08+-1 mm

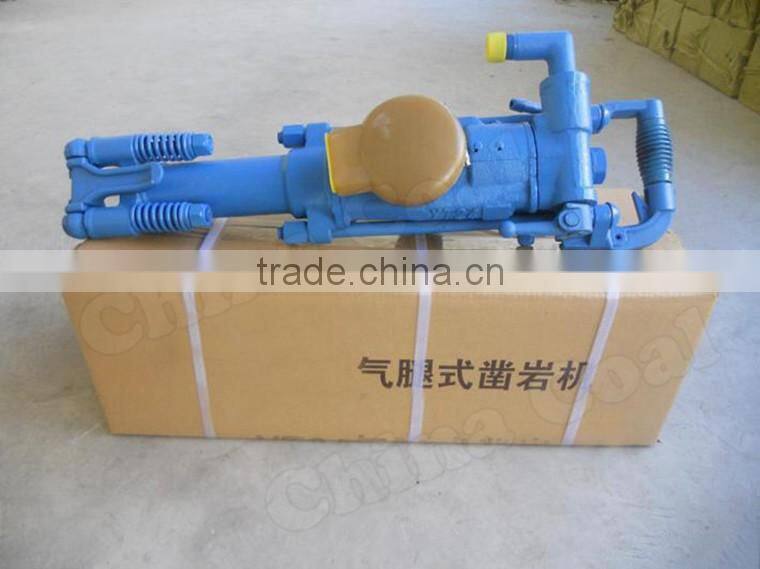

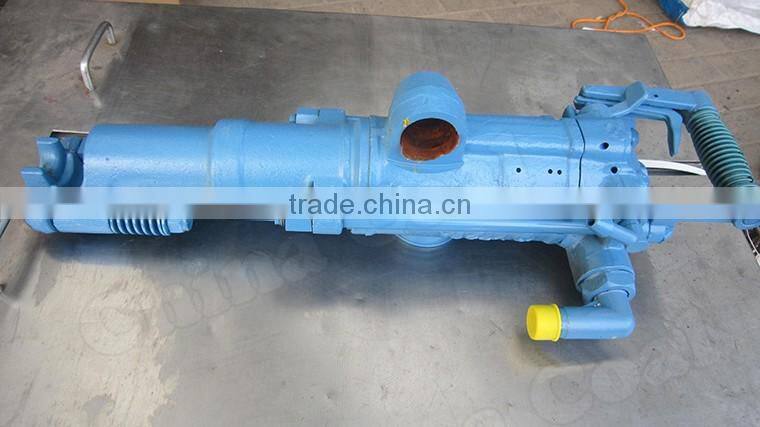

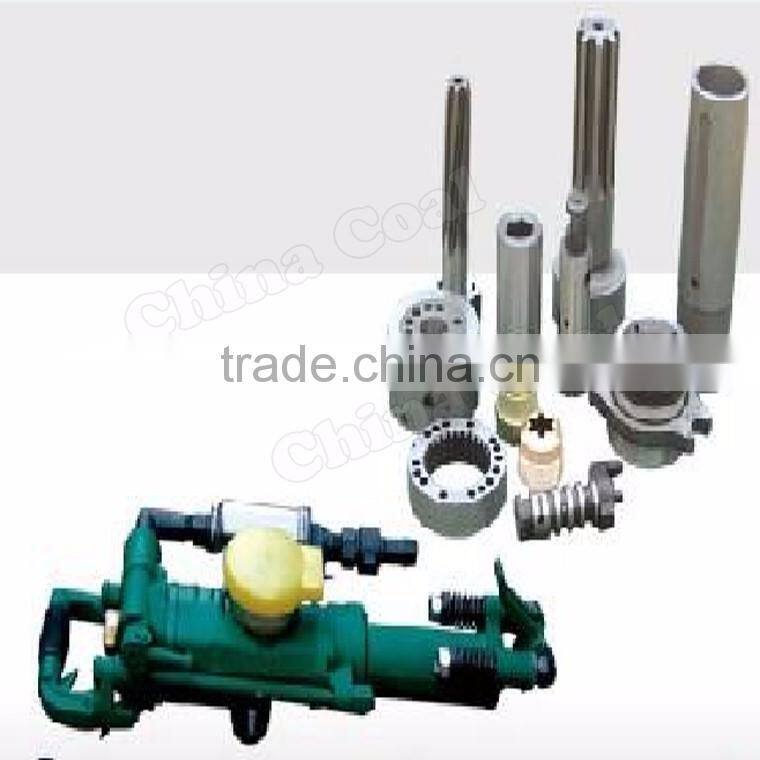

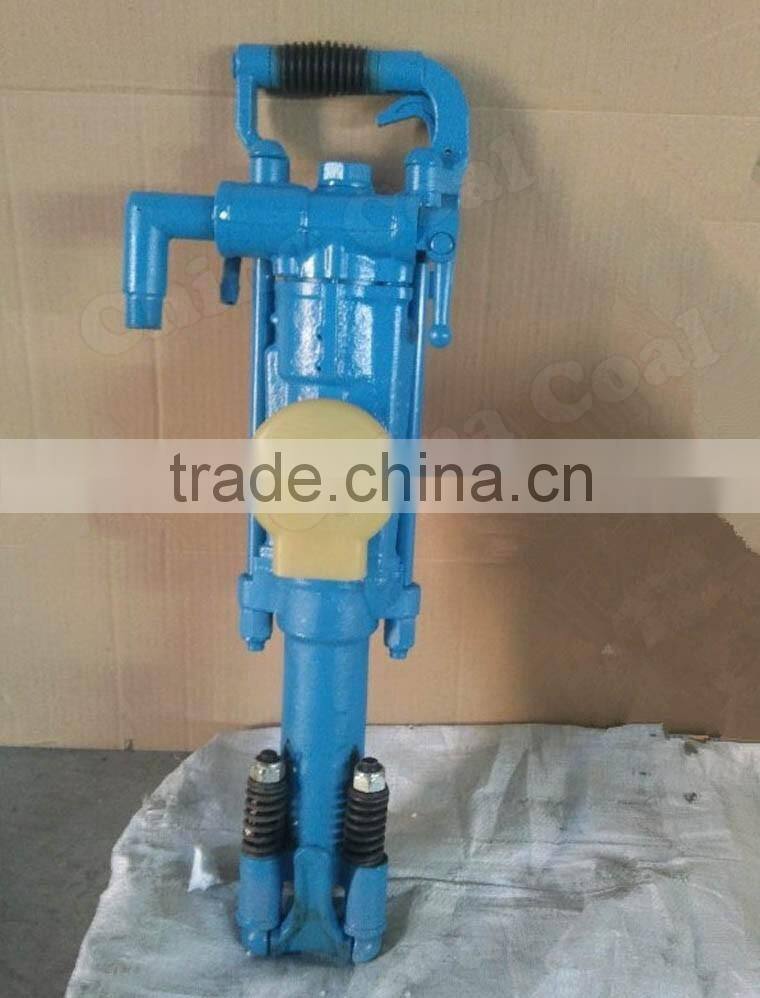

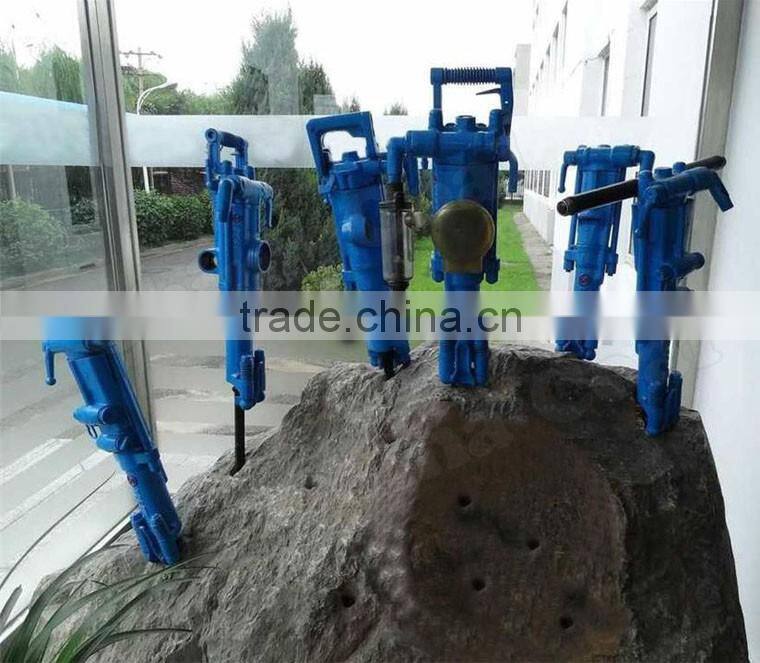

Pictures of YT23D Air leg Rock Drill for Rock Drill

Air leg rock drilling machine YT23DAir leg rock drilling machine YT23DAir leg rock drilling machine YT23DAir leg rock drilling machine YT23DAir leg rock drilling machine YT23D

Air leg rock drilling machine YT23D

Company Information

Air leg rock drilling machine YT23D

Certifications

Air leg rock drilling machine YT23D

Canton Fair

Air leg rock drilling machine YT23D

Why Us

Air leg rock drilling machine YT23D

Succesful Cases

Air leg rock drilling machine YT23D

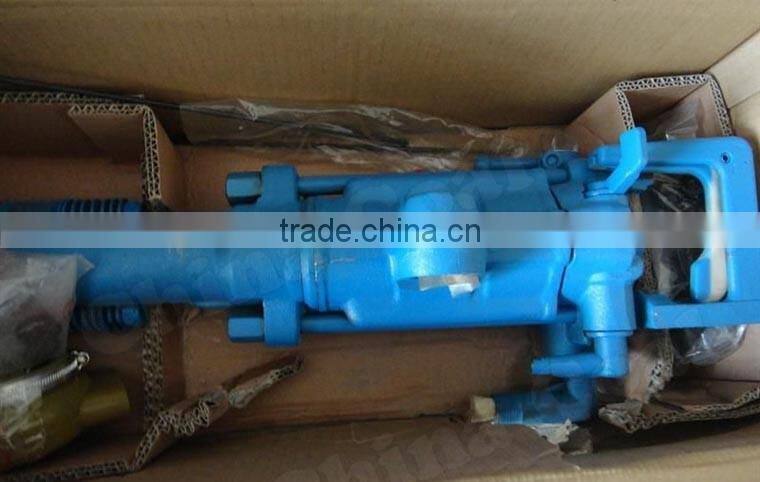

Packaging & Shipping

Air leg rock drilling machine YT23D
