Introduction
P-30B Tunnel Scraper Loader
P-30B rake bucket loading machine is used in the mining of rock or roadway in the ground.
The P-30B rake bucket loader has the characteristics of high efficiency, simple structure and wide application. Not only can drift, and can be installed in 30 degrees below the rock slope of the hill or mountain tunnel, can work well in the tunnel does not exceed 90 degrees bend. The utility model can also carry out the parallel operation between the tunneling processes and improve the tunneling efficiency, which is the main mechanical equipment for realizing the mechanization of the laneway excavation.
Structural characteristics of P-15B tunnel scraper loader
The trolley in P-30B rock rake bucket loading machine on the installation of two drum winch, which under the driving of the motor, are pulling the rope and tail rope, the rope and the tail rope manipulation of scraper reciprocating motion, the fume baffle guide, the rock grilled feeding groove, after the middle groove at the discharge port of the tail slot of the ore is discharged into the tub, so repeatedly, the car filled with rock, so as to realize the.
P-30B rake bucket loading machine is mainly composed of fixed wedge, tail wheel, rake bucket, control mechanism, trolley, winch, guide wheel, feed trough, middle trough, unloading slot, electrical parts, etc.
Main Parameter
The significance of P-15B tunnel scraper loader:
Model: P-30B bucket loader;
P - bucket loader;
30 - hopper volume of 0.30m3;
B -- flameproof type.
Main Parameter:
Productivity (m3/h): 30-50;
Harrow half volume (M3): 0.3;
Winch type: planetary gear double drum winch;
Working drum traction (kN): 13.23-19.11;
Empty drum traction (kN): 9.48-13.64;
Main rope traction speed (m/s): 0.85-1.22;
Tail rope traction speed (m/s): 1.18-1.7;
Wire rope diameter (m/s): 12.5;
Dimensions: length * width * height (mm): 6600*1500*1950

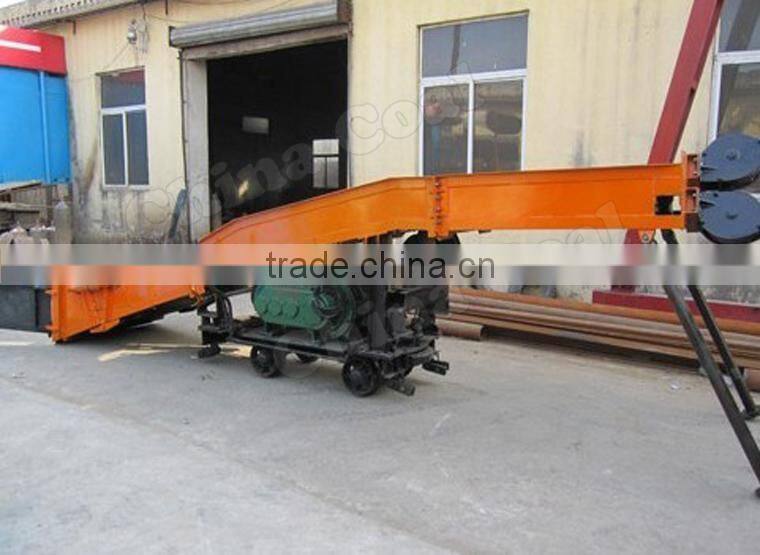

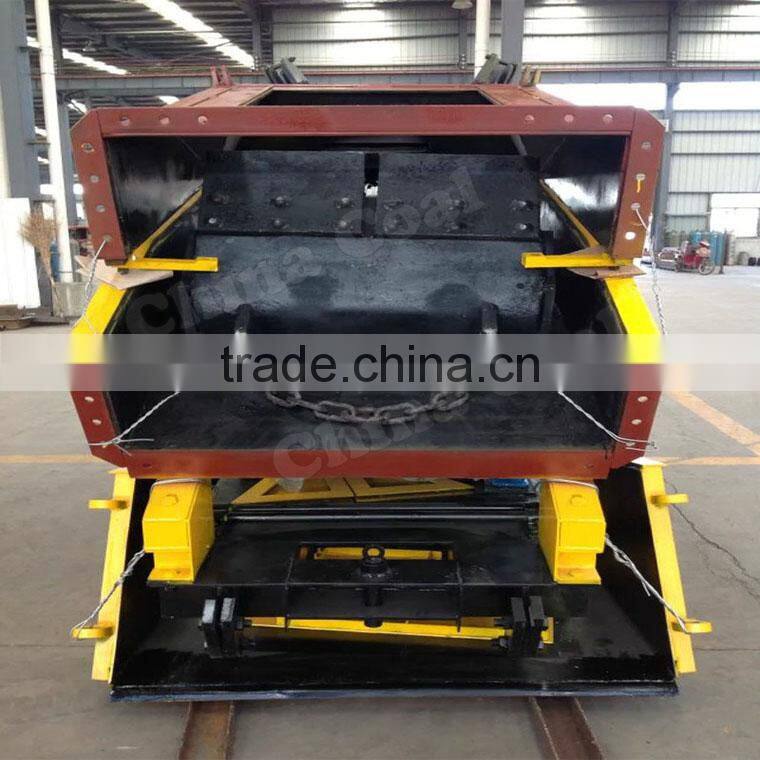

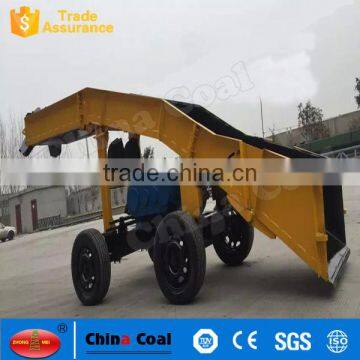

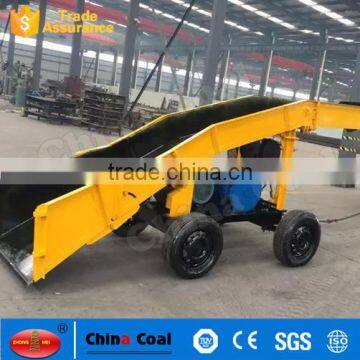

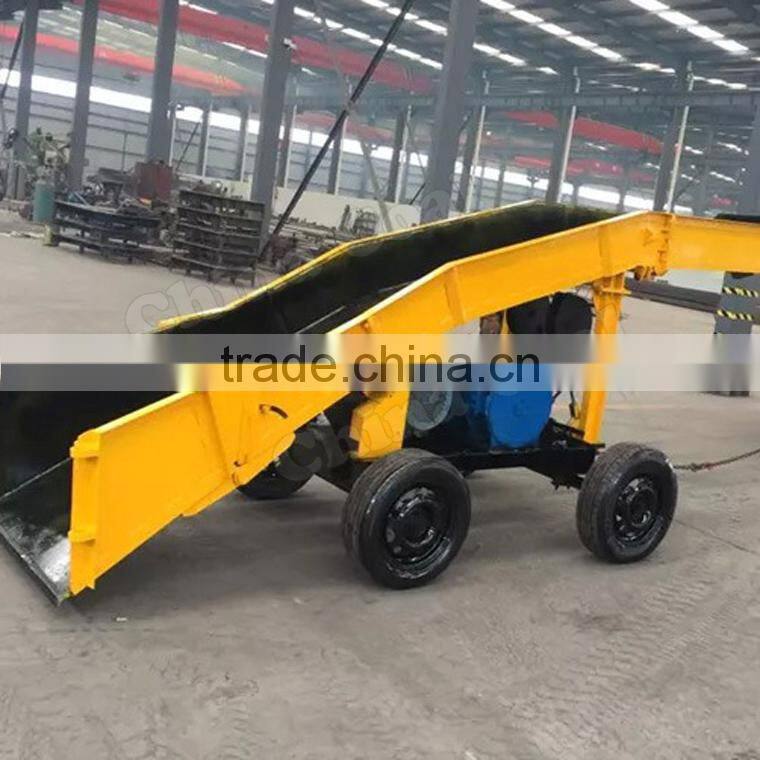

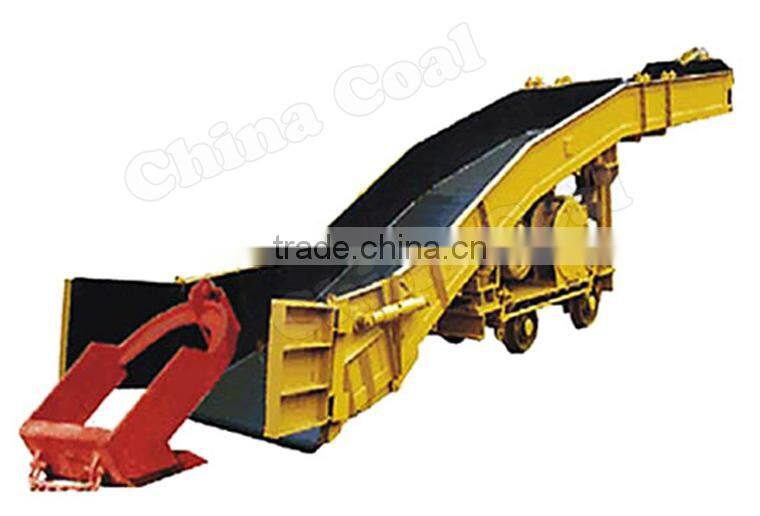

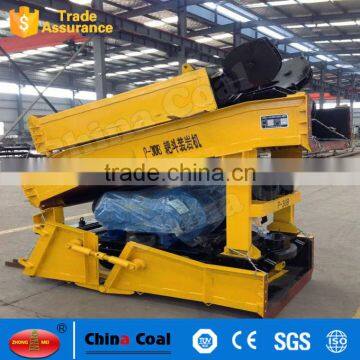

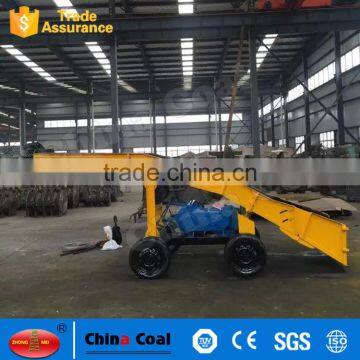

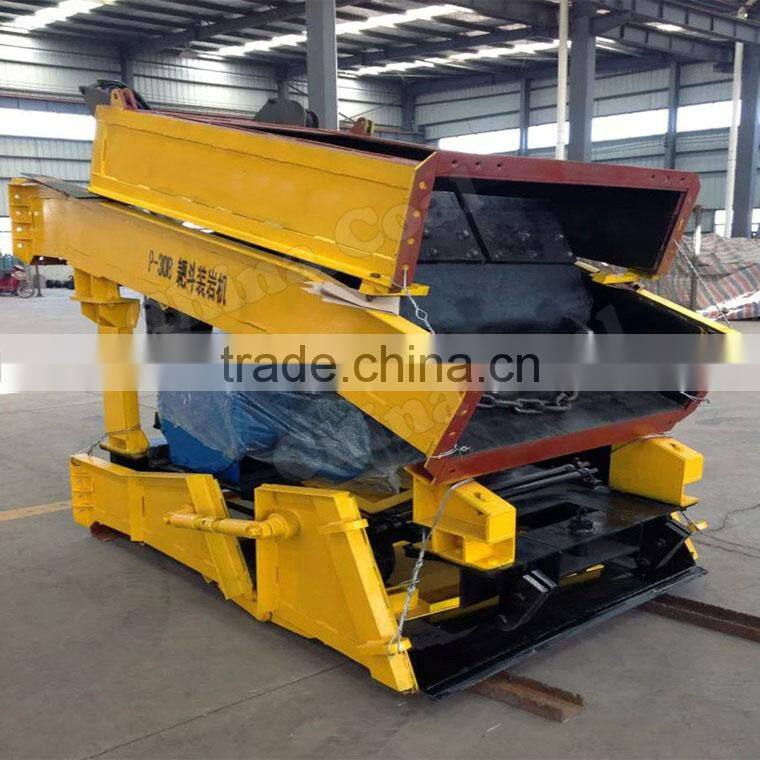

Figure Photos
