Introduction of Farming use boat walking tractor
Working principle

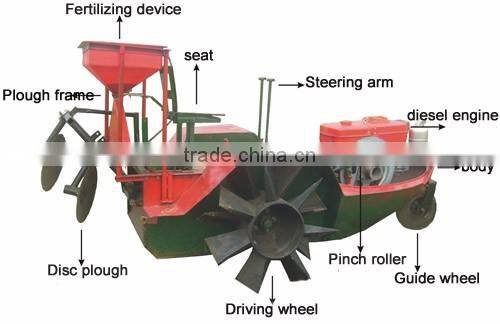

The boat of paddy field tillage and fertilizing machine, walk on the diesel engine after two belt drive and a gear transmission to the drive wheel. The operation is that the ship is driven by the ship body to drive the working tool disc plough to carry out the whole tillage or the ship bumps to make the fertilizer enter the fertilizing device under the gravity. Fertilization device is through 6 rows of fertilizer to make fertilizer evenly into the field, complete fertilization.
Main Parameter of Farming use boat walking tractor
No. |
Item |
Unit |
Parameter |
||
1 |
Overall size(Length * width * height) |
mm |
3200*1500*1400 |
||
2 |
Auxiliary power |
Model |
/ |
ZH1115G2 Diesel engine |
|
Rated power |
kW |
14.7 |
|||
Rated speed |
r/min |
2200 |
|||
3 |
Total weight(Containing power,disc plough) |
kg |
760 |
||
4 |
Tread |
mm |
1250 |
||
5 |
Wheelbase |
mm |
1670 |
||
6 |
Driving wheel vertical amplitude modulation |
mm |
300 |
||
7 |
Suspension lifting device |
/ |
Ratchet lever disc control |
||
8 |
Power clutch operating device |
/ |
Belt clutch |
||
9 |
Minimum turning radius |
m |
1.75 |
||
10 |
Minimum ground clearance |
mm |
145-245(Adjustable) |
||
11 |
Diameter of double disc plough |
mm |
410 |
||
12 |
Deep tillage |
mm |
156 |
||
13 |
Tilling width |
mm |
467 |
||
14 |
Paddy field ploughing tillage depth stability |
% |
89.8 |
||
15 |
Stability of plough width in paddy field |
% |
97.4 |
||
16 |
Paddy field plough vegetation coverage |
% |
61.6 |
||
17 |
Radius of rubber wheel |
mm |
375 |
||
18 |
Paddy wheel radius |
mm |
365 |
||
19 |
Operating speed |
m/s |
3.12 |
||
20 |
Productivity |
hm2/h |
0.52 |
||
21 |
Fertilizer tank volume |
L |
60 |
||
22 |
Fertilizer distributor |
form |
/ |
Self falling |
|
fertilization number |
line |
6 |
|||
Fertilizer regulation mode |
/ |
Pitman style |
|||
23 |
Maximum amount of fertilizer per mu |
kg |
70 |
||

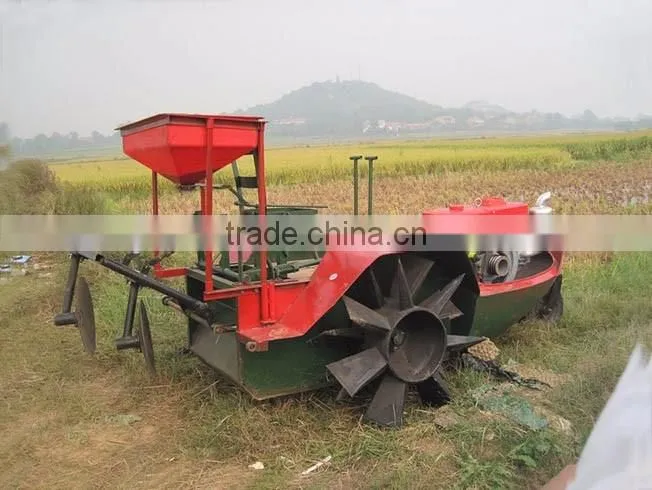

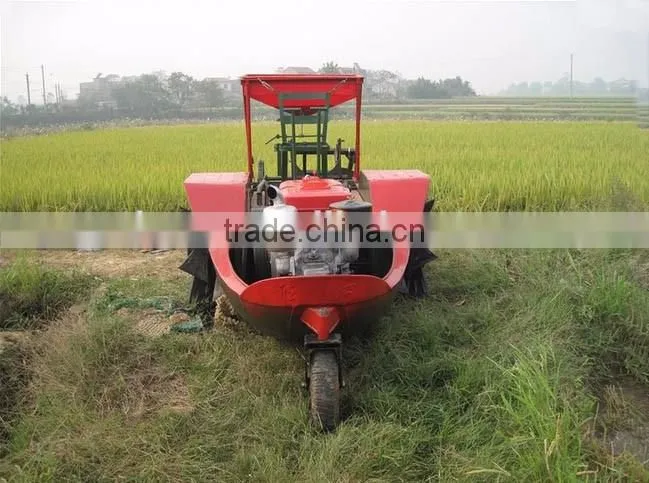

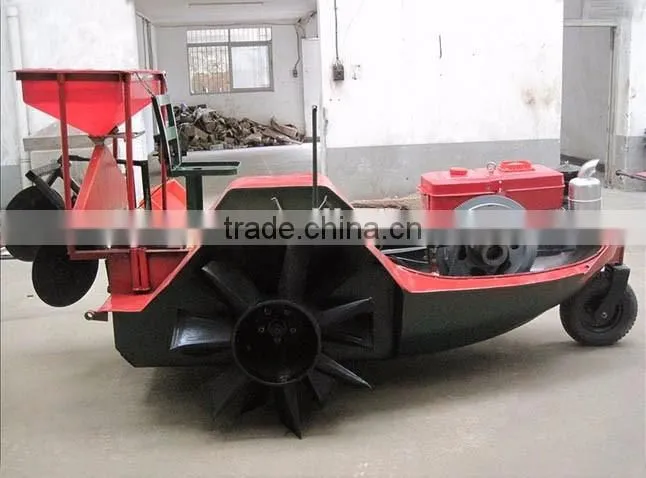

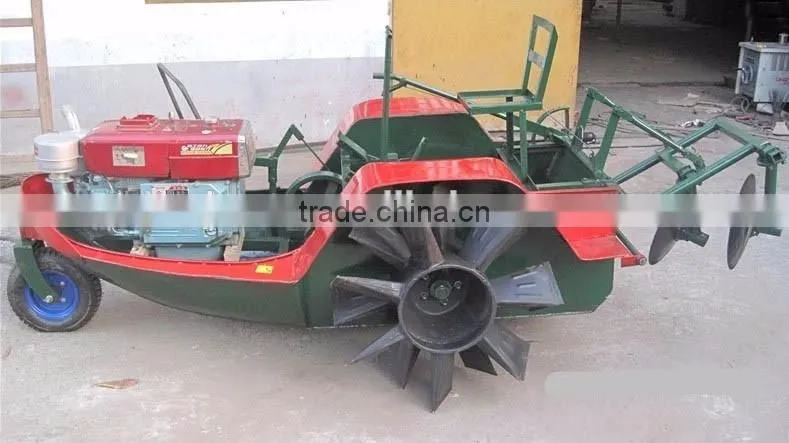

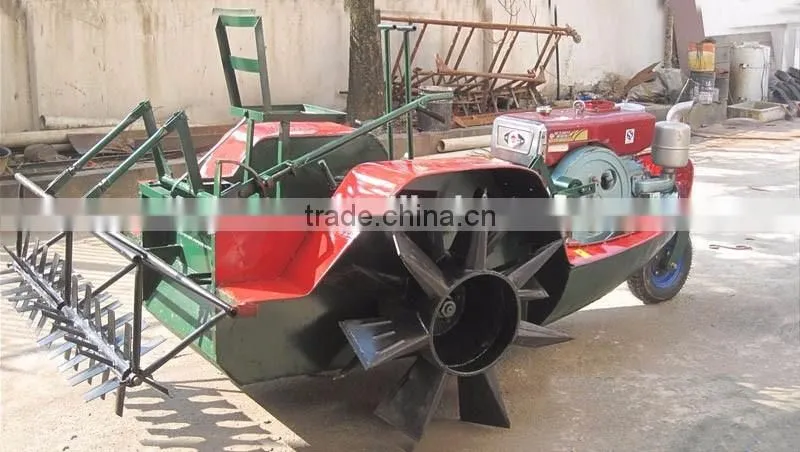

Figure Images of Farming use boat walking tractor
