Product Introduction
AYI-1200-II Pneumatic Inner-Mounted Flange Facing Machine

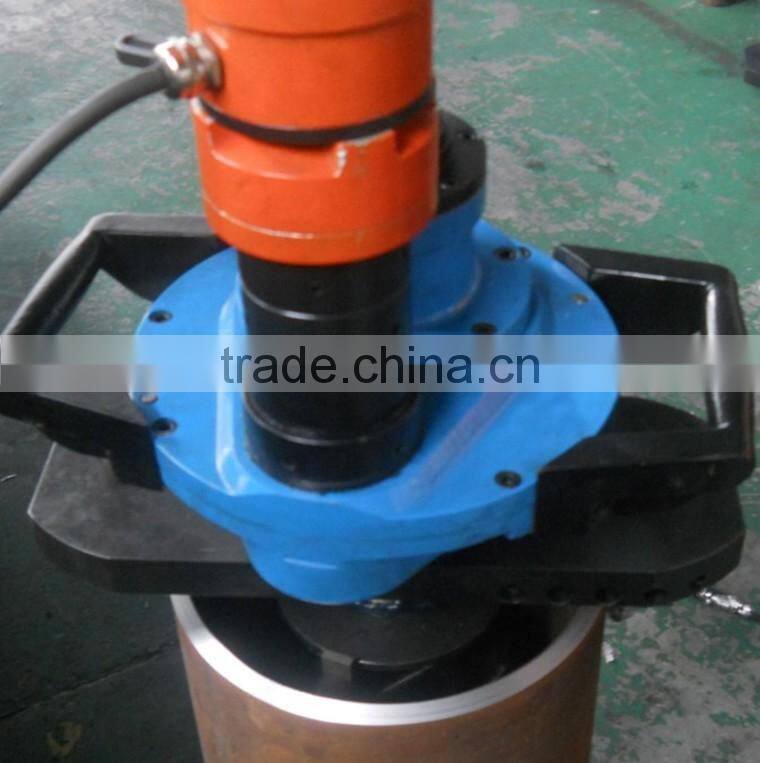

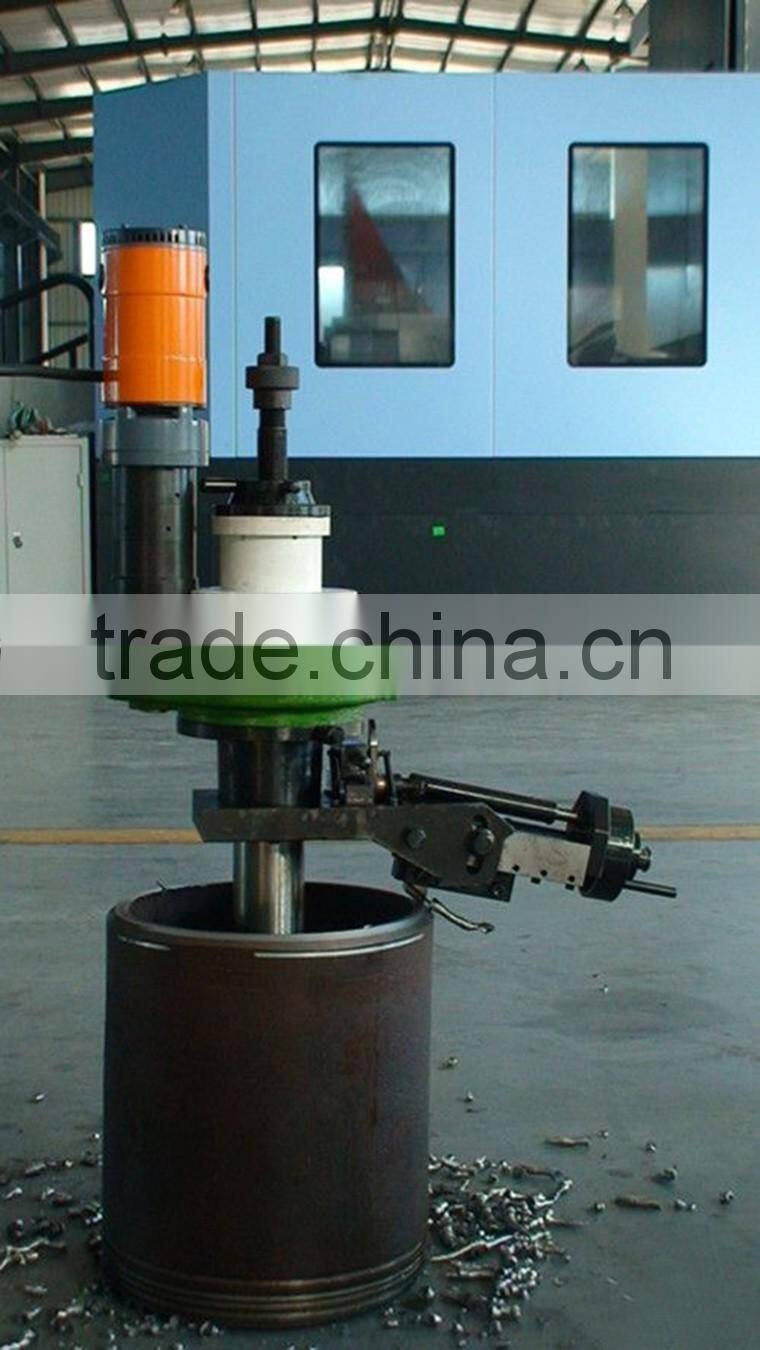

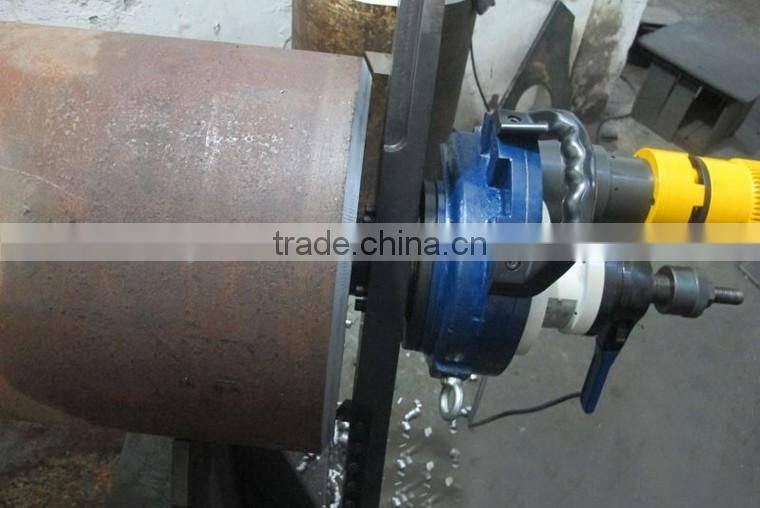

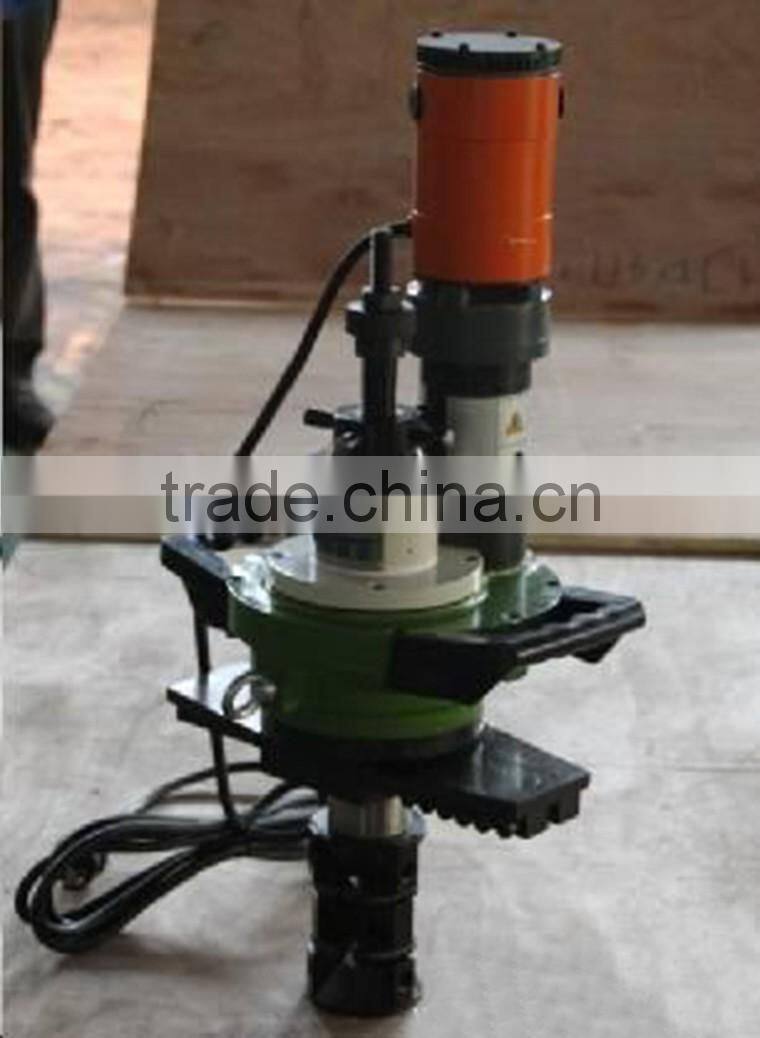

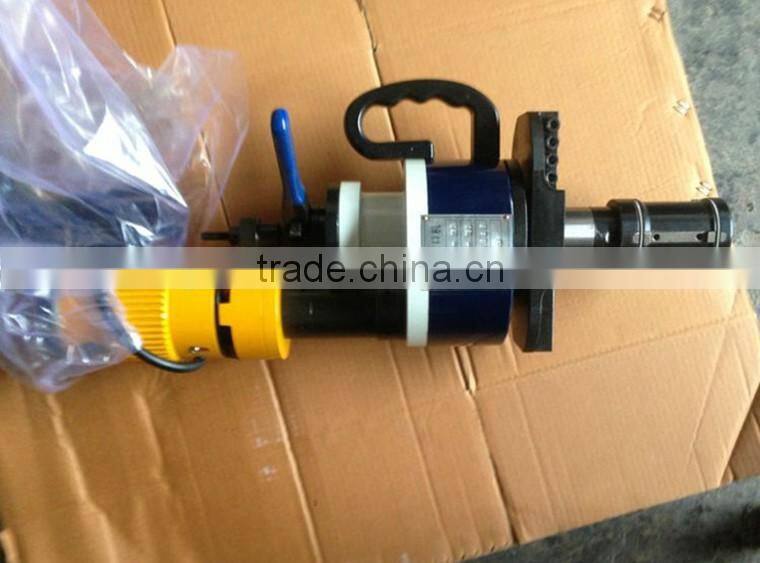

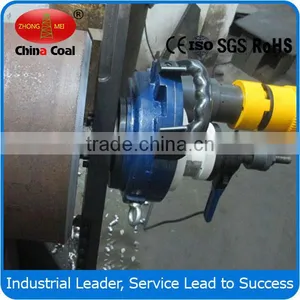

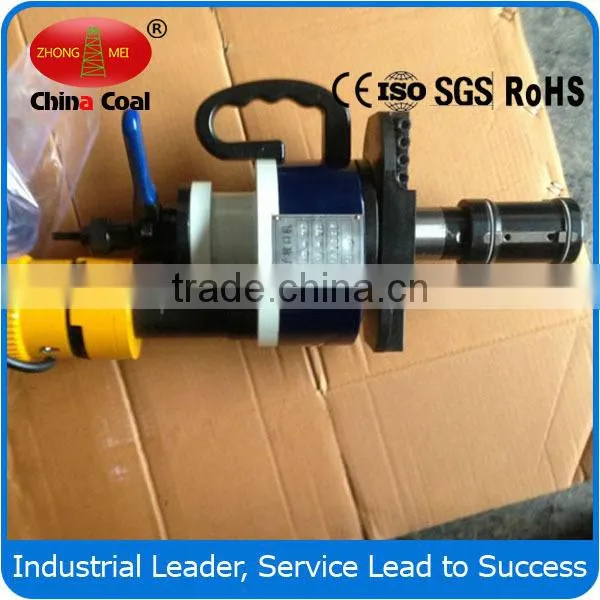

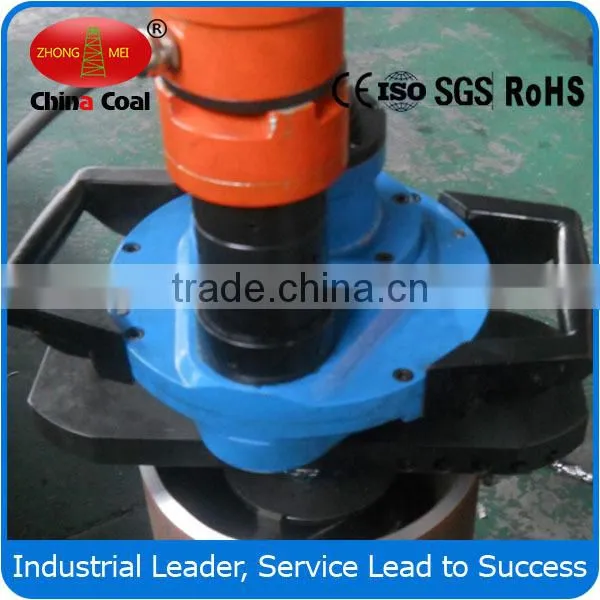

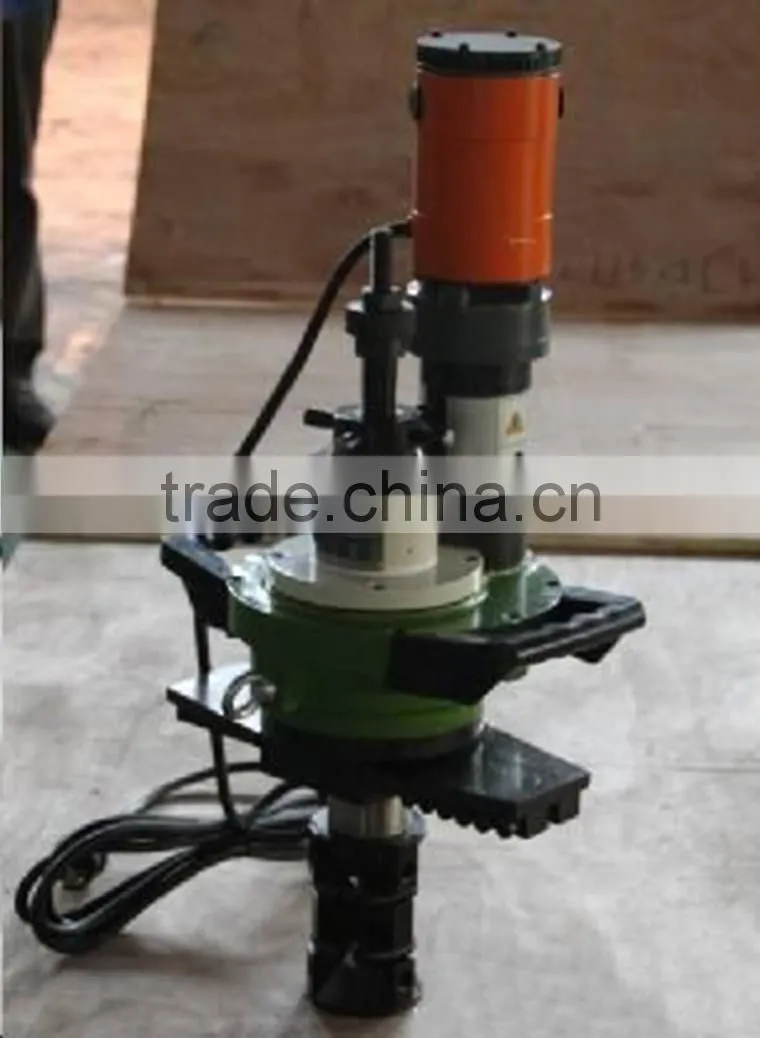

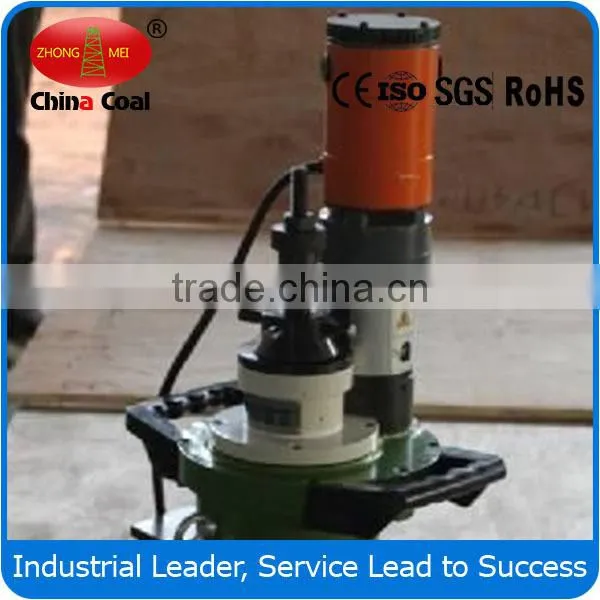

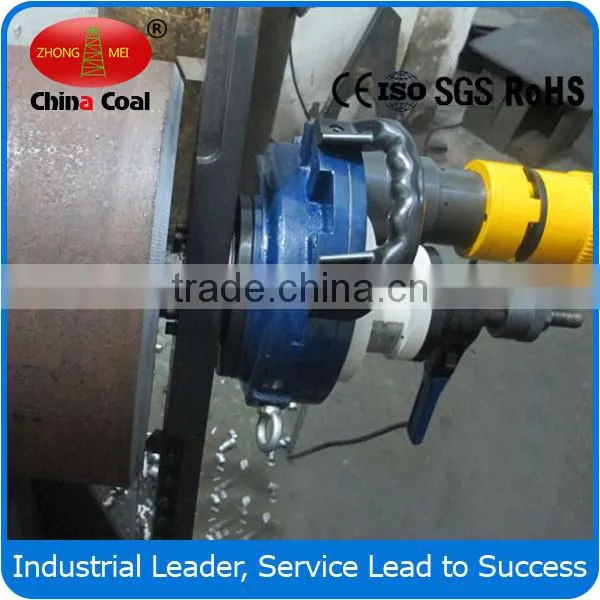

AYI-1200-II pipe cutting and beveling machine
Inner-Mounted Flange Facing Machine, Pneumatic Inner-Mounted Flange Facing Machine, AYI-1200-II Facing Machine
Features:
1. Design for operating and repairing flange.
2. Can Process chute/flume/sealing surface and blank flange tube-plate of heat exchange.
3. Used for Carbon Steel, Stainless Steel, Alloy Steel pipes.
4. Can treat the welded convex flange and plain flange.
5. Will not influence the pipe material.
6. Easy set up & Working Stable.
. Technical Parameter:
1. Rated Pressure: 20MPa
2. Rated flux: 25L/min
3. Hydraulic motor: 160r/min
4. Output torque: 320N.M
5. Electric Motor Power: 7.5KW
6. Electric Motor Rate: 1450r/min
7. Timing range: 0-30r/min
.Package Details

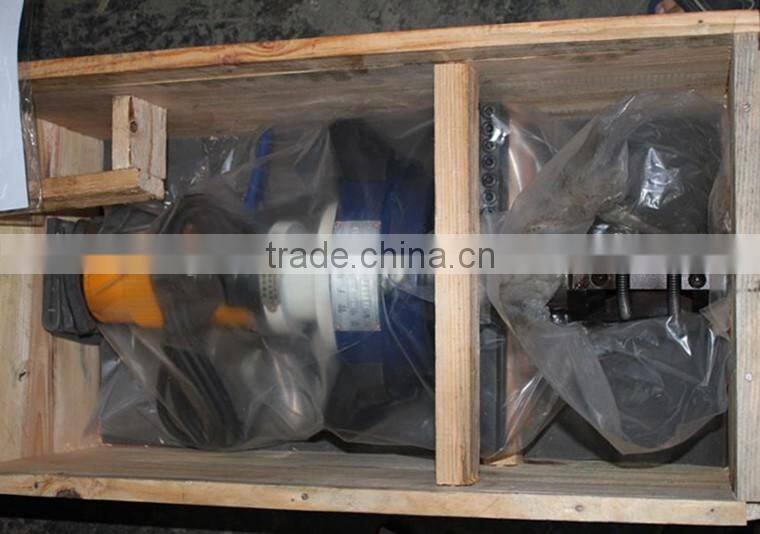

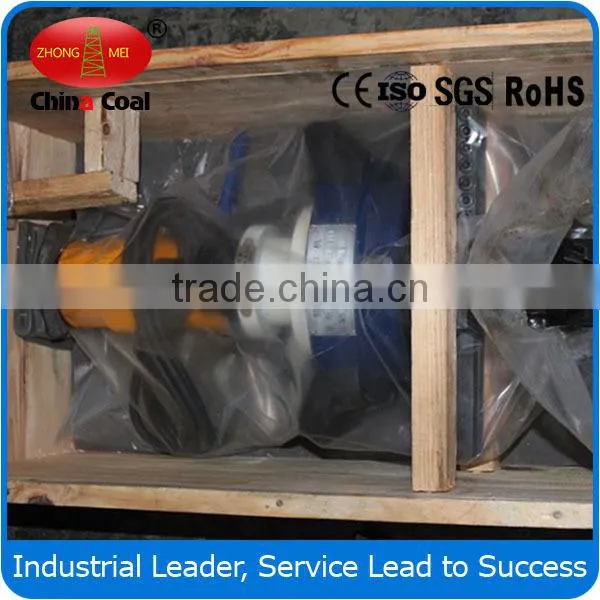

The machine is placed in a portable wooden case with fittings, tool bits and tools for assembly. Our company provides all the important operating tools, refer to thr product parts list for details.
Main Parameter
Hydraulic Model | Pneumatic Model | Working range(O.D mm) | Rotating rate |
HYI-600-II | AYI-600-II | 200-600 | Adjustable |
HYI-1200-II | AYI-1200-II | 600-1200 | Adjustable |
HYI-2000-II | AYI-2000-II | 1200-2400 | Adjustable |
HYI-3000-II | AYI-3000-II | 1800-3000 | Adjustable |
Figure Photos
