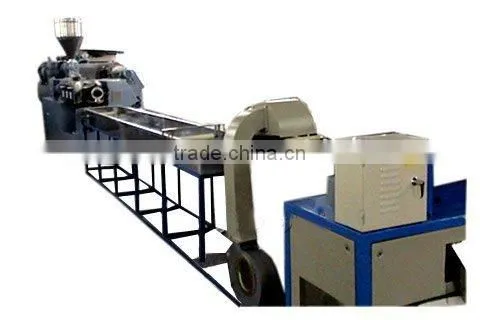

TPU Recycling Machine

Specifications

TPU Product is used in the  fields of  machinery, automobile, textile, chemical, mining, petrochemicals, communications, and so on . Used in the manufacture of cable sheathing, film, breathe waterproof drench film, sheet, high and low voltage control, air bags, seals, dust-proof seals, dust cap, beneficiation sieve plate, cushion, casters, pulley, and others.

     However, the processing requirements of TPU is relatively complex.Almost all the granulator on the current domestic plastics market are impossible for TPU granulating.However, " Conical Cocurrent Twin-Screw Granulator" researched and developed by our company can solve the problem perfectly.

     Products competitive advantages:
      High Yield
      low consumption
      small  noise
       long service life
      National patent inventions
Product introduction:
     "Conical Cocurrent Twin-Screw Granulator" is researched and developed by our company(Patent No.: 2005 1 01189153), of which the technology has been leading the international level!
     The product comprehensively optimized the advantages of the existing 2 kinds of twin-screw models ("Conical Counter Rotating"  and   "Parallel Co Current"), not only keep the character of high extruding pressure of the former, but also reached  the good plastic performance of the latter.  In addition,it reached the effect of higher mixing, higher-kneading, higher plasticizing. The result of several tests proved: the output of this machine is 50% more than other granulators existing on the current market,and the consumption of electricity is above 30% less.Besides,it has the advantages of smaller noise and longer service life of screws.The domestic famous experts once said that the machines may replace the two existing twin-screw granulators,mastering the granulator market.
Take "65-Conical Cocurrent Twin-Screw TPU Granulator" as an example:
I. Technical parameters:
      1. Screw: φ65/φ130, made of 38CrMoAlA, nitride processed, dual- alloy materials in easy-damaged places, making sure the quality and longer service life.
     2. Barrel: 38CrMoAlA with nitride processed.
     3. Output: more than 400 kg / h.
     4. Heating circle: There are 12 water-cooled heating circles.
     5. Filters: use oil-pressure net change installation.
     6. Exhaust installation: use vacuum exhaust system.
     7. Main motor: 75 kw.
     8. Electrical appliances: ABB electrical appliances.
     9. Bearings: Japanese original import bearings.

II.Attached spare parts and tools
     1. Screwdriver: 4
     2. 75 open end wrench: 1
     3. Special copper bar: 1
     4. Inside hexagonal wrench: 1
     5. Exhaust room "O" ring: 3
     6. Special instruments for removing the screw: 1 set
     7. Box wrench 27-30: 1
        Box wrench 36-41: 1
III.  Attached documents
     1. Product qualification certificate
     2. Circuit diagram
     3. Mainframe instruction
     4. Frequency converter instruction
     5. Temperature controller instruction
     6. Pressure cell instruction
IV.The above configuration is only for your reference.

Model   Small dia.  Max yield    Power      Flow    Center height
            d         Qkg/h     kw(kg/h)      q        (Hmm)

SJSZ-25    25      ≥ 50       ≤ 0.12      ≥ 0.55    1000
SJSZ-35    35      ≥ 110      ≤ 0.12      ≥ 1.37    1000
SJSZ-45    45      ≥ 270      ≤ 0.12      ≥ 3.10    1000
SJSZ-55    55      ≥ 410      ≤ 0.12      ≥ 5.80    1000
SJSZ-65    65      ≥ 550      ≤ 0.12      ≥ 8.20    1000
SJSZ-75    75      ≥ 760      ≤ 0.12      ≥ 11.98   1000
SJSZ-85    85      ≥ 850      ≤ 0.12      ≥ 13.70   1000
SJSZ-95    95      ≥ 1060     ≤ 0.12      ≥ 17.09   1000
SJSZ-105   105     ≥ 1250     ≤ 0.12      ≥ 20.16   1000
