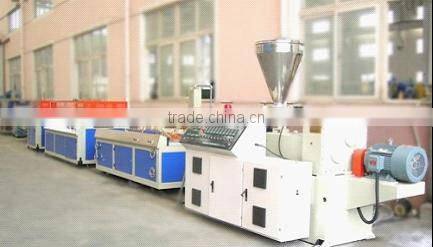

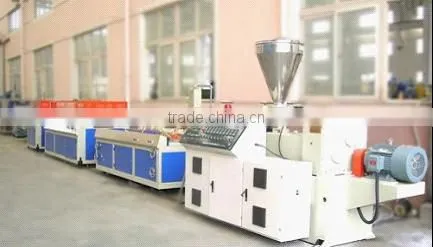

Pvc Door Panel Extrusion Line

Specifications

The set is the new generation equipment for plastics profile extrusion produced by our company introducing the advanced technology of nineties from abroad. It is mainly used to produce the plastics door and window profiles, the plastics decorative plates and PVC foaming profiles.

Main Technical Specifications
Type SY Model 120 small profile Model 240 General-purpose
SY Model 240 Quasi-High Speed SY Model 240A High Speed
Max, Vacuum
-0.096Mpa -0.096Mpa -0.096Mpa -0.096Mpa

Quantity of Vacuum Connect 30 30 40 40
Valid Mold Length of Setting Table/mm 3000/mm 4000/mm 4000-5000/mm 6000-8000/mm
Max, Drawing Force 20kn 30kn 40kn 40kn
Max. Drawing Speed 8/m. Min-1
3/m. Min-1
5/m. Min-1
5/m. Min-1

Crawler Width 200/mm 240/mm 240/mm 240/mm
Valid length of crawler 1600/mm 1800/mm 2250/mm 2400/mm
Water Consumption 2.5/m3. H-1 4/m3. H-1 5/m3. H-1 6/m3. H-1
Gas Consumption 8/m3. H-1
10/m3. H-1
12/m3. H-1
15/m3. H-1

Total Power 24.3/kw 27/kw 33.5/kw 34.7/kw
Appearance Dimension(mm*mm*mm 15100*860*1400
13500*1045*1760
16385*1465*2127
17135*1465*2127
18750*1465*2130
19410*1645*2130
